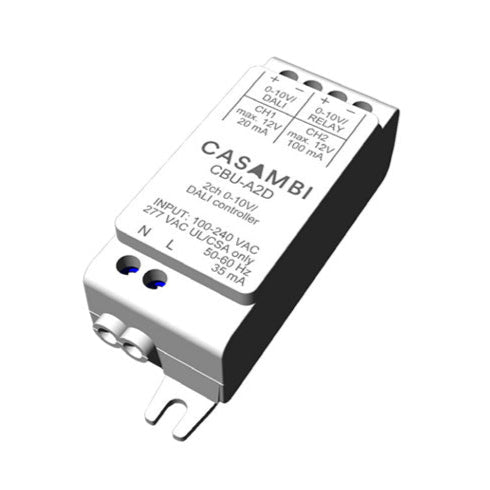

Casambi EL-CBU-A2D Bluetooth Controller
EL-CBU-A2D is a Bluetooth-enabled 2 channel 0-10V/DALI controller. It has a universal 100-277 VAC input voltage range.
The CBU-A2D can control one or two 0-10V controllable LED drivers, or it can control a tunable white LED driver with two 0-10V control interfaces. The product can also be configured into a DALI mode where it can be connected to a DALI LED driver or DALI sensor for the presence and/or daylight harvesting functions.
It can be controlled with Casambi app which can be downloaded free of charge from the Apple App Store and Google Play Store.
Different Casambi enabled products can be used from a simple one luminaire direct control to a complete and full-featured light control system where up to 250 units form automatically an intelligent mesh network.
Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with the lighting plan or installation instructions.
Key Features
- Casambi enabled 2 channel 0-10V/DALI controller
- Universal 100- 277 VAC input voltage range
- Control one or two 0-10V controllable LED drivers, or it can control a tunable white LED driver with two 0-10V control interfaces
- The product can also be configured into a DALI mode where it can be connected to a DALI LED driver or DALI sensor for presence and/or daylight harvesting functions
Applications
- Custom Lighting Control
Specifications
View Spec Sheet-
Voltage Range
100-240 VAC (CE/UL/CSA)
277 VAC (UL/CSA only)Frequency
50-60 HzMax. mains current
35 mANo-load standby power
< 0,5 WChannel 1 output
Output voltage, 0-10V 0-10 VDC, max. 7 mA (sinking)
Output voltage, DALI 12 VDC, max. 20 mA (sourcing)
Maximum number of drivers: 1 driver + 1 sensor/push buttonChannel 2 output
Output voltage, 0-10V: 0-10 VDC, max. 7 mA (sinking)
Output voltage, relay control: 12 VDC, max. 100 mA (sourcing)
Maximum number of drivers: 1Dimensions
76,0 x 26,0 x 23,0 mm
3.0 x 1.0 x 0.9 inchProtection IP20
Built-in Class II
