LED 30 Degree Wall Grazer Aluminum Channel
SKU EL-CH-034
Original price
$21.61
-
Original price
$21.61
Original price
$21.61
$21.61
-
$21.61
Current price
$21.61

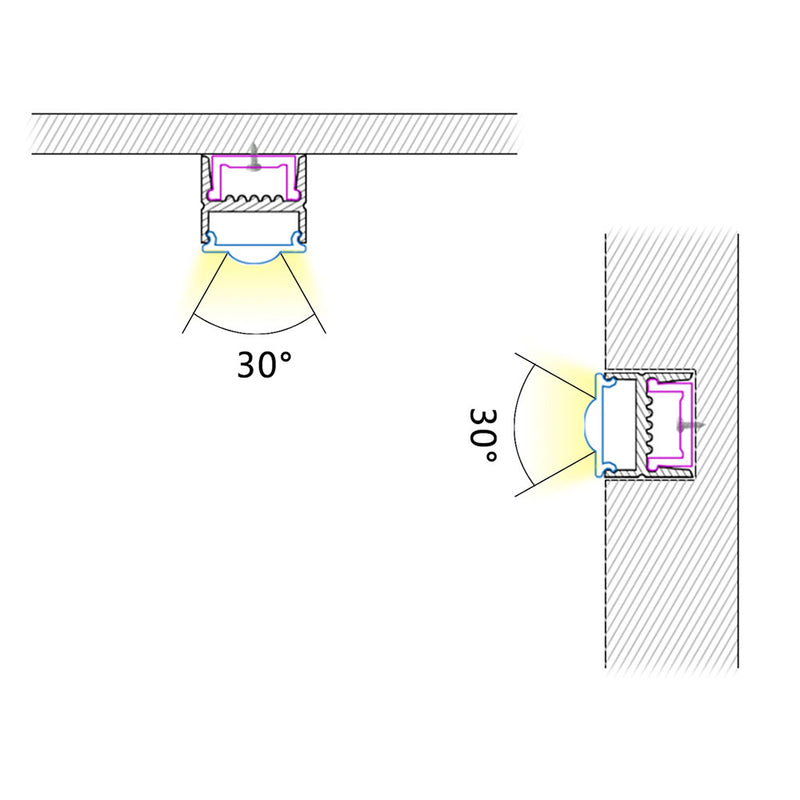

LED 30 Degree Wall Grazer Aluminum Channel includes our aircraft-grade aluminum channel and compatible curve-shaped 30-degree beam angle clear lens. Creating a rigid, modern, and sleek style LED strip light installation has never been easier.
Key Features
- It comes in 2-meter (78.74 in) sections and can be custom cut to any length.
- 19.6 mm wide by 17.7 mm height.
- Perfect for mounting LED Strip Light up to 16 mm in width.
- Rigid and dustproof housing can be recessed or surface mounted.

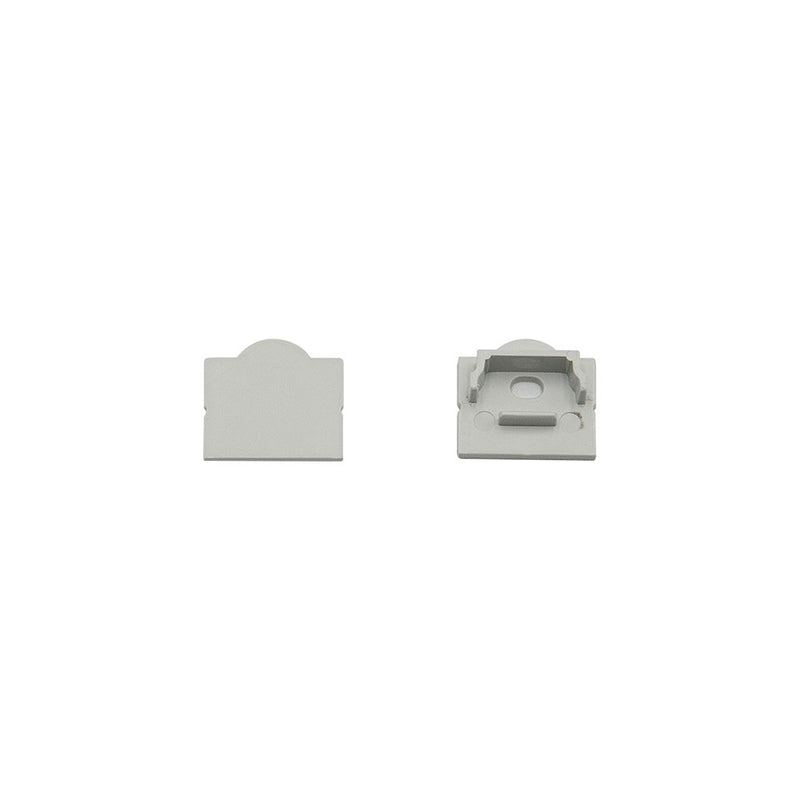

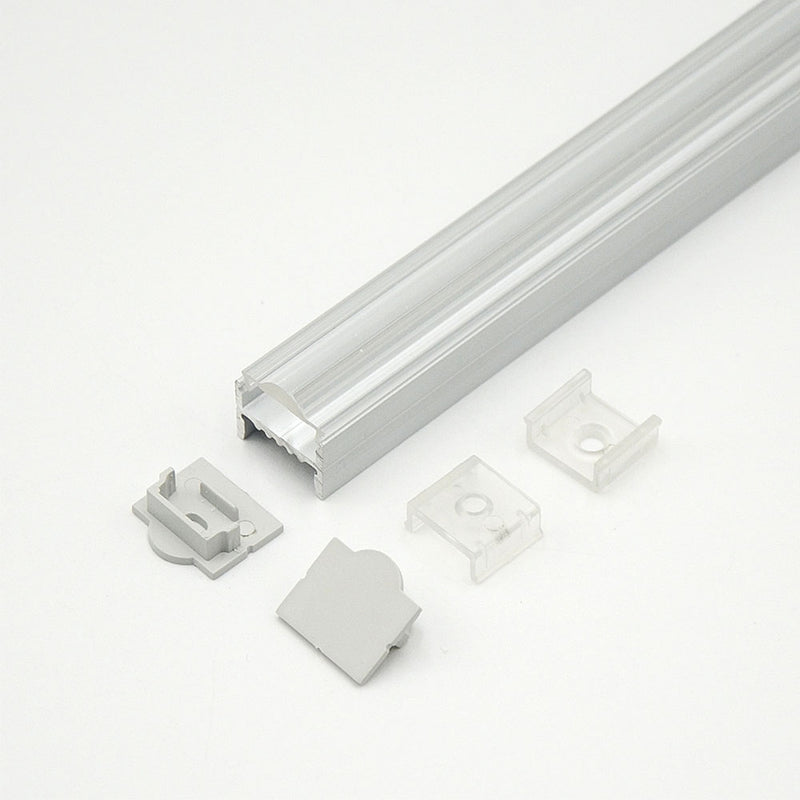

- Includes aluminum channel, clear diffuser, 2 mounting clips, and 2 end caps.

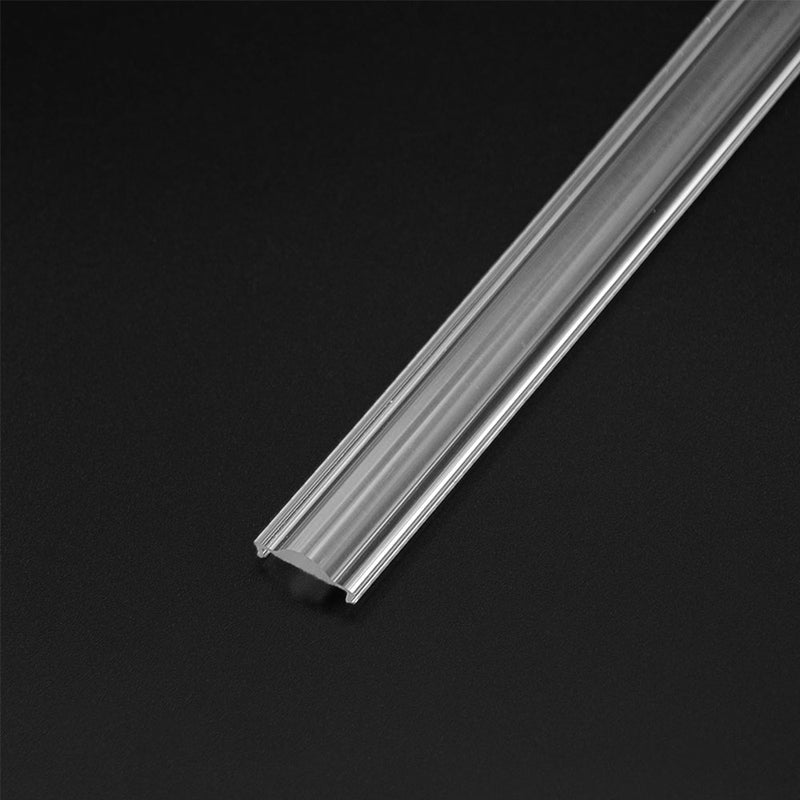

- The channel lens protects LED strip light from the environment and creates diffused lighting effects. Easy to install, simply clip the diffuser lens into the aluminum channel.
- LED Aluminum Mounting Channels do not qualify for Free Standard Shipping offer. Additional shipping charges will be billed separately.
- Aluminum channels are not returnable due to the packaging and shipping costs.
Applications
- For use with LED Strip lights up to 16 mm in width.
Specifications
| Channel Height | 0.69 in / 17.7 mm thick |
|---|---|
| Inside Width | 0.65 in / 16.4 mm wide |
| Outside Width | 0.77 in / 19.6 mm wide |
| Length | 78.74 in (2 m) Long |
| LED Strip Width | 16 mm |
| Lens Finish | Clear |
| Environment | Indoor Use - Dry Location |
| Channel Finish | Aluminum |
| Manufacturer | Elumalight |
