LED 60 Degree Wall Grazer Aluminum Channel

Original price $22.36 - Original price $22.36
Original price
$22.36 - $22.36
Current price $22.36

LED 60 Degree Wall Grazer Aluminum Channel includes our aircraft-grade aluminum channel and compatible curve-shaped 60-degree beam angle clear lens. Creating a rigid, modern, and sleek style LED strip light installation has never been easier.

Key Features

  • It comes in 2-meter (78.74 in) sections and can be custom cut to any length.
  • 17 mm wide by 13.7 mm height.
  • Perfect for mounting LED Strip Light up to 11 mm in width.
  • Rigid and dustproof housing can be recessed or surface mounted.

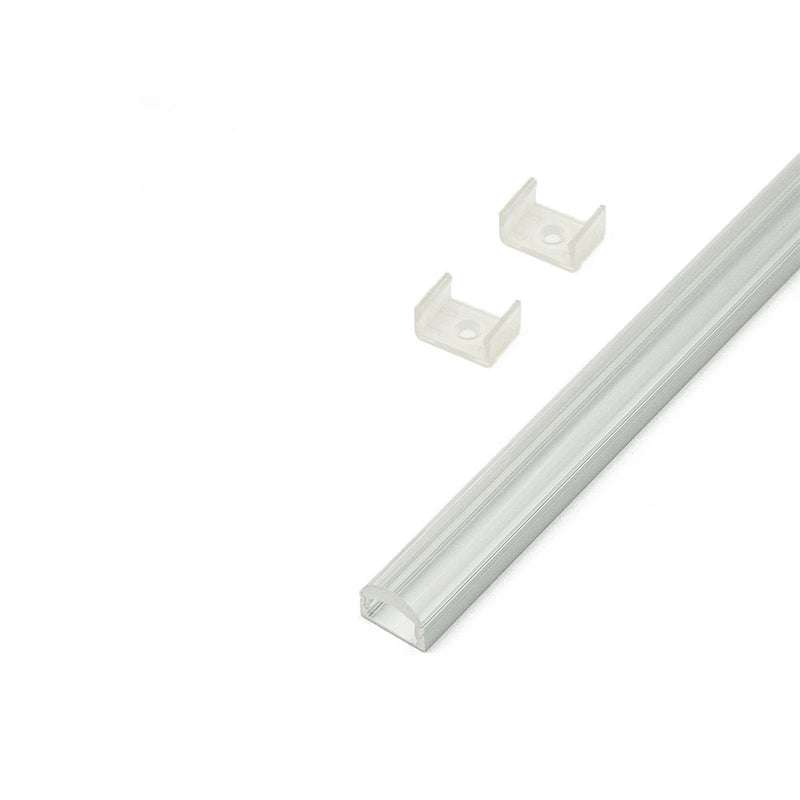

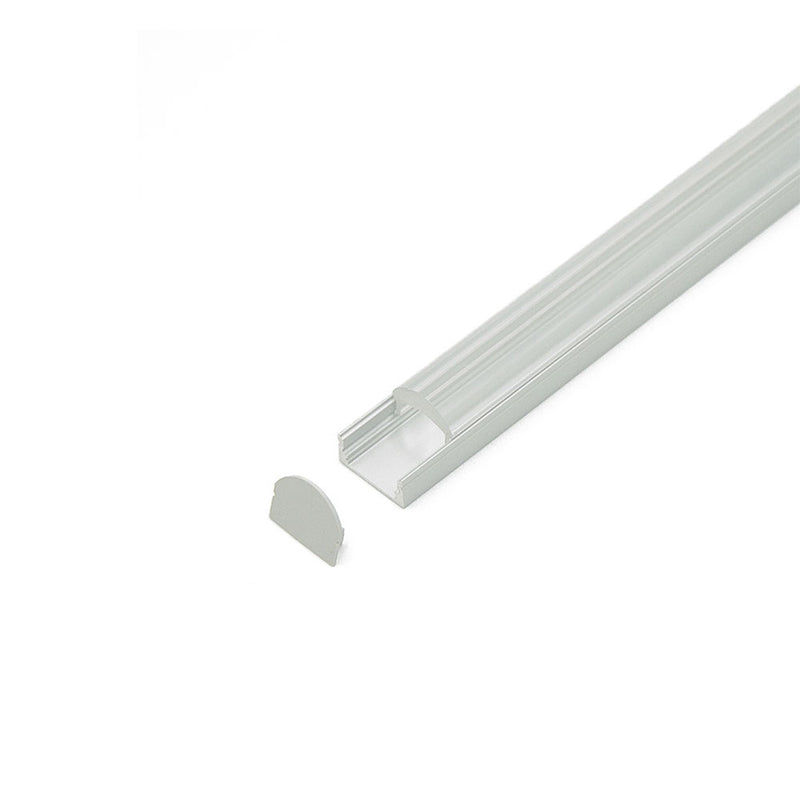

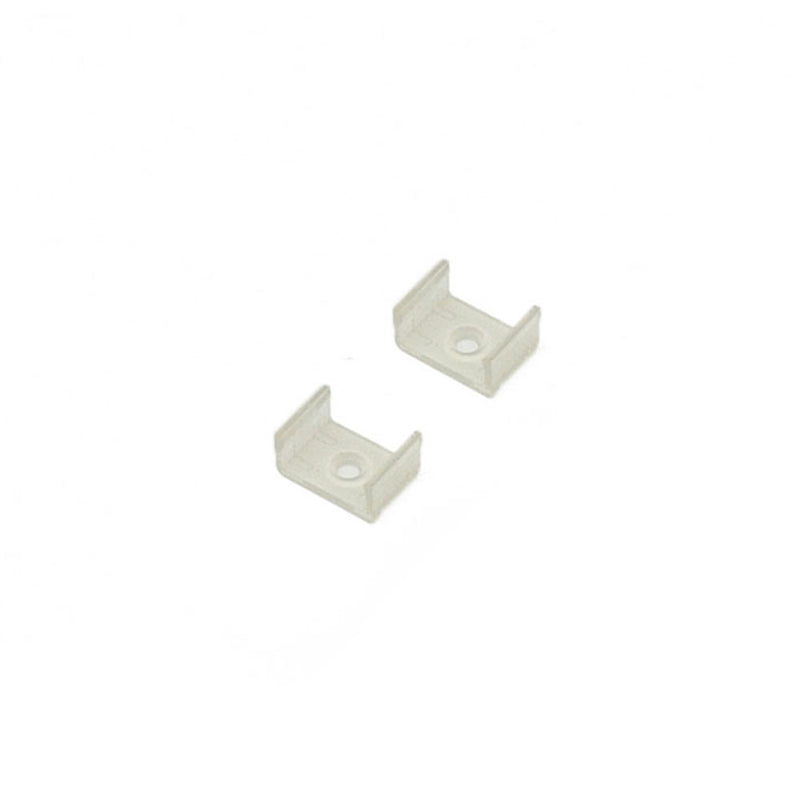

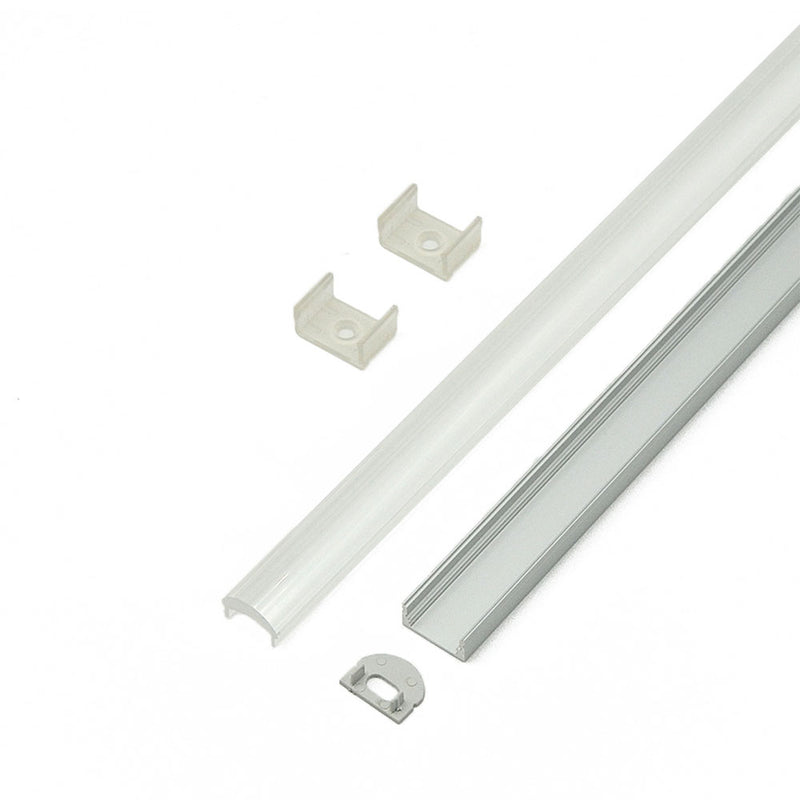

  • Includes aluminum channel, clear diffuser, 2 mounting clips, and 2 end caps.
  • The channel lens protects LED strip light from the environment and creates diffused lighting effects. Easy to install, simply clip the diffuser lens into the aluminum channel.
  • LED Aluminum Mounting Channels do not qualify for Free Standard Shipping offer. Additional shipping charges will be billed separately.
  • Aluminum channels are not returnable due to the packaging and shipping costs.


  • For use with LED Strip lights up to 11 mm in width.


View Spec Sheet

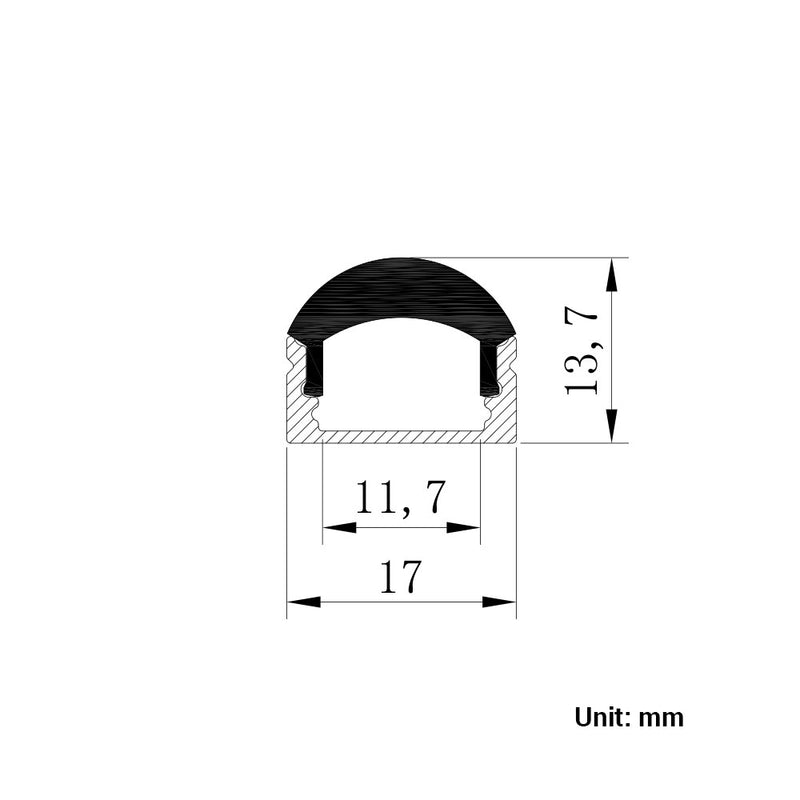

Channel Height 0.54 in / 13.7 mm thick
Inside Width 0.46 in / 11.7 mm wide
Outside Width 0.67 in / 17 mm wide
Length 78.74 in (2 m) Long
LED Strip Width 11 mm
Lens Finish Clear
Environment Indoor Use - Dry Location
Channel Finish Aluminum
Manufacturer Elumalight
