LED Full Angle Aluminum Channel 30 x 30
SKU EL-CH-3030
Original price
$31.50
-
Original price
$31.50
Original price
$31.50
$31.50
-
$31.50
Current price
$31.50

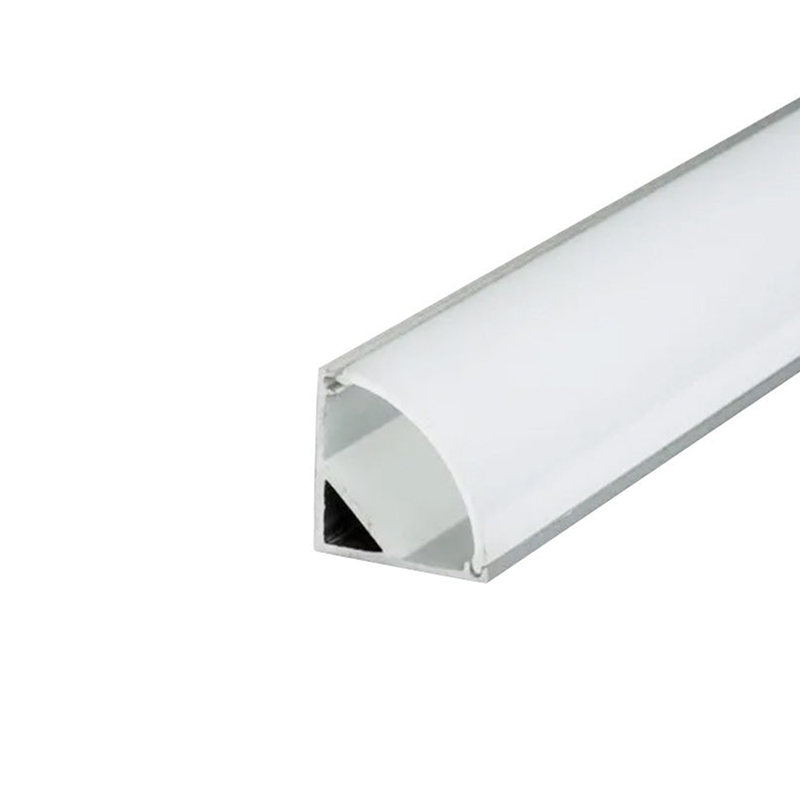

LED Full Angle Aluminum Channel 30 x 30 includes our v-shaped aircraft-grade aluminum channel and compatible frosted or opal white lens. Creating a rigid, modern, and sleek style LED strip light installation has never been easier.
Key Features
- It comes in 2-meter sections and can be custom-cut to any length.

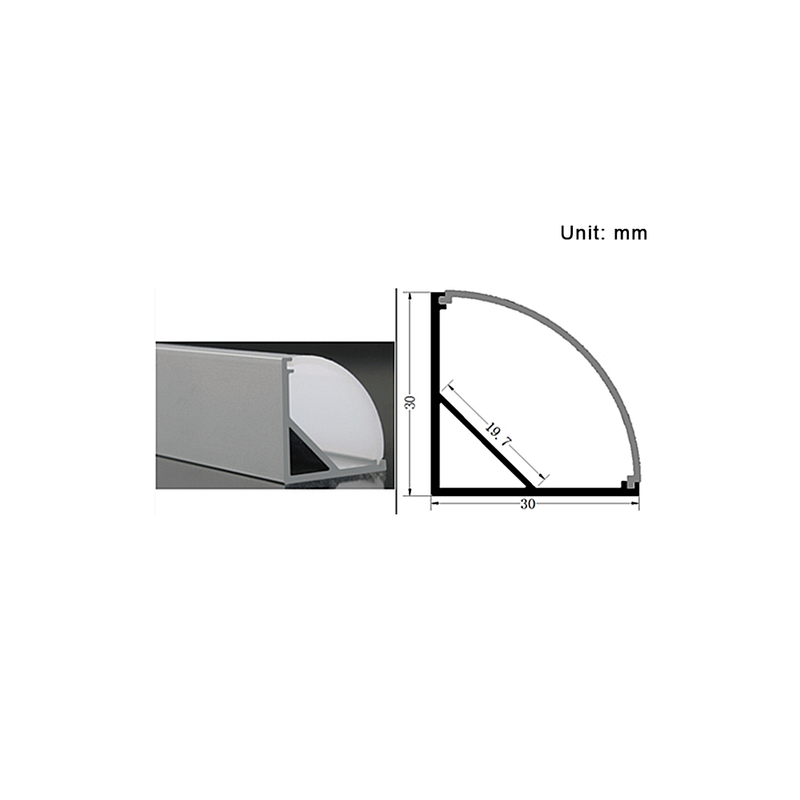

- 30 mm wide by 30 mm height.
- Perfect for mounting LED Strip Lights up to 19.7 mm in width.
- V-shaped for angled or corner lighting applications.

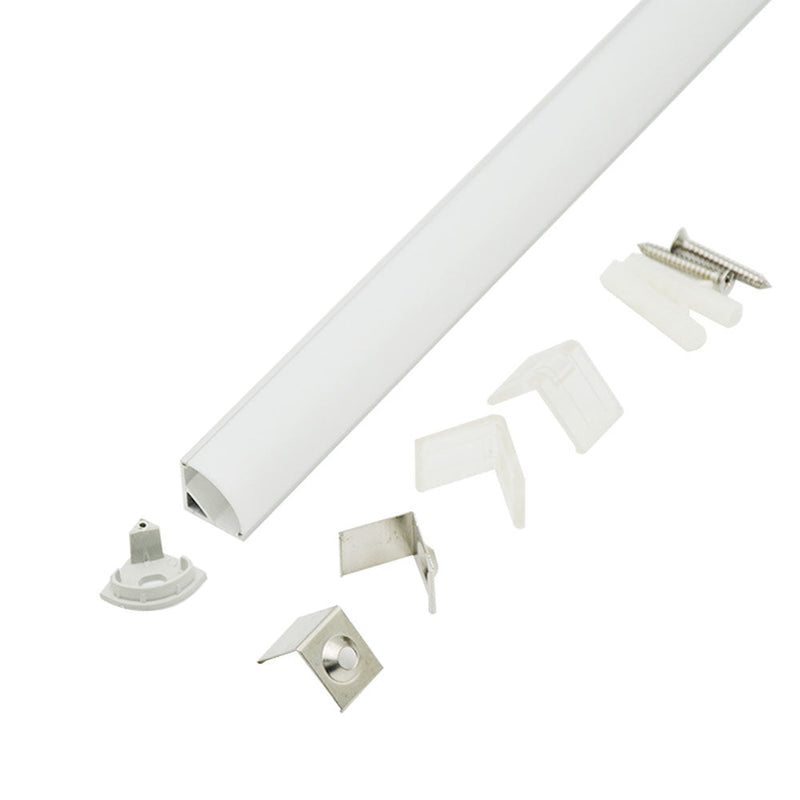

- Includes aluminum channel, opal diffuser, 2 mounting clips, and 2 end caps.
- The Channel lens protects LED strip light from the environment and creates diffused lighting effects. Easy to install, simply clip the diffuser lens into the aluminum channel.
- The rigid and dustproof channel can be mounted onto any flat surface.
- LED Aluminum Mounting Channels do not qualify for the Free Standard Shipping offer. Additional shipping charges will be billed separately.
- Aluminum channels are not returnable due to the packaging and shipping costs.
Applications
- For use with LED Strip lights up to 19.7 mm in width.
Specifications
| Channel Height | 1.18 in / 30 mm thick |
|---|---|
| Inside Width | 0.78 in / 19.7 mm wide |
| Outside Width | 1.18 in / 30 mm wide |
| Length | 78 in / 2 meters long |
| LED Strip Width | 19.7 mm |
| Lens Finish | Opal White |
| Environment | Indoor Use - Dry Location |
| Channel Finish | Aluminum |
| Manufacturer | Elumalight |
Old SKU: ST-H110
