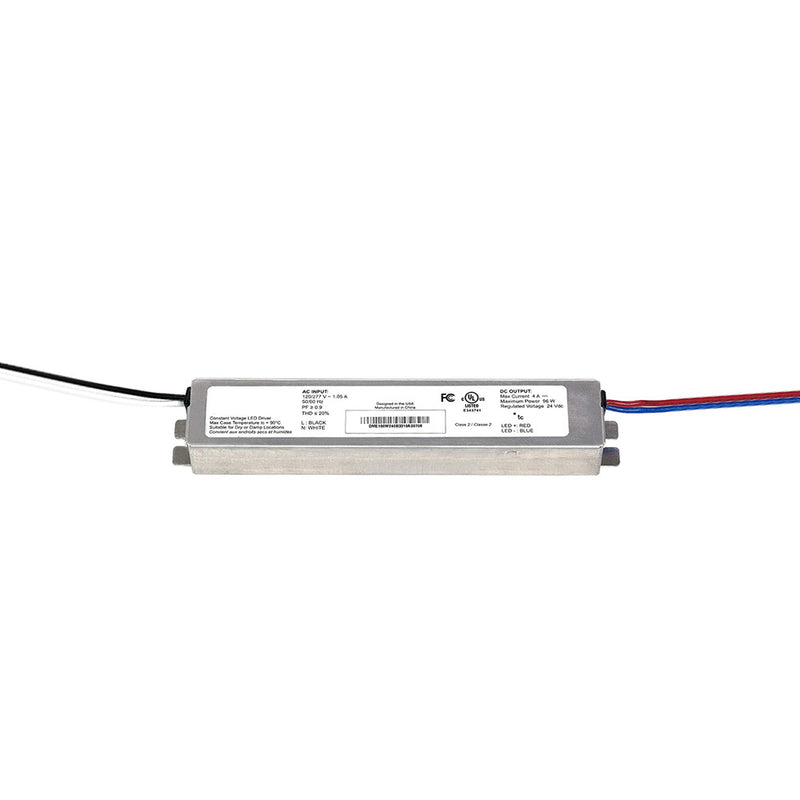

12V DC or 24V DC EL-VLM Series Dimmable Constant Voltage LED Drivers

12V DC or 24V DC EL-VLM Series Dimmable Constant Voltage LED Drivers

SKU EL-VLM60W-12
$45.50 - $63.70
$45.50
$45.50 - $63.70
$45.50

The EL-VLM series LED Dimmable Constant Voltage drivers are available in 12V DC or 24V DC. It is highly efficient, low heat emission, and compact. They are engineered to deliver reliable power to your low-voltage LED lighting.

Need help with your LED lighting power supplies? Our lighting experts are here to help! Contact us today for assistance with the lighting plan or installation instructions.

Key Features

  • Small Factor LED Drivers
  • Rated Class II
  • Easy installation
  • Maintenance-free
  • Overload, short circuit, and overheat protection
  • UL Class P
  • IP20 Rated Case
  • Long lifespan 50,000 hours min.
  • Complies with ENERGY STAR®, DLC (DesignLight Consortium®), and CA Title 24 technical requirements
  • Worldwide safety approvals

Applications

  • For use with compatible Dimmers and 12V or 24V DC LED lighting

Specifications

  • View Spec Sheet
  • Input: 120 / 277V AC
  • Output Voltage: 12V DC or 24 V DC
  • Power: 60W or 96W options
  • Dimmable: Yes, PWM
  • Over Load Protection: Yes
  • Over Temperature Protection: Yes
  • Short Circuit Protection: Yes
  • Power Method: Hardwire
  • 60W Drivers Dimensions: 5.12 in. L x 0.78 in. W x 0.94 in. H

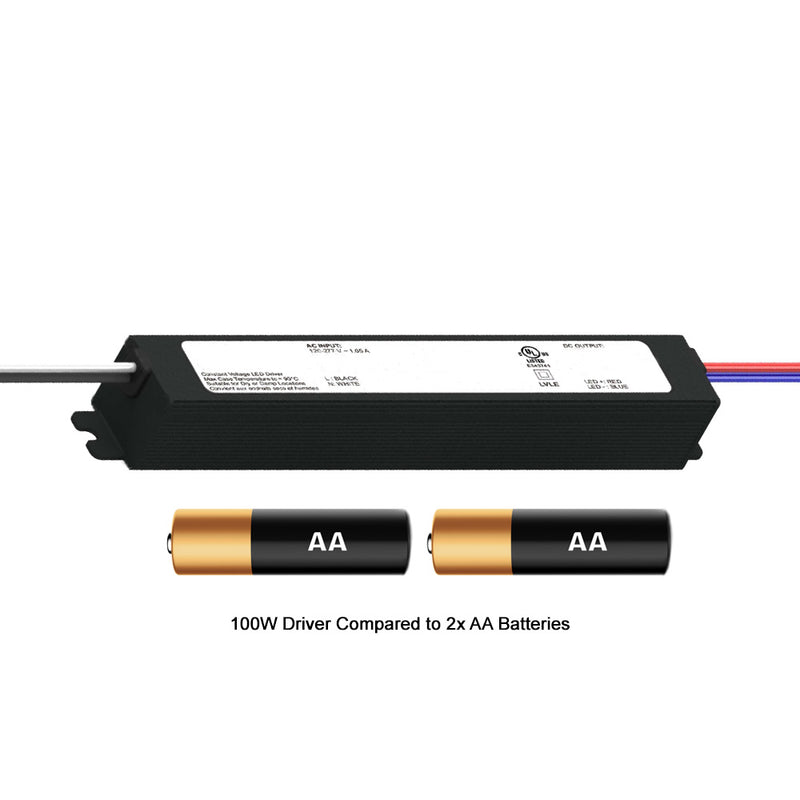

  • 100W Drivers Dimensions: 5.39 in. L x 1.03 in. W x 0.78 in. H
  • Environment: Dry Location
  • IP Rating: IP20
  • Rating: UL, DLC, CA Title 24
  • Warranty: 5 years
