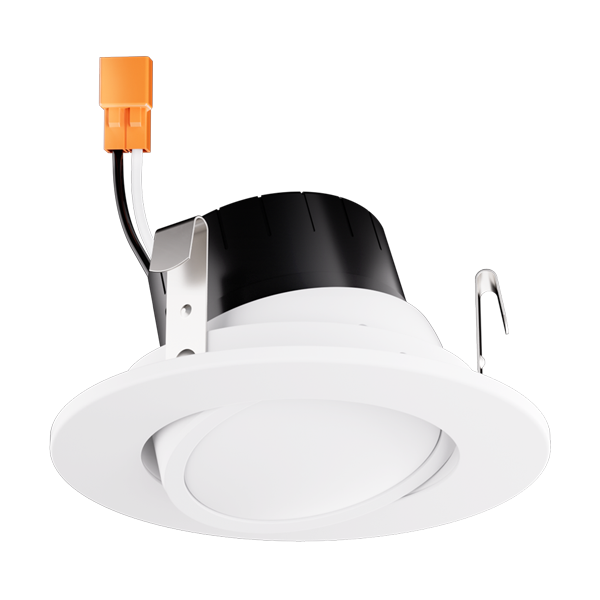

3 in. LED Round Gimbal Downlight

$29.00
SKU EL-313-30K-WH

The 3 in. LED Round Gimbal downlight insert is engineered with energy-efficient LED technology that produces even illumination with an incredible 93+ CRI. Designed to be used for New Construction, Remodel, and Retrofit applications, these inserts are rated for a life up to 50,000 hours, and meet the Title 24 and Energy Star requirements. Suitable for IC and Non-IC housings.

The best choice for simple exhibit and display lighting projects. It produces even illumination without diode image. The low profile unit is CA Title 24 compliant, meets ENERGY STAR requirements, and UL wet listed. It produces 700 lumens. Available in White finish.

Need help with your LED lighting projects? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.

Key Features

  • Easy to Install
  • Even Lighting Illumination
  • Low-heat dissipation
  • Die-Cast construction provides lasting durability
  • 25° tilt, 358° rotation
  • CA Title 24, ENERGY STAR®, JA8-2016-E
  • Life Span of 50,000 hours L70

Applications

  • LED Bathroom Lighting
  • Residential Ceiling Down Lighting
  • Commercial Ceiling Down Lighting
  • Living Room Lighting
  • Office Lighting
  • Home Theater LED Lights
  • LED Kitchen Lighting
  • Pot Lights

Specifications

 View Spec Sheet

Brightness 700 Lumen
Power (Watts) 9 Watt
Voltage 120V AC
LED CCT 3000K
Color Range Index (CRI)
93+
Dimmable
Yes, with compatible Triac/ELV Dimmer
Environment Wet or Dry Location
Aperture
3 in / 76.2 mm
Diameter
4.375 in / 111.13 mm
Height
2.06 in / 52.32 mm
Finish White
Manufacturer Elumalight
Rating Energy Star, cULus Wet Listed, CEC Title 24, Meets ASTM-E283 Airtight Requirements
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty
5 Year Limited
