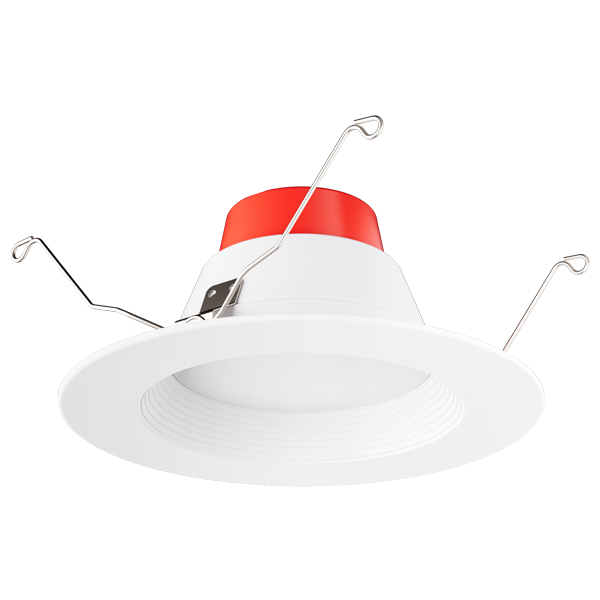

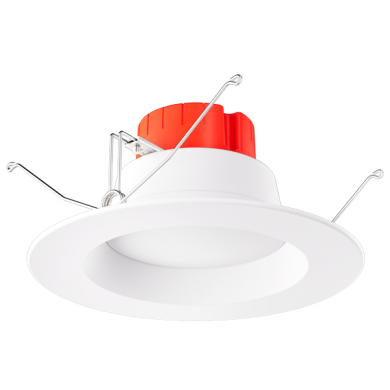

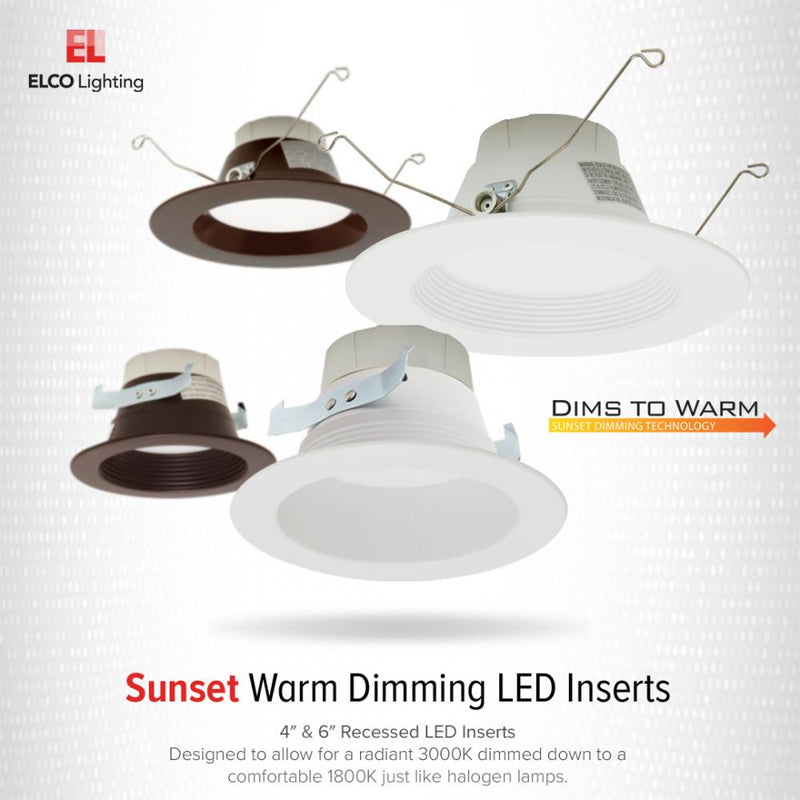

5 or 6 in. LED Dims to Warm Round Downlights

SKU EL-610SDW
Original price $16.00 - Original price $24.14
Original price
$16.00
$16.00 - $24.14
Current price $16.00

Step 1 Dezigns 5 or 6 in. LED Dims to Warm Round Downlights are engineered with energy-efficient LED technology that produces even illumination with an incredible 90+ CRI. Designed to be used for New Construction, Remodel, and Retrofit applications, these inserts are rated for a life of 50,000 hours, and meet the Title 24 and Energy Star requirements. Suitable for IC and Non-IC housings. Available in Baffle or Reflector trim options.

Need help with your LED lighting projects? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.

Key Features

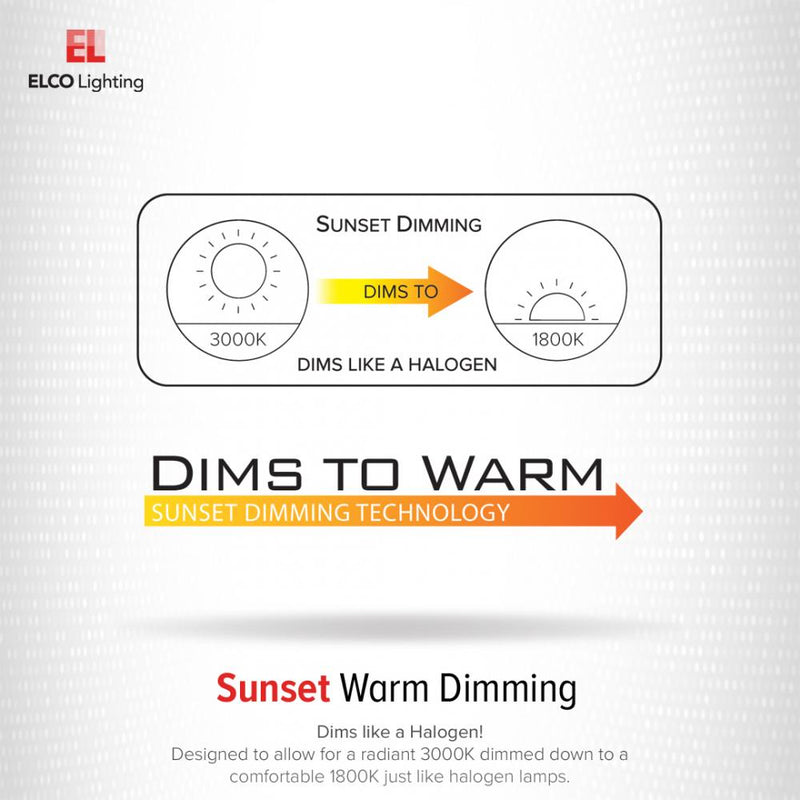

  • Dims from a bright 3000K to a warm 1800K
  • Fits 5" or 6′′ Dedicated LED Recessed Housings, Regular and Shallow
  • Includes Medium Base Adapter for retrofitting existing E26 Base housings
  • Soft white lens provides smooth lumen distribution and eliminates LED pixelation
  • Deep set LED trim reduces glare while providing area illumination.
  • CA Title 24, ENERGY STAR, JA8-2016-E
  • Life Span of 50,000 hours L70

Applications

  • LED Bathroom Lighting
  • Residential Ceiling Down Lighting
  • Commercial Ceiling Down Lighting
  • Living Room Lighting
  • Office Lighting
  • Home Theater LED Lights
  • LED Kitchen Lighting
  • Pot Lights

Specifications

View Spec Sheet

Brightness 700 Lumen
Power (Watts) 10 Watt
Voltage 120V AC
LED CCT Dims to Warm 3000K-1800K
Beam Angle 90°
Color Range Index (CRI)
90+
Dimmable
Yes, Triac/ELV
Environment Dry or Wet Location

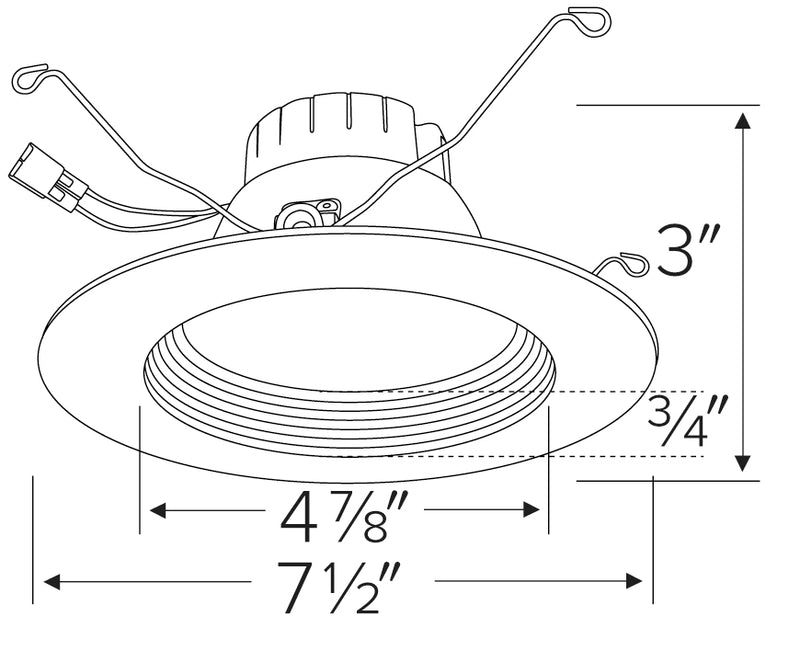

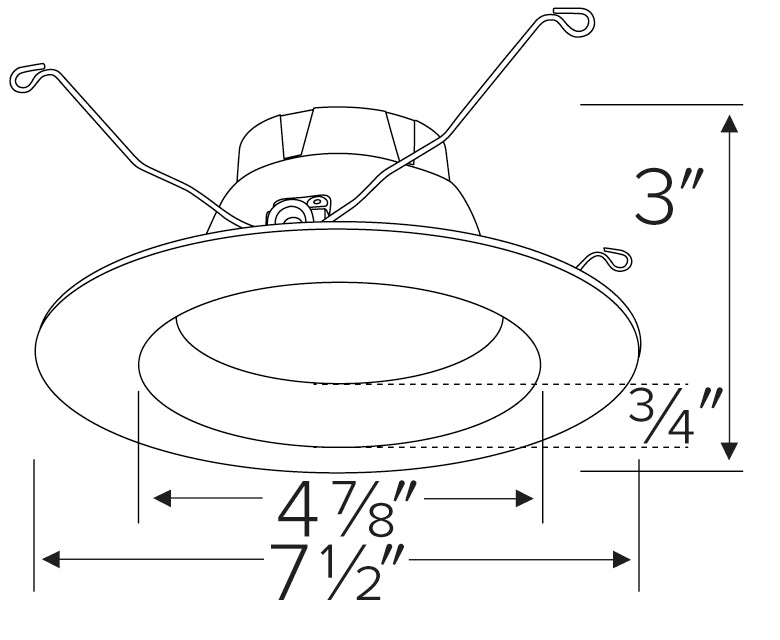

Aperture
4.875 in / 123.83 mm
Diameter
7.5 in / 190.5 mm
Height
3 in / 76.2 mm
Trims
Baffle or Reflector

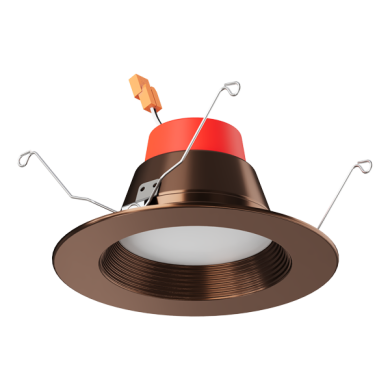

Finish White or Bronze
Manufacturer Elumalight
Rating  UL Listed for Wet Location. RoHS Compliant. ENERGY STAR® Certified. California Title 24 JA8-2016-E.
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty
5 Year Limited
