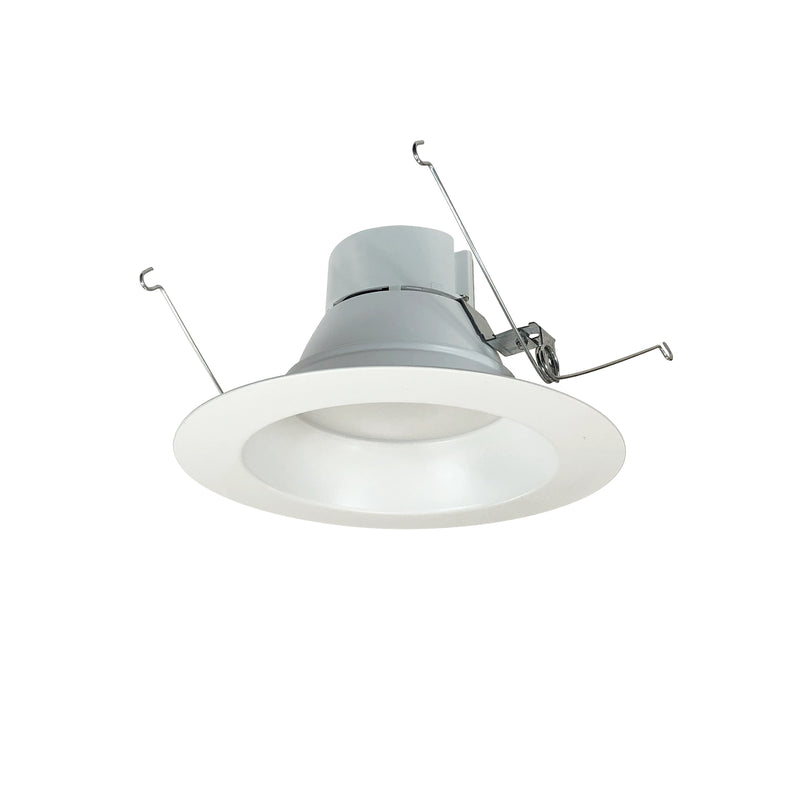

5 or 6 in Onyx Tunable White LED Retrofit Downlights

Onyx 5 or 6 in. Tunable White Retrofit Series include an integral tunable CCT switch. Spun aluminum construction provides clean sharp edges and is suitable for use with most 5″ and 6″ recessed housings. Deep regressed optics and round aperture deliver even and glare-free illumination. Available in Baffle or Reflector trims with Black or White finish. Contact us to order additional accessories. See the spec sheet for more details.

Key Features

• Selectable (2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI)
• Integral dimmable driver
• Recessed mount into 5″/6″ housing. Includes medium base socket adapter for easy retrofitting in 5″/6″ recessed housings.
• Quick connector is compatible with dedicated LED housings. Required by some codes in recessed can applications or to meet energy rebate program requirements.
• Accepts baffle or reflector insert accessories

Applications

• LED Bathroom Lighting
• Residential Ceiling Down Lighting
• Commercial Ceiling Down Lighting
• Living Room Lighting
• Office Lighting
• Home Theater LED Lights
• LED Kitchen Lighting
• Pot Lights

Specifications

View Spec Sheet

• Lumens / Wattage: Up to 1100lm / 15.5W
• Color Temperature: Selectable CCT (2700K / 3000K / 3500K / 4000K / 5000K)

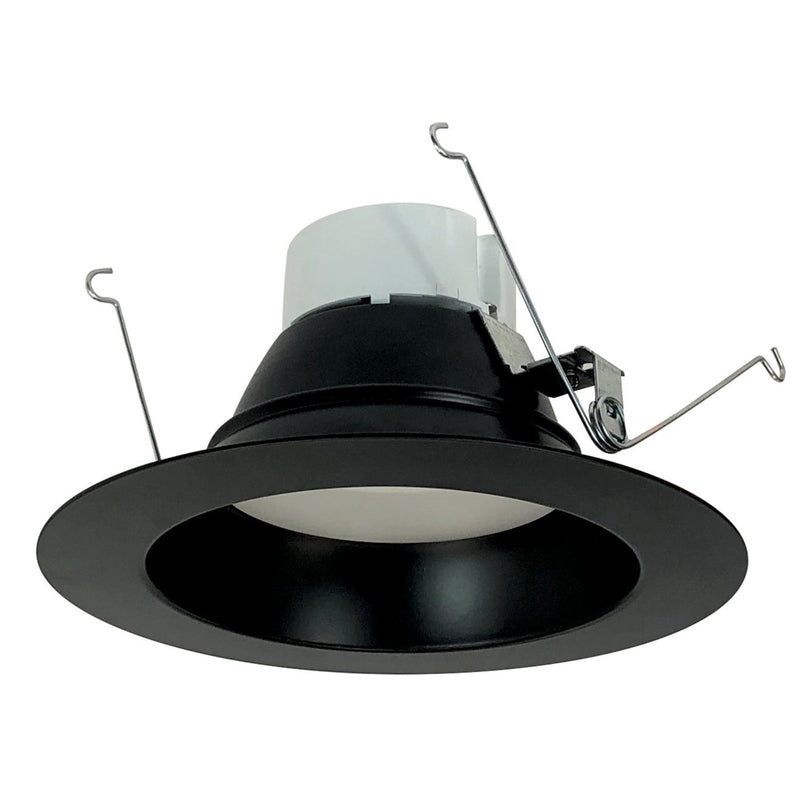

• Finishes: Black Reflector / Black Flange or White Reflector / White Flange
  Note: Reflector accepts baffle or reflector inserts for additional appearances
• Dimming: Triac or ELV
• Family: Onyx
• Light Source: LED
• Aperture Size: 5, 6 in
• Construction Type: Retrofit, Shallow
• Options: ENERGY STAR certified, Wet Location
• Accessories:

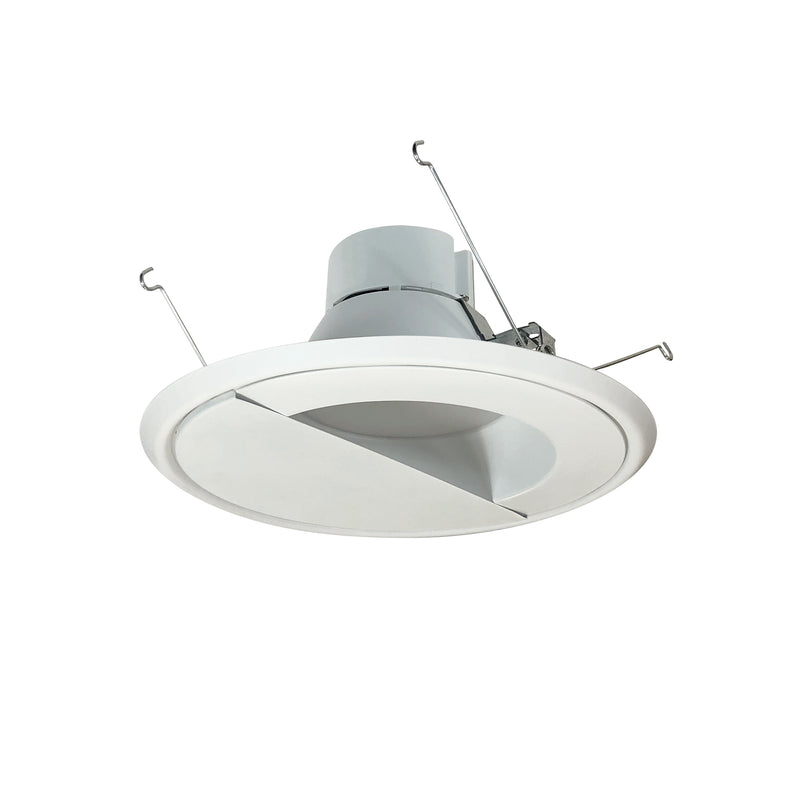

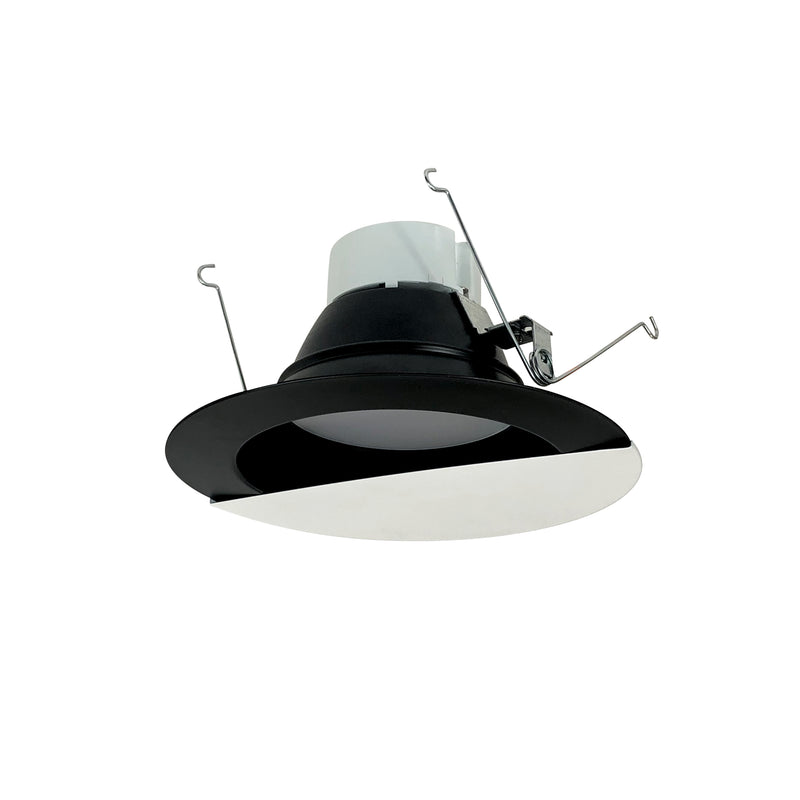

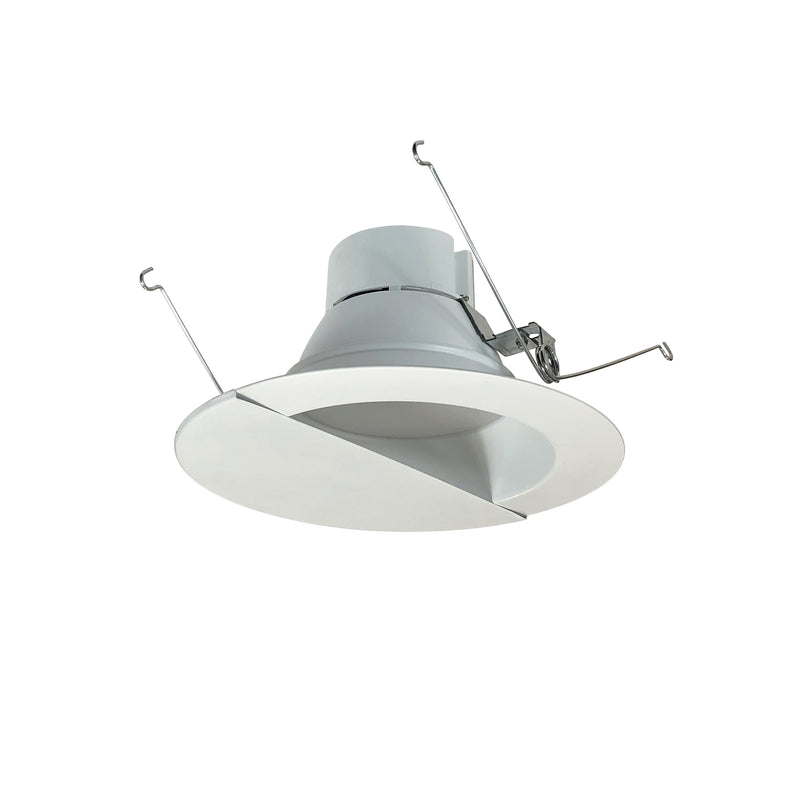

  NOX-56EYELID: 5″/6″ Round Eyelid for Onyx

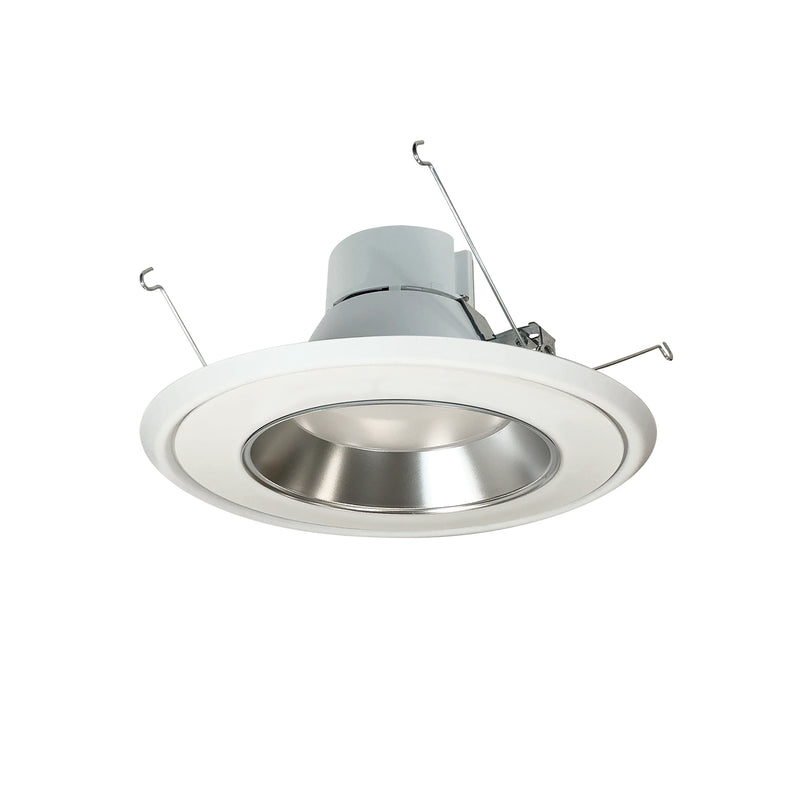

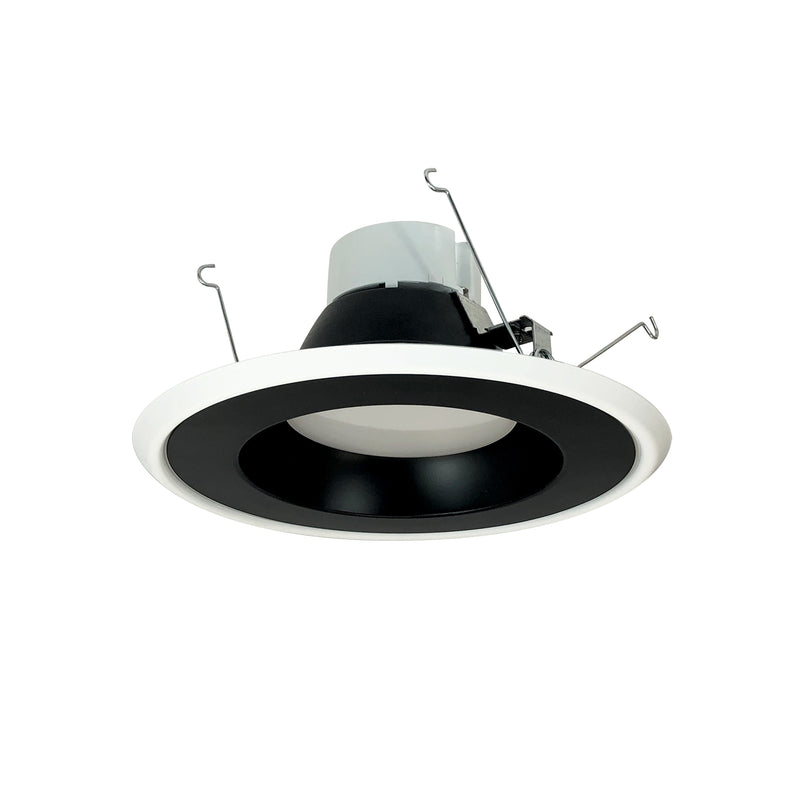

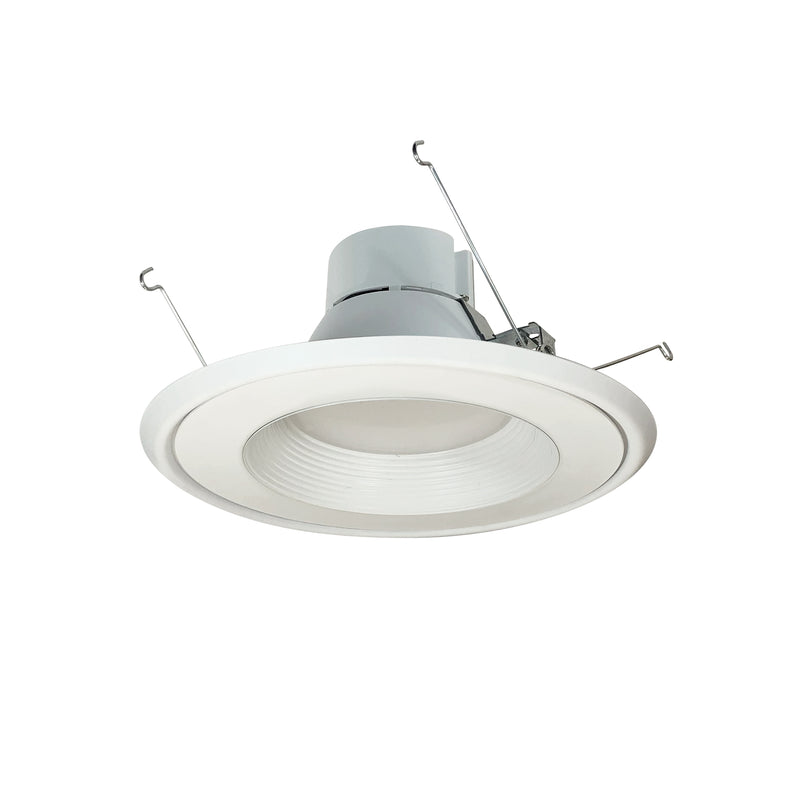

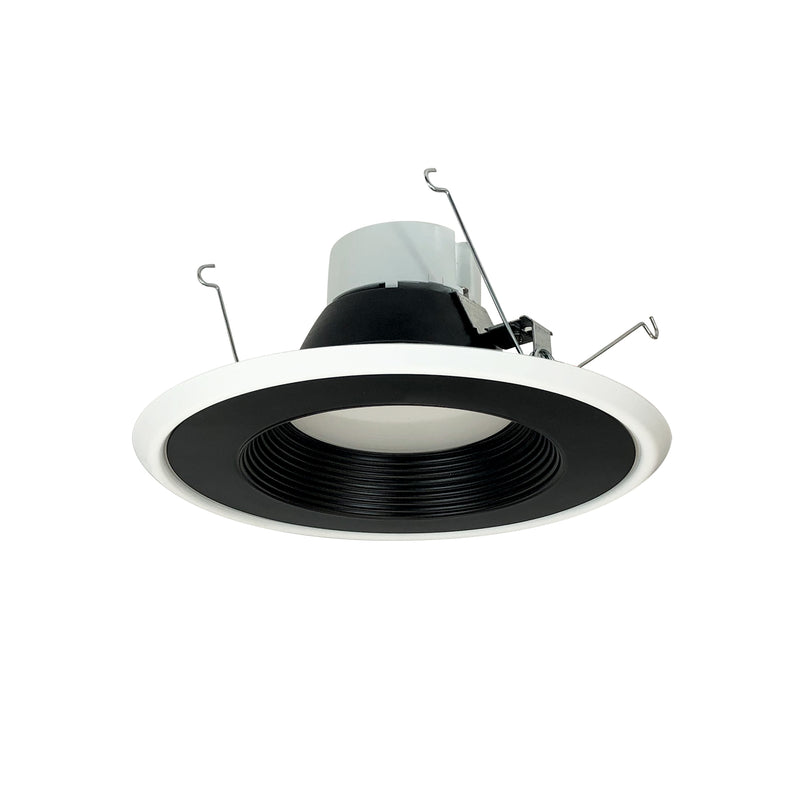

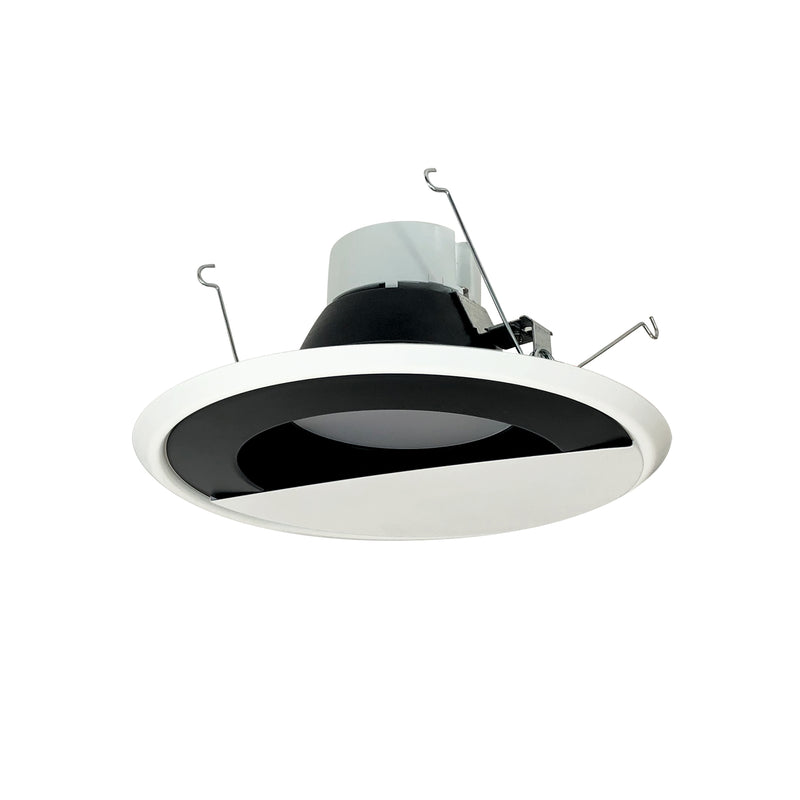

  NOX-56OR-W: 5″/6″ Round Oversize Ring for Onyx
  NOX-56BLADE: 5″/6″ Blade for Housings without spring brackets

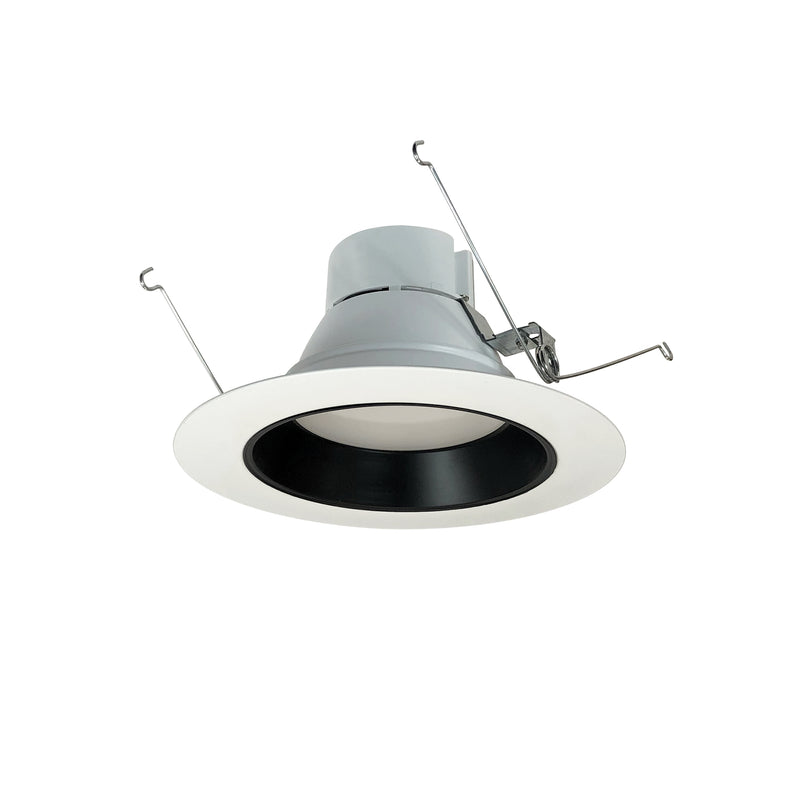

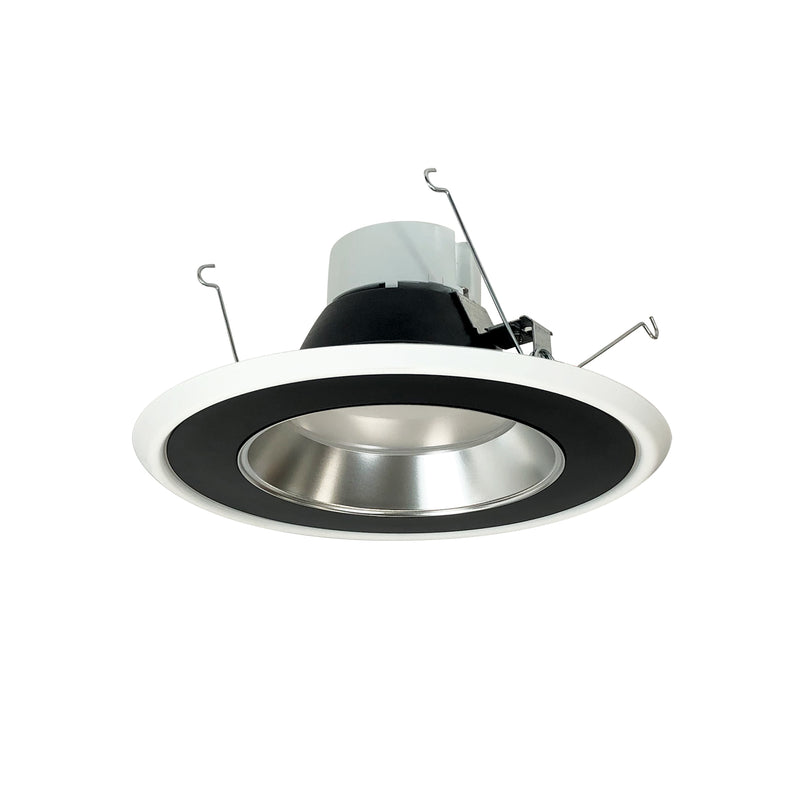

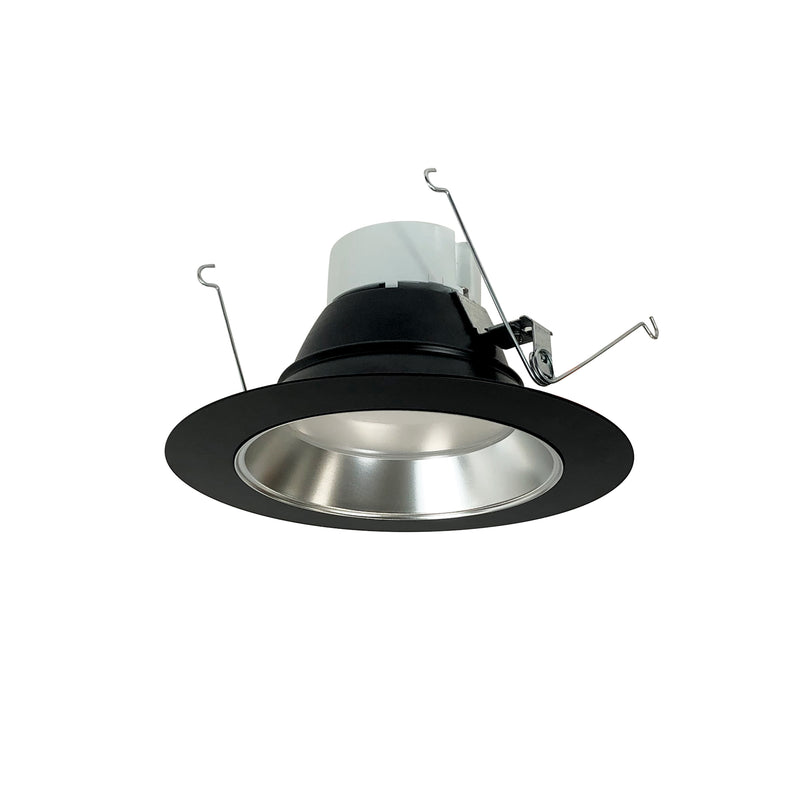

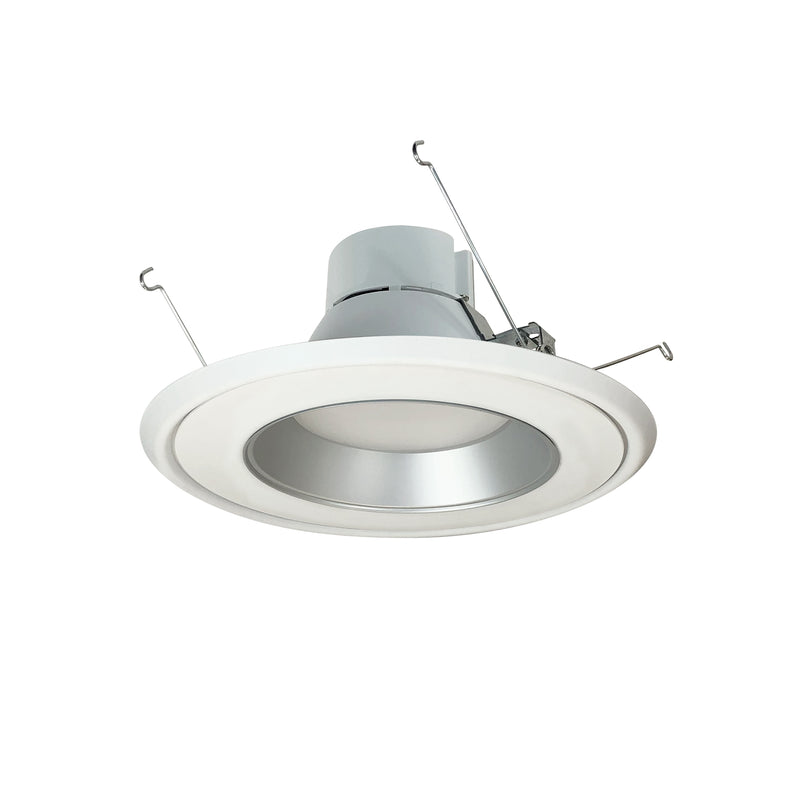

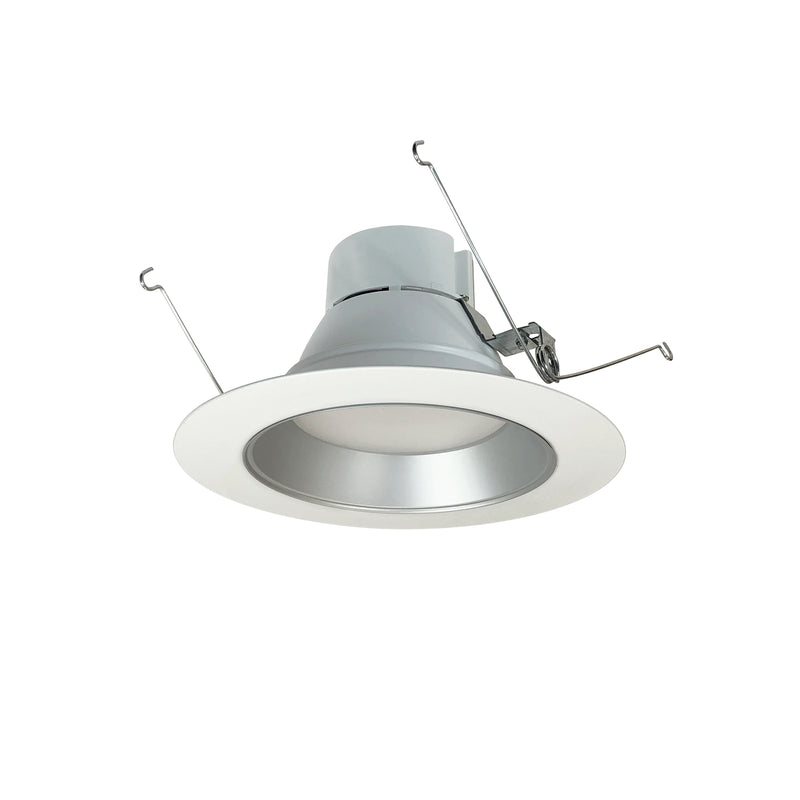

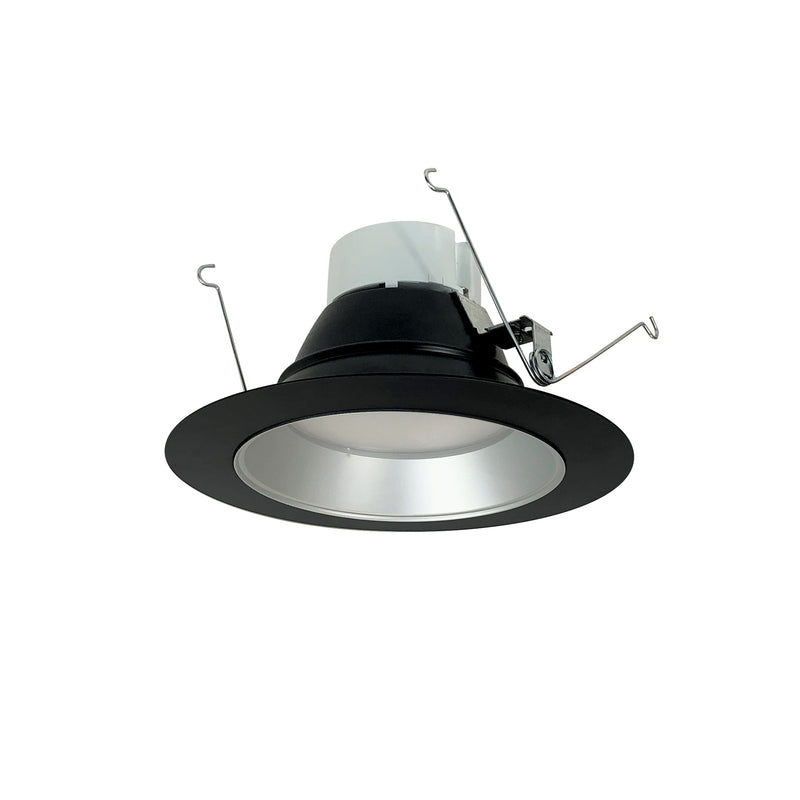

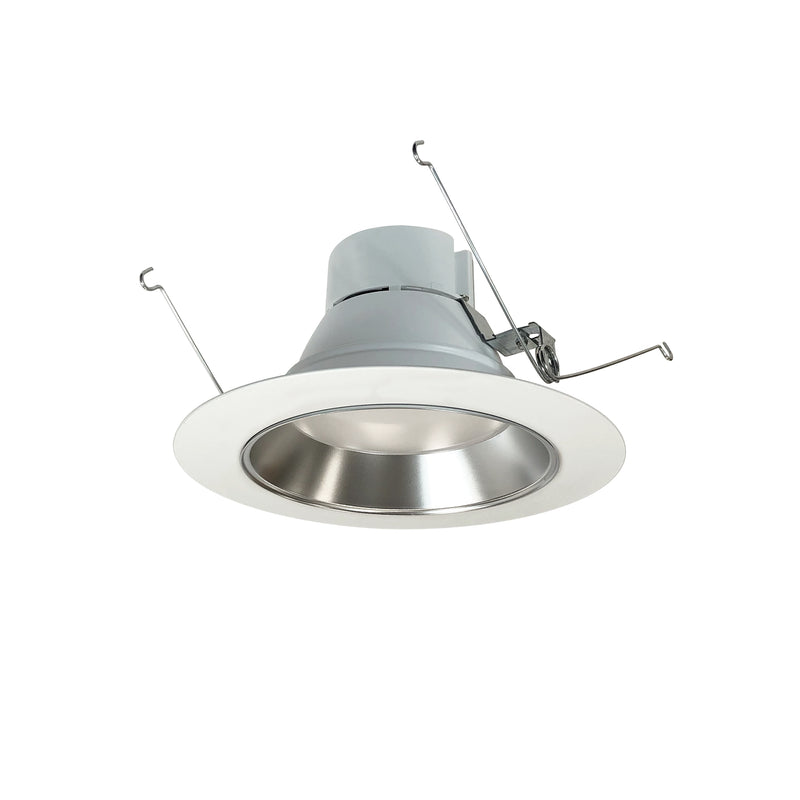

  NOX-56REFL: 5″/6″ Reflector Insert for Onyx

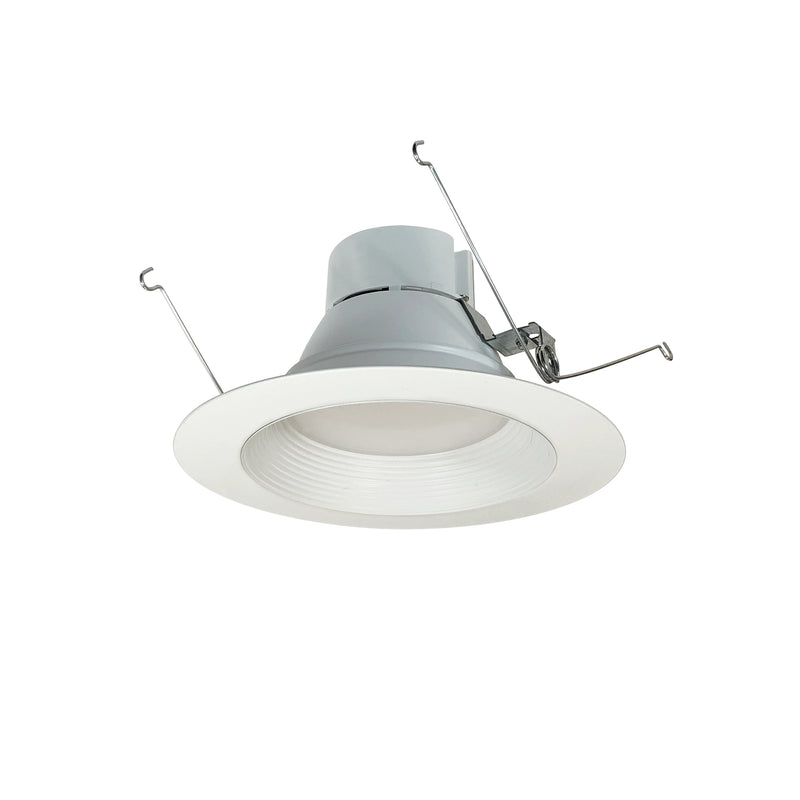

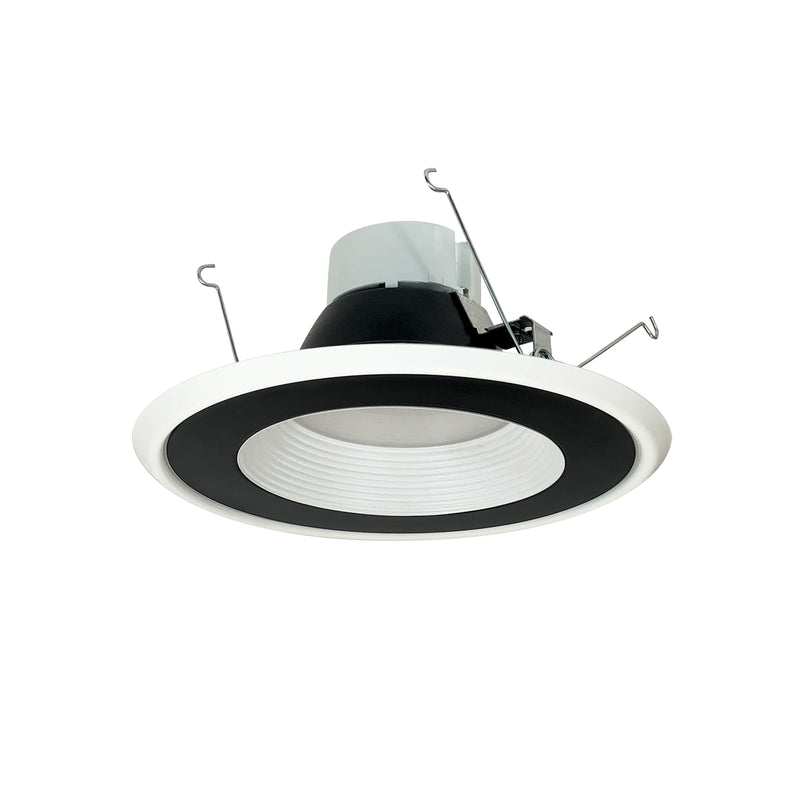

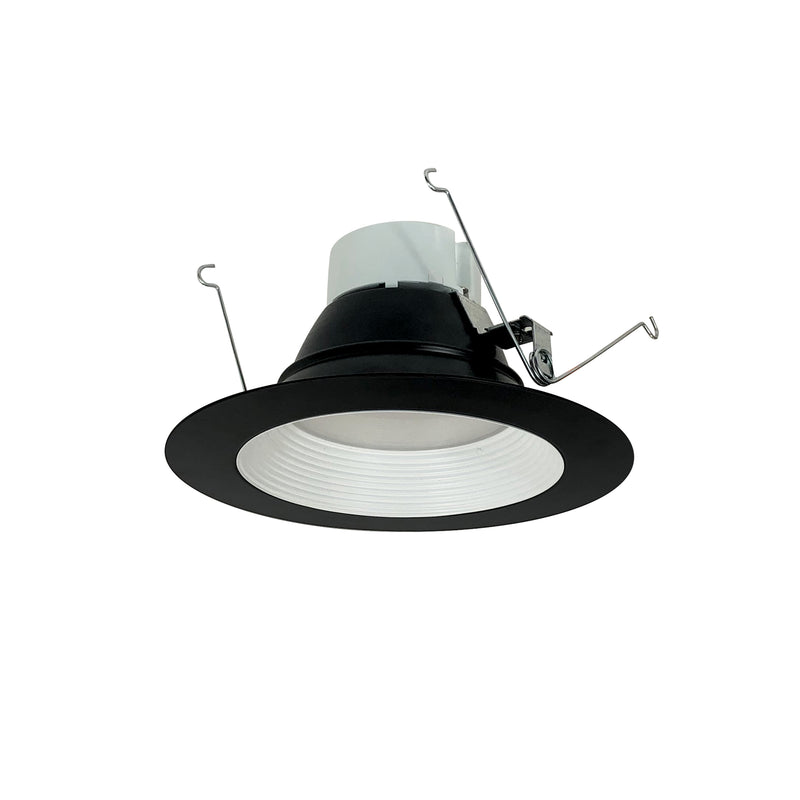

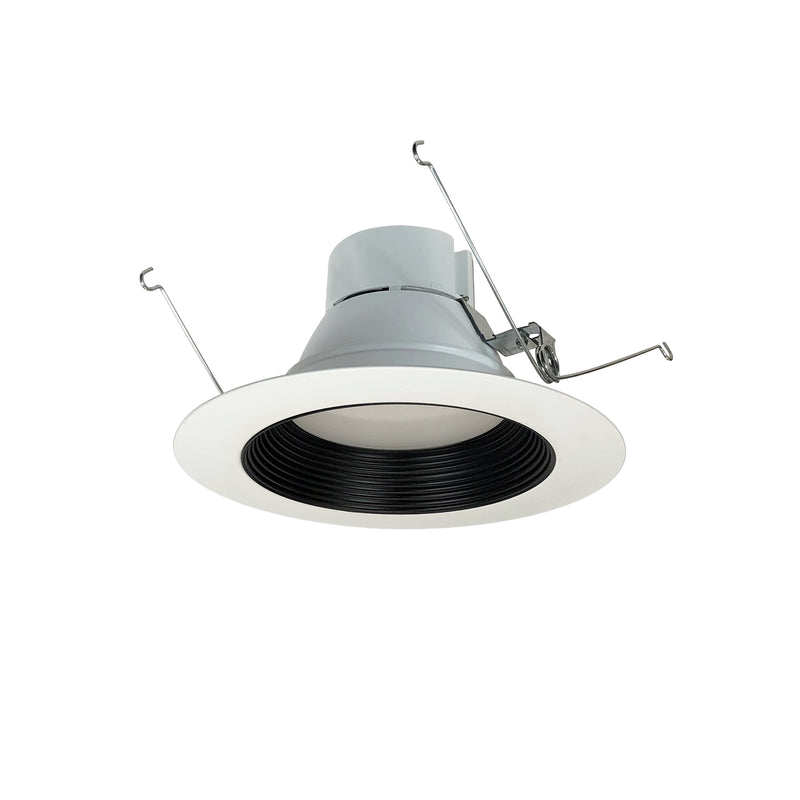

  NOX-56BAF: 5″/6″ Baffle Insert for Onyx
  NRA-212SM: GU24 Socket Adapter
