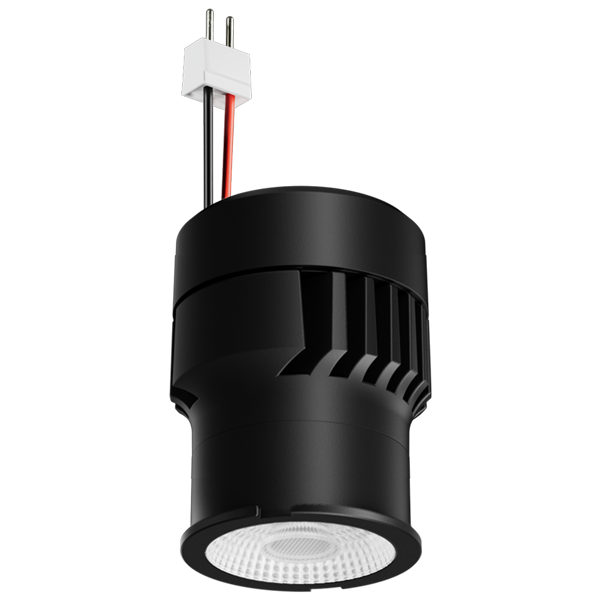

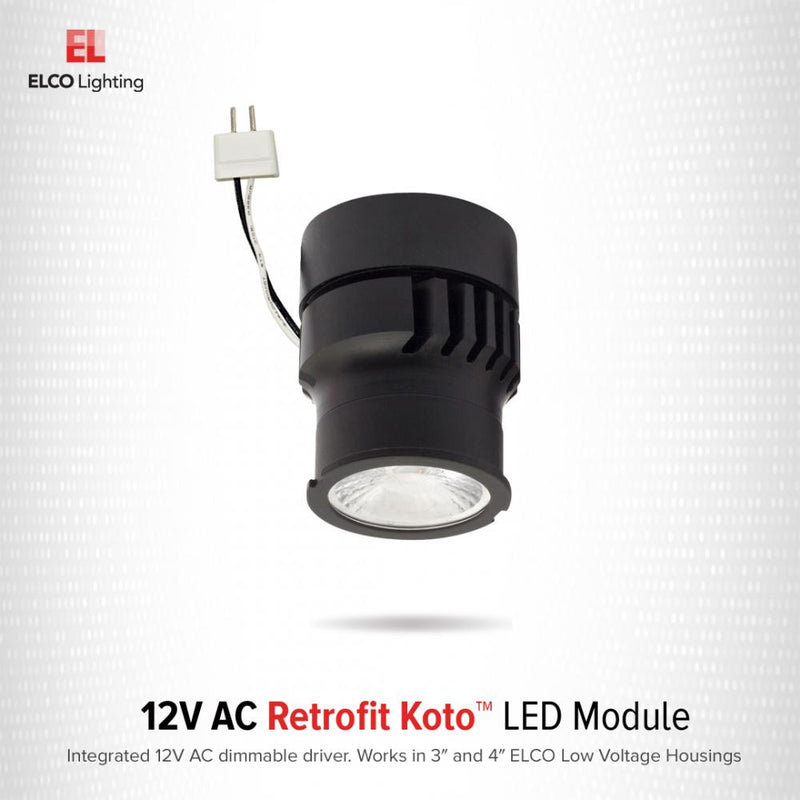

LED Retrofit Koto Module 12V AC

SKU EL-K0830-12
Original price $59.54 - Original price $59.54
Original price
$59.54 - $59.54
Current price $59.54

The best choice for simple recessed lighting applications. It comes with the frosted polycarbonate module lens that diffuses light evenly throughout while reducing glare with LED technology.

Instant On to Full Brightness technology. No LED pixelation. The 12V AC LED Module is compatible with Step 1 Dezigns housings and trims as a retrofit option.

LED Koto Twist and Lock Trims and Lens Accessories are available to order. Sold Separately.

Need help with your LED lighting projects? Our lighting experts are here to help! Contact us today for assistance with the lighting plan or installation instructions.

Key Features

  • Integrated 12V AC Dimmable Driver, Dims down to 10%
  • No minimum load issues, smooth dimming
  • More lighting output than a LED MR16 Lamp
  • Diecast aluminum body with heat fins allow for efficient cooling
  • Twist-lock design for toolless trim installation. Can be used in Low Voltage housings with Trims
  • The module connects to the 12V AC power supply. High-efficiency driver with a power factor >0.9. The start time of fewer than 0.75 seconds
  • Works with Electronic and Magnetic 12V AC transformers
  • Works in 12V Low Voltage Housings
  • Excellent color rendering 93+ CRI

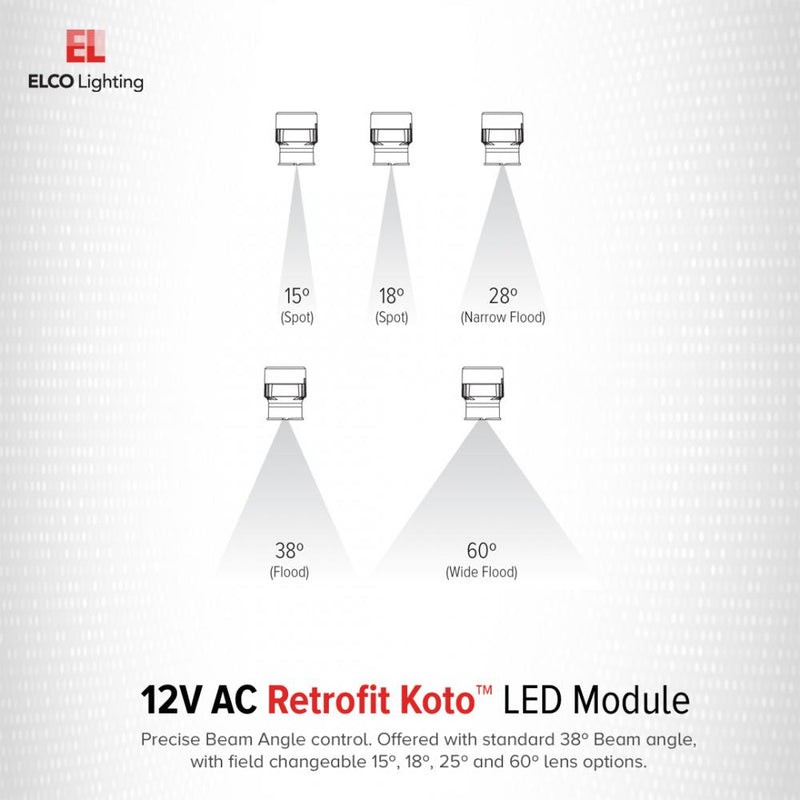

  • Standard 38° Lens installed, 25° and 60° lens included with each module - Optional Lens 18° (EL-EP731C), Sold Separately
  • Optional Louver (EL-L45), Linear Lens (EL-L46), Spread Lens (EL-L47), Clear Lens (EL-L48), Sold Separately
  • Energy Star, cULus Listed
  • Meets Energy Star & Title 24 JA8 2016 standards


  • LED Bathroom Lighting
  • Residential Ceiling Down Lighting
  • Commercial Ceiling Down Lighting
  • Living Room Lighting
  • Office Lighting
  • Home Theater LED Lights
  • LED Kitchen Lighting


View Spec Sheet

Brightness 800 Lumen
Power (Watts) 9 Watt
Voltage 12V AC
Beam Angle 25º, 38º, 60º
Color Range Index (CRI)
Yes, with a compatible dimmer
Environment Wet or Dry Location
2 in / 50.8 mm
2.125 in / 53.975 mm
2.875 in / 73.025 mm
Finish Black
Avg. Lifetime ± 30,000 - 50,000 hours
5 Year Limited
