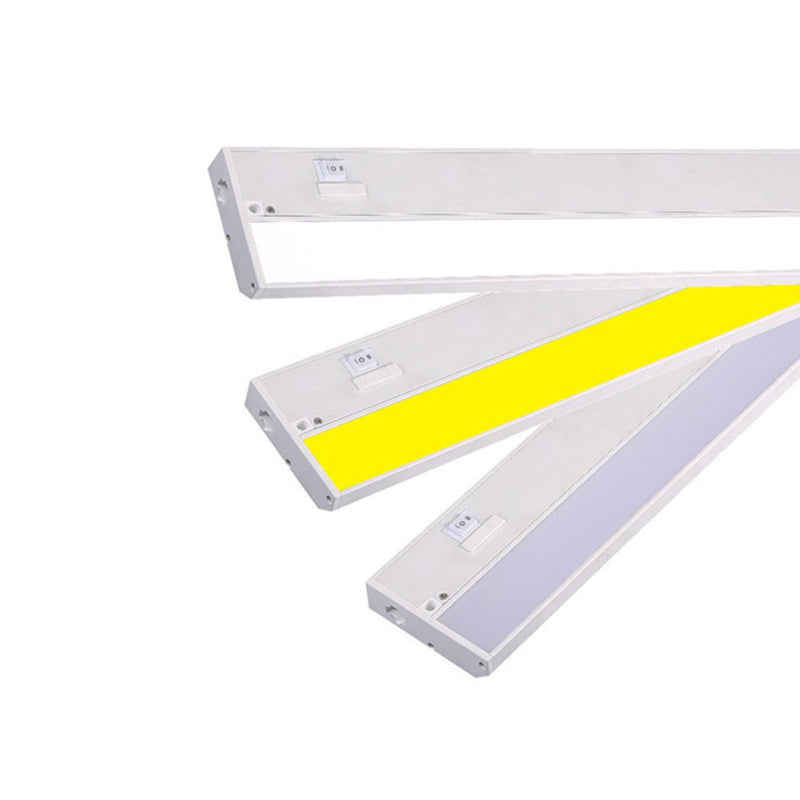

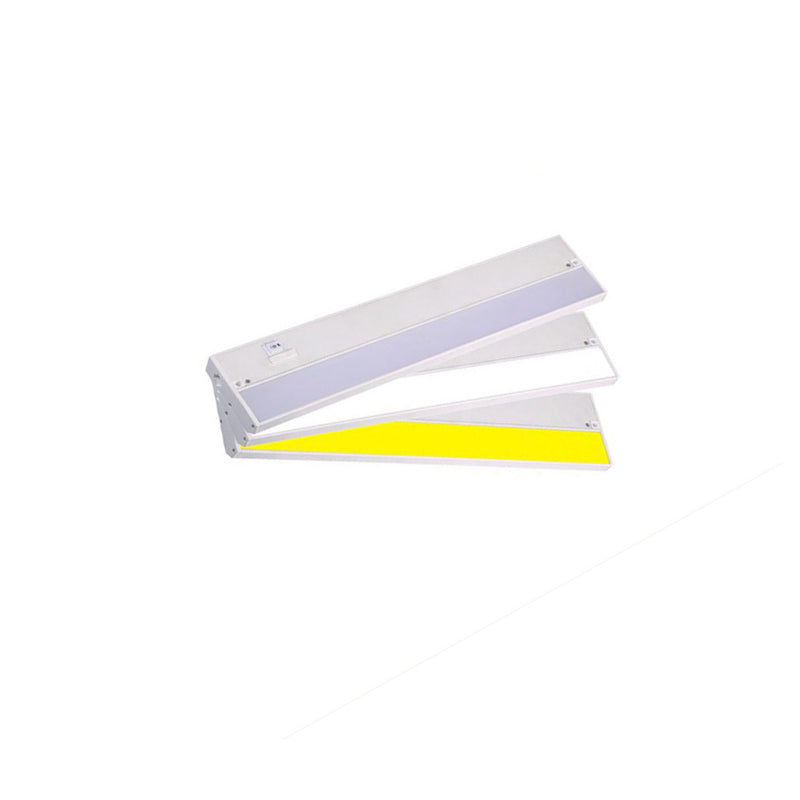

LED CCT Adjustable Under Cabinet Task Lights

LED CCT Adjustable Under Cabinet Task Light is an ideal solution for multiple environments such as coves and soffits, retail displays, undershelf, and under-cabinet applications.

Easily select the LED color temperatures by pushing the built-in switch. The LED CCT Adjustable Cabinet Lights are designed to perform efficiently in conditions where fluorescent, halogen, and low-voltage luminaries have traditionally been used.

Available in various length options in white finish. Each Task Light fixture includes a Hard Wire Connection, 6 inches Linking Cord, Butt Connector, and 5 feet long Plug-In Power Cord.

Key Features

• 1 in. Thin LED Under-Cabinet
• Long Lifespan ± 30,000 - 50,000 hours
• Powder Coated White Finish
• Plastic Polycarbonate Diffuser
• Linkable with Linking Cord & Butt Connector Included
• Hardwire or Plug-In Power Cord Included
• Enjoy Hassle-free, safe and easy Installation
• ETL Listed

Applications

• Lighting for Tradeshows, Exhibition, and Retail Displays
• Downlighting or Uplighting Applications
• Under-cabinet, Under-Counter, or cove lighting
• Under-Shelf Lighting

Specifications

View Spec Sheet

• Brightness:
  • EL-UL094-CCT: 170 Lumens
  • EL-UL124-CCT: 270 Lumens
  • EL-UL184-CCT: 450 Lumens
  • EL-UL244-CCT: 650 Lumens
  • EL-UL324-CCT: 880 Lumens
  • EL-UL404-CCT: 1100 Lumens
• Power (Watts):
  • EL-UL094-CCT: 3 Watts
  • EL-UL124-CCT: 5 Watts
  • EL-UL184-CCT: 8 Watts
  • EL-UL244-CCT: 12 Watts
  • EL-UL324-CCT: 16 Watts
  • EL-UL404-CCT: 20 Watts
• Input Voltage: 120V AC
• LED CCT:
  • EL-UL094-CCT: 3000K/4000K Selectable
  • EL-UL124-CCT: 3000K/4000K/5000K Selectable
  • EL-UL184-CCT: 3000K/4000K/5000K Selectable
  • EL-UL244-CCT: 3000K/4000K/5000K Selectable
  • EL-UL324-CCT: 3000K/4000K/5000K Selectable
  • EL-UL404-CCT: 3000K/4000K/5000K Selectable
• CRI: 90+
• Environment: IP20 - Dry Location
• LED Beam Angle: 145°
• Dimensions:
  • EL-UL094-CCT: 9" L x 3.63" W x 1" H
  • EL-UL124-CCT: 12" L x 3.63" W x 1" H
  • EL-UL184-CCT: 18" L x 3.63" W x 1" H
  • EL-UL244-CCT: 24" L x 3.63" W x 1" H
  • EL-UL324-CCT: 32" L x 3.63" W x 1" H
  • EL-UL404-CCT: 40" L x 3.63" W x 1" H
• Mounting: Surface mounting
• Included Accessories:
  • 1 x Hardwire Connection
  • 1 x 6 in linking Cord & Butt Connector
  • 1 x 5 ft Plug-In Power Cord
• Rating: ETL Listed
• Avg. Lifetime: ± 30,000 - 50,000 hours
