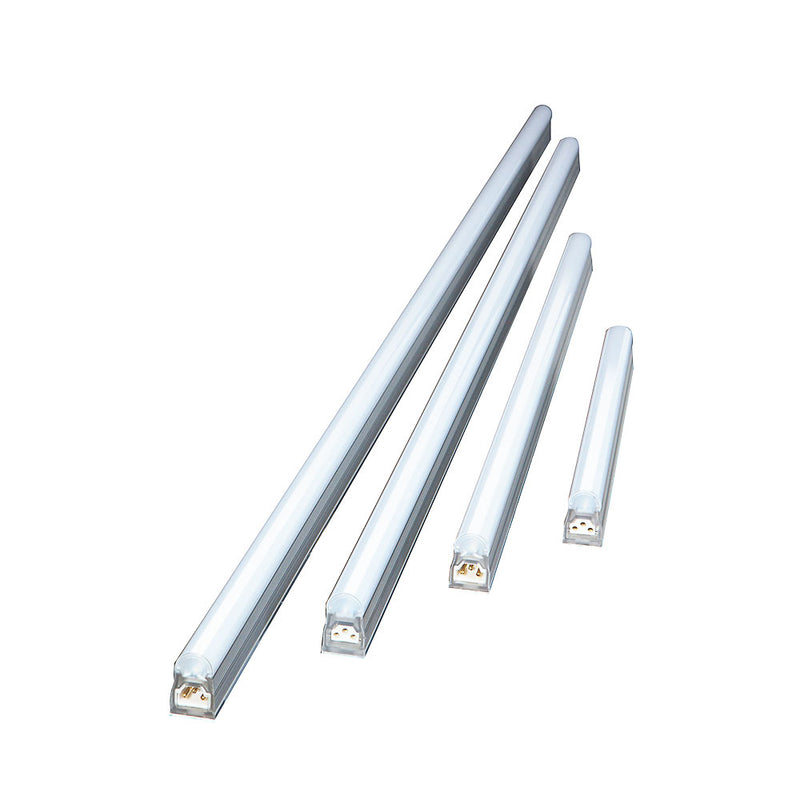

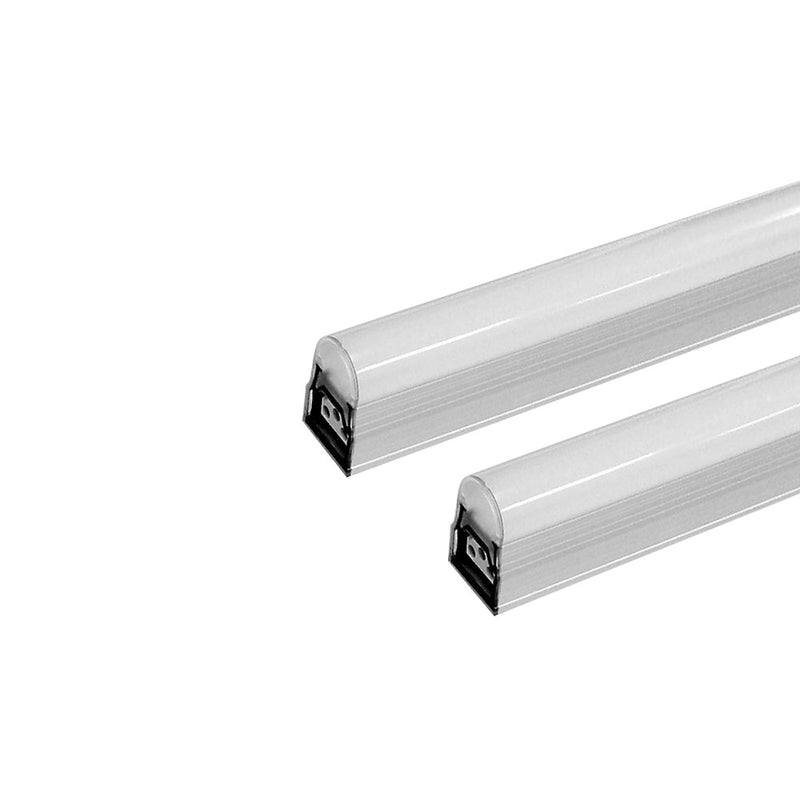

LED Micro T5 Integrated Light Bars 120V AC

SKU EL-T5D-12-40K-120
Original price $41.85 - Original price $83.71
Original price
$41.85 - $83.71
Current price $41.85

The Micro T5 LED Light Bar is an ideal lighting solution for multiple applications such as coves and soffits, displays and bookshelves, undercabinet, and step lighting. For applications that require low maintenance, low energy consumption, and low operating temperatures, with their high lumen output and long life, these LED fixtures are the answer.

Key Features

  • Integrated LED driver built-in
  • Easy plug & play installation
  • Solid-State Construction
  • High shock and Vibration Resistance
  • LED Chipsets are high intensity, ultra-bright, and energy-efficient
  • Up to 50,000 hours Lifespan
  • UL, ETL Listed, Energy Star


  • Tradeshows, Exhibition, Retail Displays
  • Downlighting or Uplighting Applications
  • Backlighting or Edge-Lighting
  • Under-cabinet, Under-Counter, or Under-Shelf Lighting


View Spec Sheet

Brightness 400 Lumens per ft.

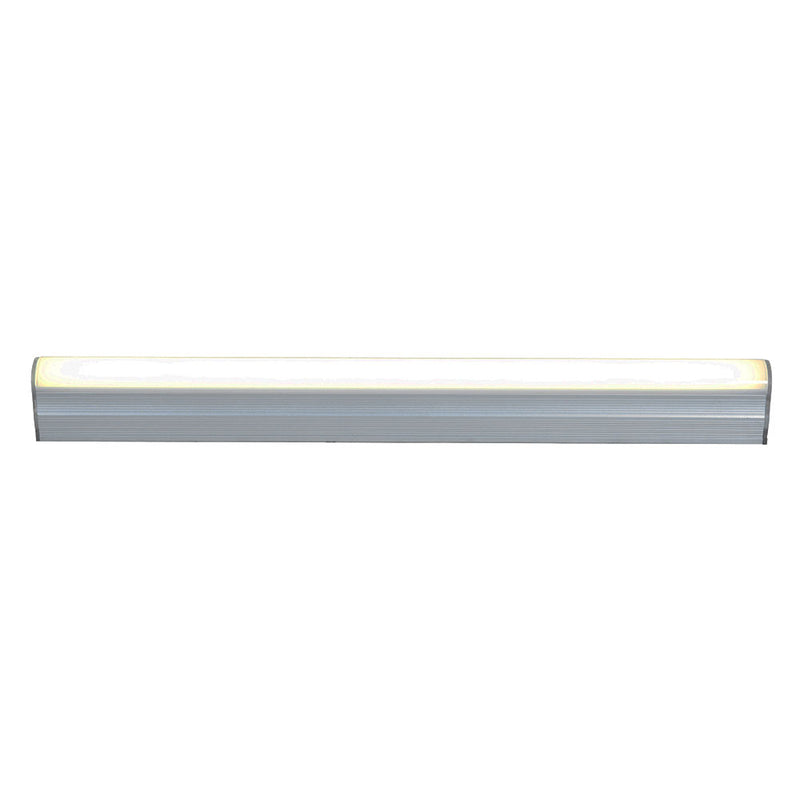

EL-T5D-12 400 Lumen

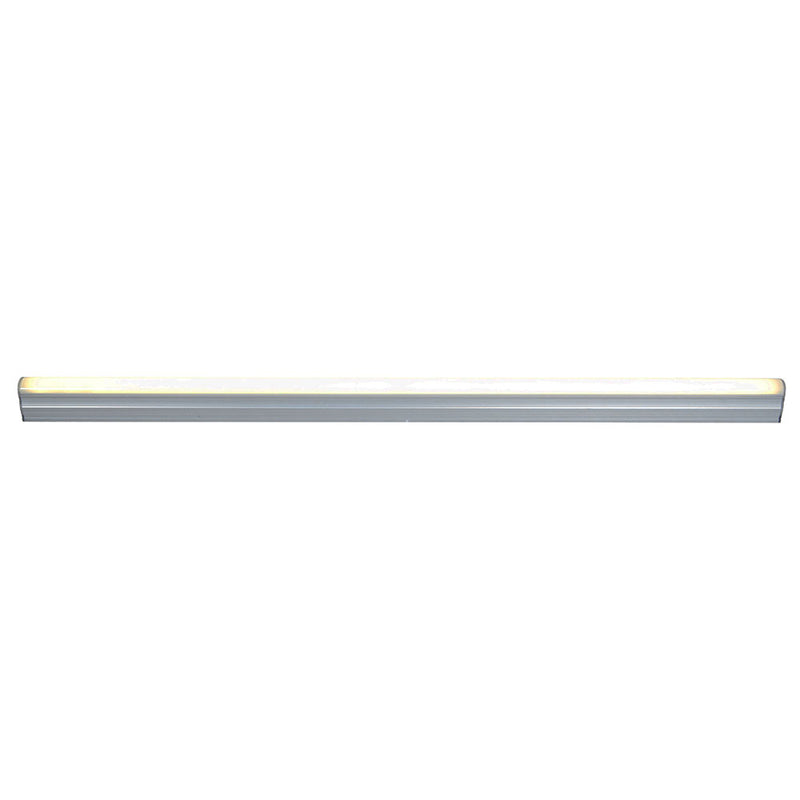

EL-T5D-22 700 Lumen

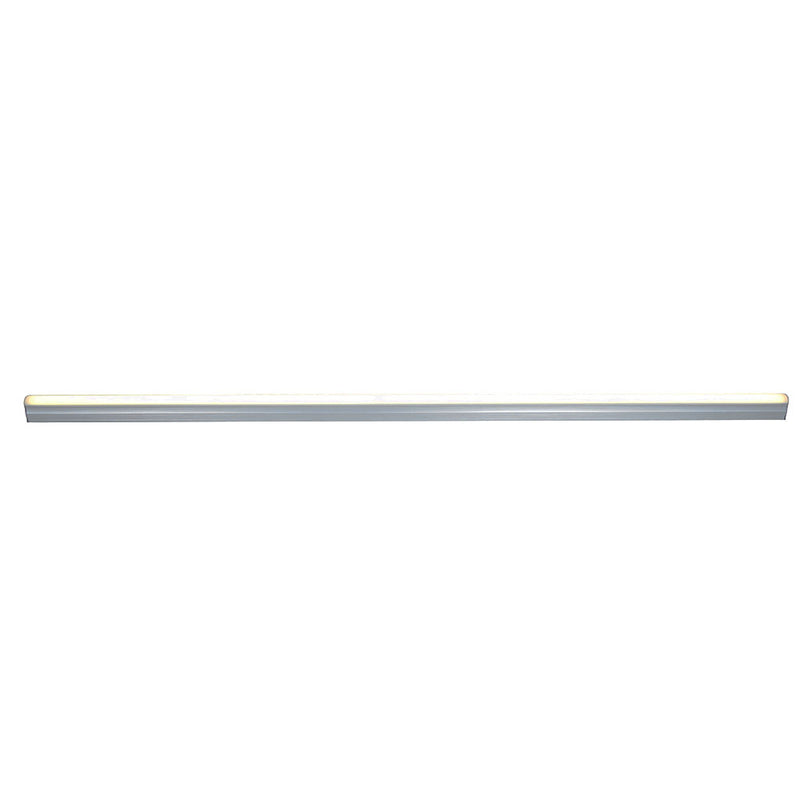

EL-T5D-39 1100 Lumen

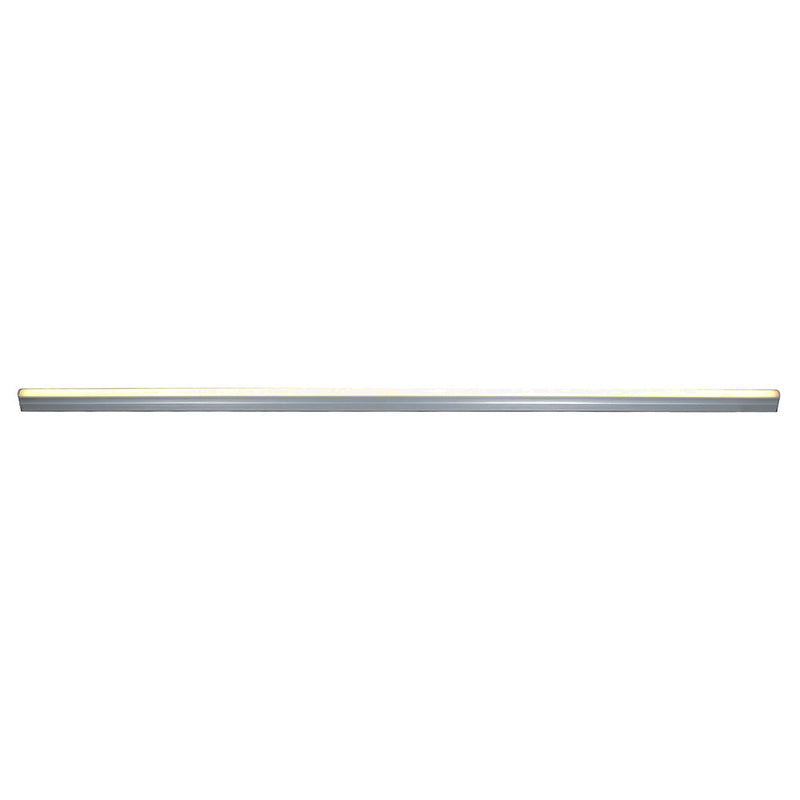

EL-T5D-47 1400 Lumen
Power (Watts) 5 watt per ft.
EL-T5D-12 5 watt
EL-T5D-22 10 watt
EL-T5D-39 14 watt
EL-T5D-47 18 watt
Input Voltage 120V AC
LED CCT & Colors 4000K Cool White
3000K Warm White
CRI 90+
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 120°
Length Various Options
Width 0.86 in / 21.84 mm wide
Height 1.38 in / 35.05 mm thick
Mounting Use metal surface mounting clips with mounting screws

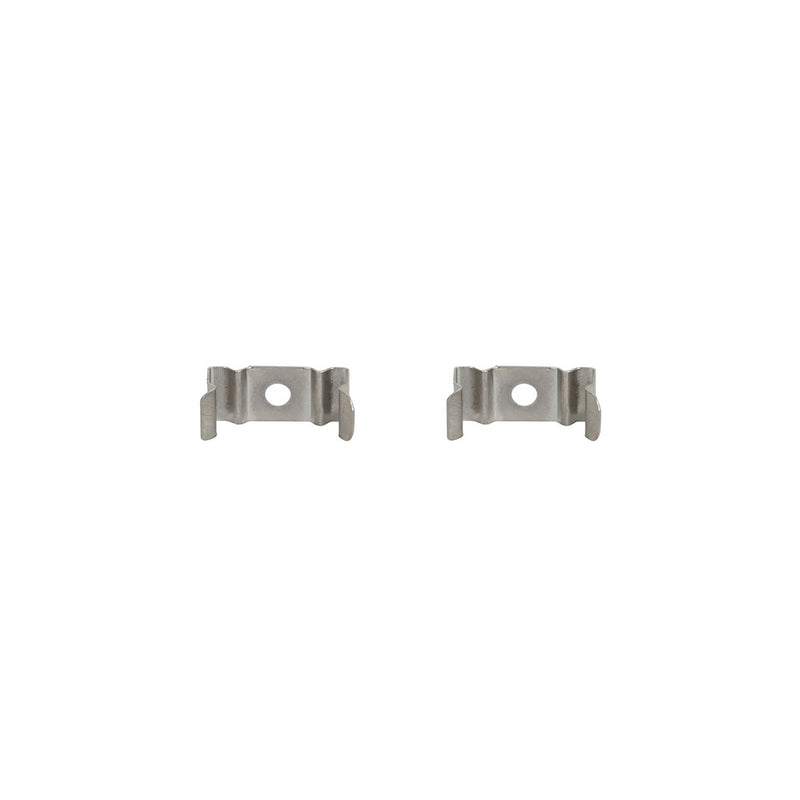

Included Accessories 2 x Spring Steel Clips
2 x Mounting Screws

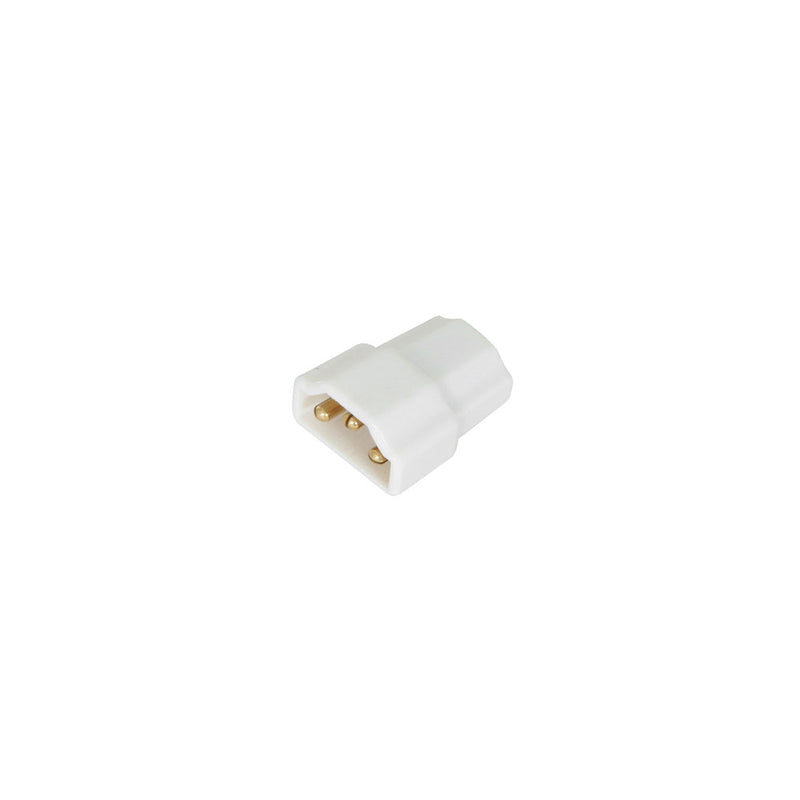

1 x End Connector
1 x Spliced Wire Power Feed
Manufacturer Elumalight
Rating UL, ETL, Energy Star
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 years limited
