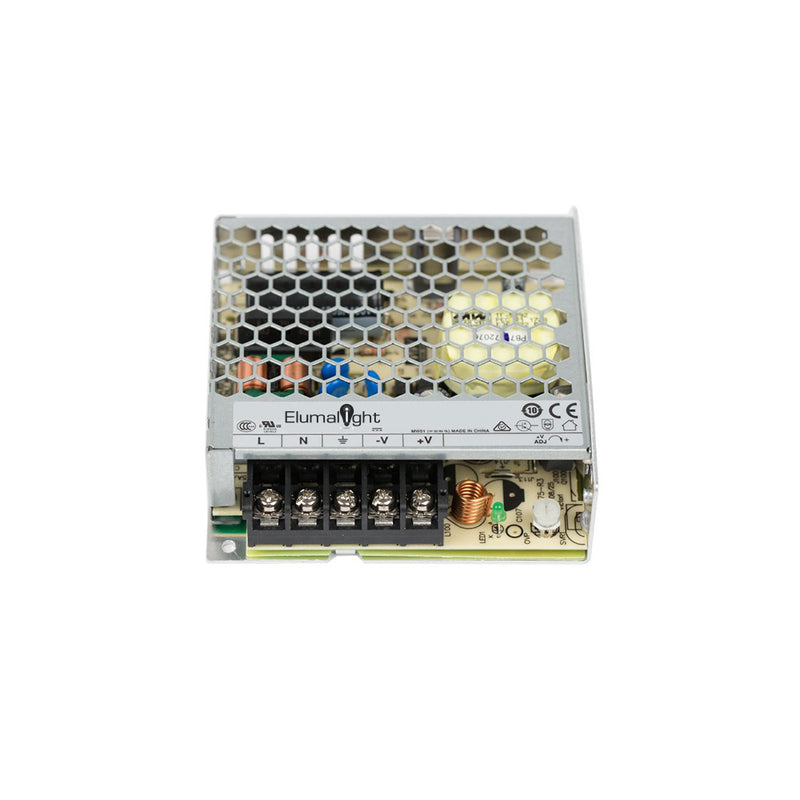

24V DC LED Open Frame Constant Voltage Drivers

Original price $20.47 - Original price $59.95
Original price
$20.47 - $59.95
Current price $20.47

24V DC LED Open Frame Drivers are enclosed type power supply with low profile design. Adopting the full range AC input, it provides an output voltage line of 24V DC with various wattage options.

It has a high efficiency of up to 91.5%, the design of the metallic mesh case enhances the heat dissipation of the driver and operates from -30°C through 70°C under air convection without a fan. Delivering an extremely low no-load power consumption, it allows the end system to easily meet the worldwide energy requirement.

It has complete protection functions and 5G anti-vibration capability; it complies with international safety regulations. The driver serves as a high-price-to-performance power supply solution for various industrial applications. Click on each driver's specification sheet to get more details. Available in 75, 100, 150, 200, or 350 watt options.

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.

Note: Optional grounded plug hardwire power cords with pigtail are compatible with our LED Open Frame driver. (Sold Separately)

Key Features

  • Universal AC Input/ Full Range
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload/ Over Voltage
  • Cooling by free air convection
  • Miniature size and ultra-low profile
  • Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances
  • High efficiency, Long life, and high reliability


  • For use with compatible Constant Voltage 24V DC LED lighting. Not for use with dimmers.


View Spec Sheet
  • Input Voltage: 85-264V AC
  • Output Voltage: 24V DC
  • Power: 75, 100, 150, 200, or 350 watt options
  • Dimmable: No
  • Over Load Protection: Yes
  • Over Temperature Protection: Yes
  • Short Circuit Protection: Yes
  • Power Method: Hardwiring
  • Dimensions: See product spec sheets
  • Environment: Dry Location
  • IP Rating: IP20
  • Rating: UL Listed, CUL Listed, RoHS, CE
  • Warranty: 1 Year Limited
