LED CCT Selectable T5 Integrated Light Bar 100-277V AC

SKU EL-T5-24-CCT
Original price $29.18 - Original price $39.69
Original price
$29.18
$29.18 - $39.69
Current price $29.18

LED CCT Selectable T5 Integrated Linear Lighting is an ideal solution for multiple environments such as coves and soffits, retail displays, undershelfs, undercabinets, and step lighting.

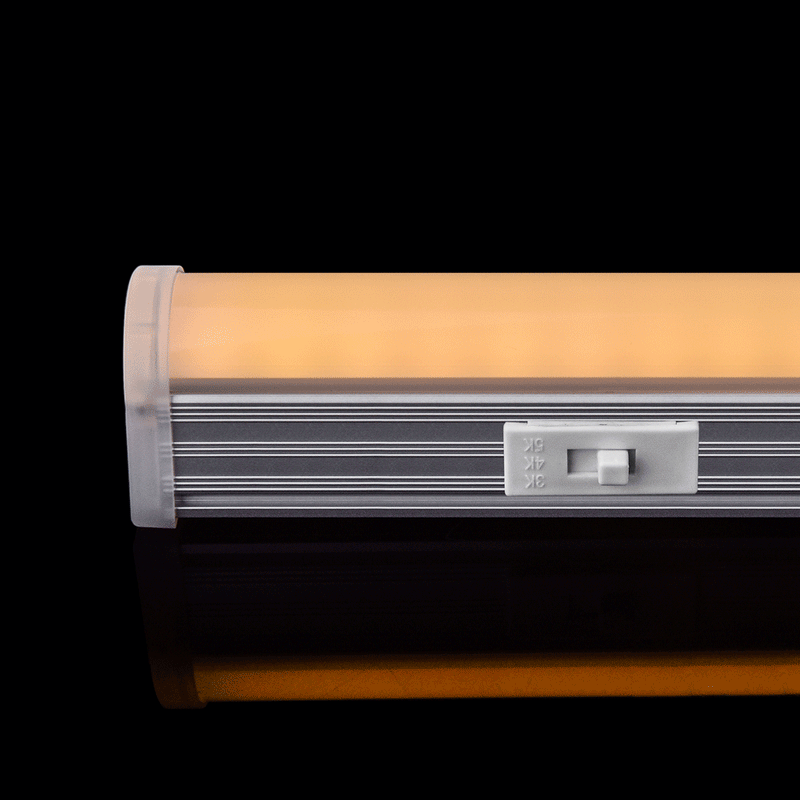

Easily select the LED color temperatures from 3000K, 4000K, to 5000K by pushing the built-in switch. The LED Micro T5 Integrated Lights are designed to perform efficiently in conditions where fluorescent, halogen, and low-voltage luminaries have traditionally been used.

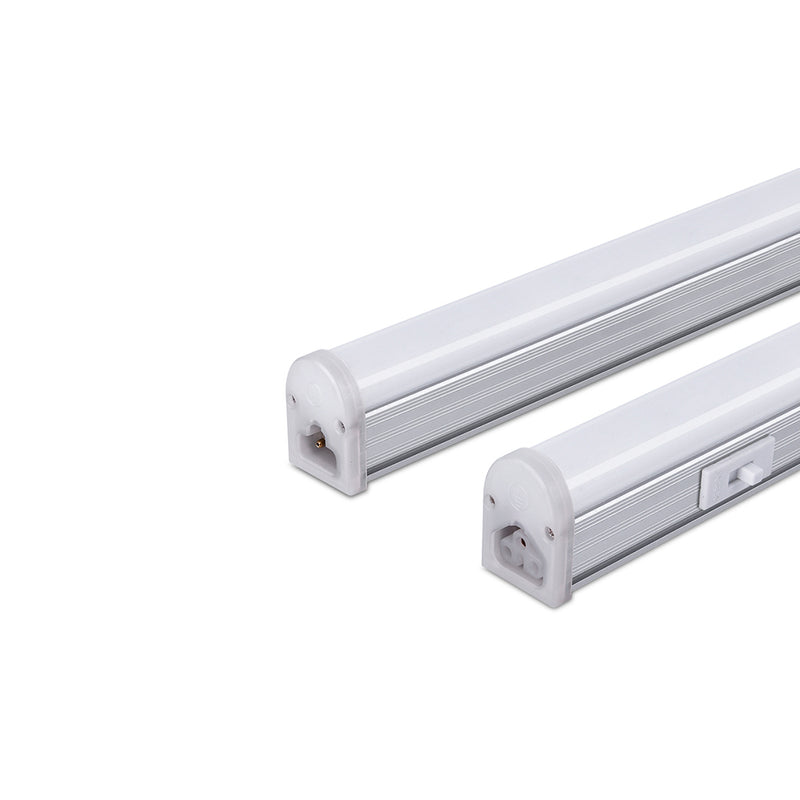

Single T5 LED integrated light with high-efficiency light engine for long life and excellent color to ensure the quality of the lighting. It can be connected to an optional cable or connector. It incorporates integral drivers, is self-supporting, and can be surface mounted. Individual units can be plugged together for continuous lengths up to 50 Ft. LED T5 Integrated Lights 100-277V AC can be used for applications that require low maintenance, low energy consumption, and low operating temperatures, with its high lumen output and long life, these LED fixtures are the answer.

Available in 22.5 inches, 34.5 inches, or 46.5 inches length options with mounting hardware and hardwire power feed included. The EL-T5-6PC 6 Ft length 3-Prong AC power cord with the Plug option is sold separately.

Key Features

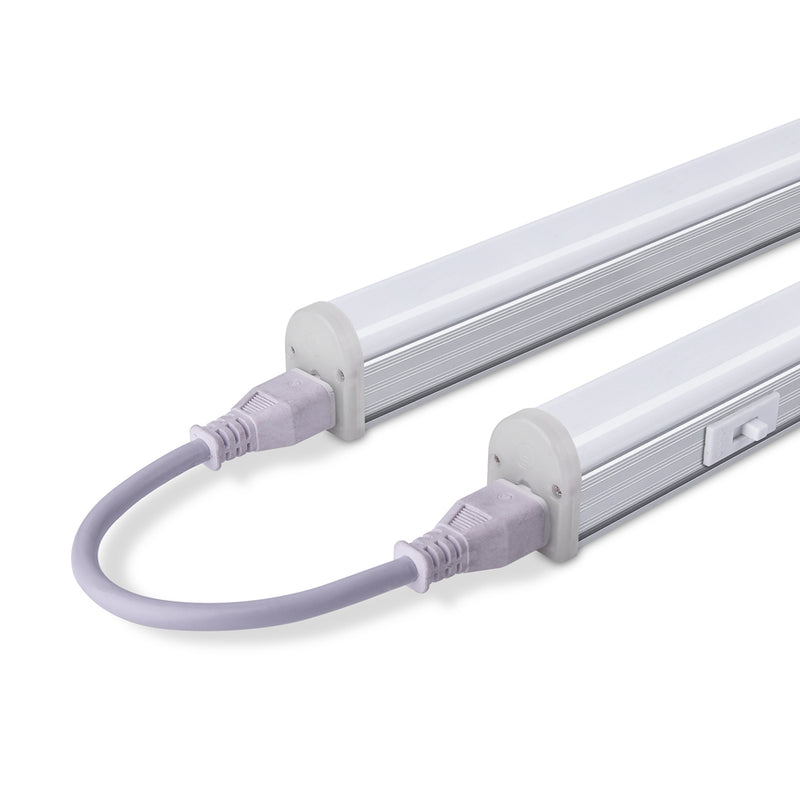

  • Patent Male-female linkable design

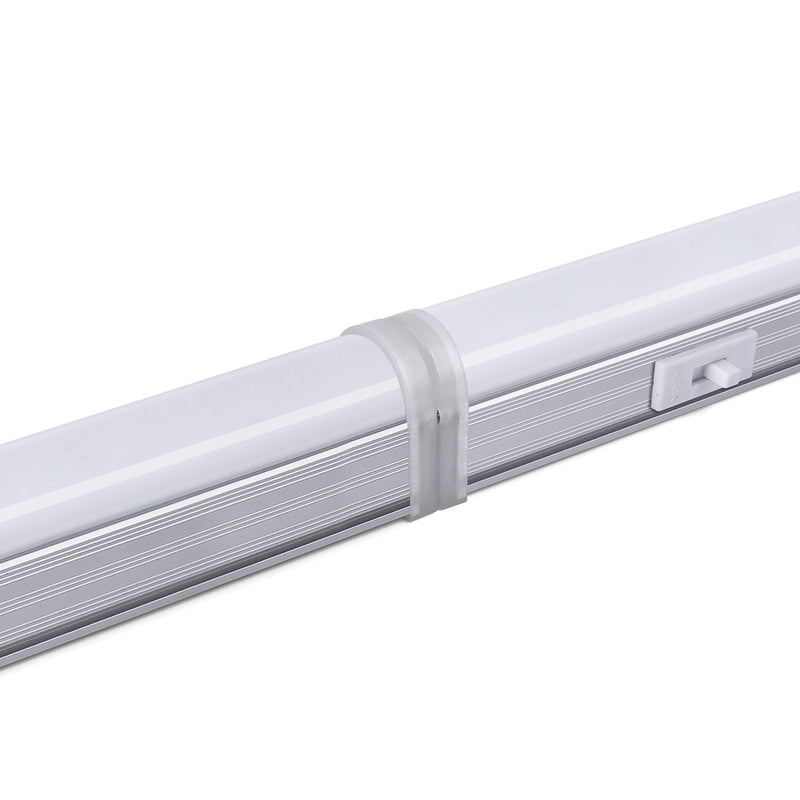

  • Seamless & No Dark in-line connection
  • UL ETL TUV SAA approved, DLC Listed
  • Aluminum housing for excellent heat dissipation
  • Heat protection system, with excellent internal driver
  • Enjoy Hassle-free, safe and easy Installation

Applications

  • Decorative Lighting for Tradeshows, Exhibition, and Retail Displays
  • Downlighting or Uplighting Applications
  • Backlighting or Edge-Lighting
  • Under-cabinet, Under-Counter, or cove lighting
  • Replaces fluorescent NCF fittings

Specifications

View Spec Sheet

Brightness EL-T5-24-CCT 770 Lumens
EL-T5-36-CCT 1320 Lumens
EL-T5-48-CCT 1650 Lumens
Power (Watts) EL-T5-24-CCT 7 Watt
EL-T5-36-CCT 12 Watt
EL-T5-48-CCT 15 Watt
Input Voltage 100-277V AC
LED CCT & Colors Selectable 3000K - 4000K - 5000K
CRI 90+
IP Rating IP20
Environment Indoor Use - Dry Location

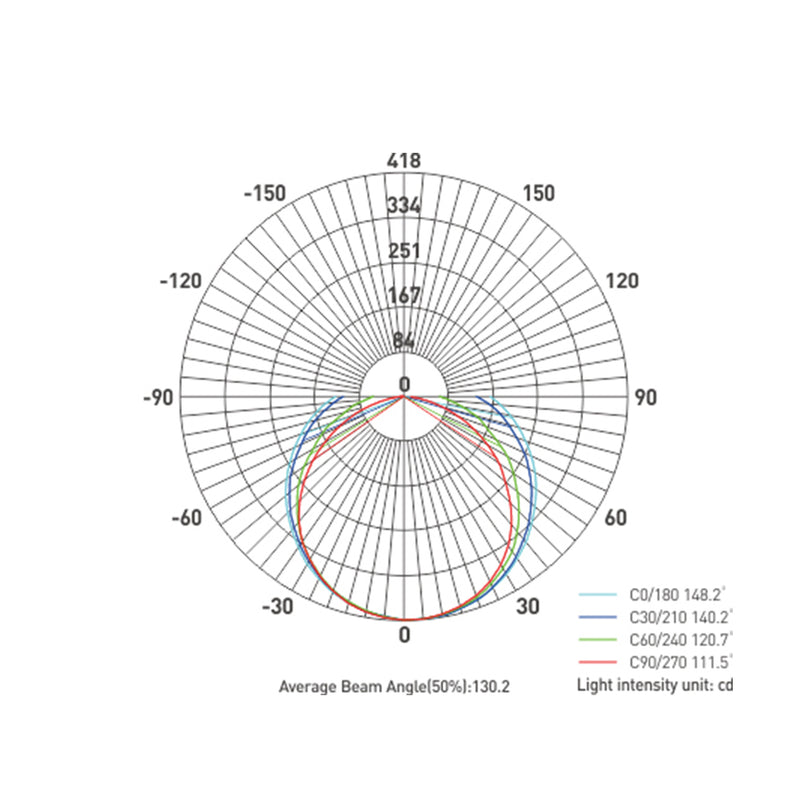

LED Beam Angle 130°
Length 22.5 in / 34.5 in / 46.5 in long
Width 1.02 in / 26 mm wide
Height 1.38 in / 35 mm thick

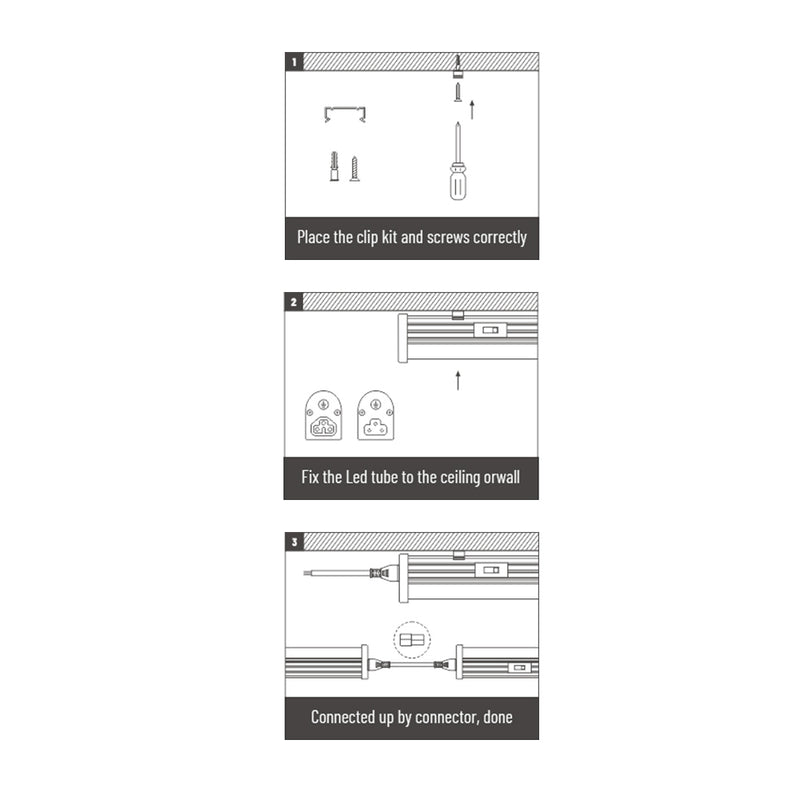

Mounting Surface mounting with Metal Mounting Clips

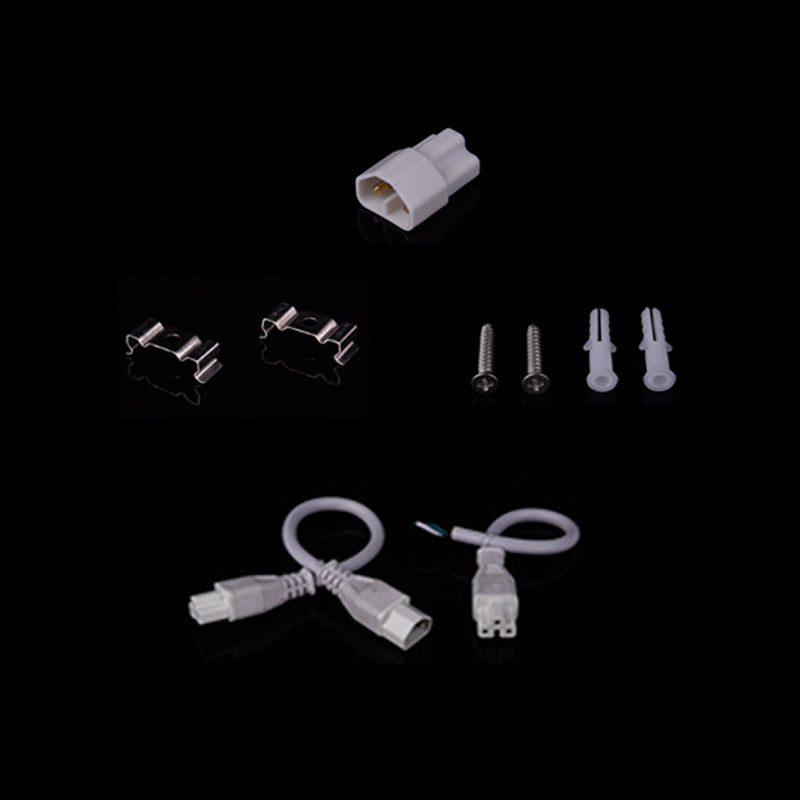

Included Accessories 2 x Spring Steel Clips
2 x Mounting Screws
2 x Plastic Anchors
1 x End Connector

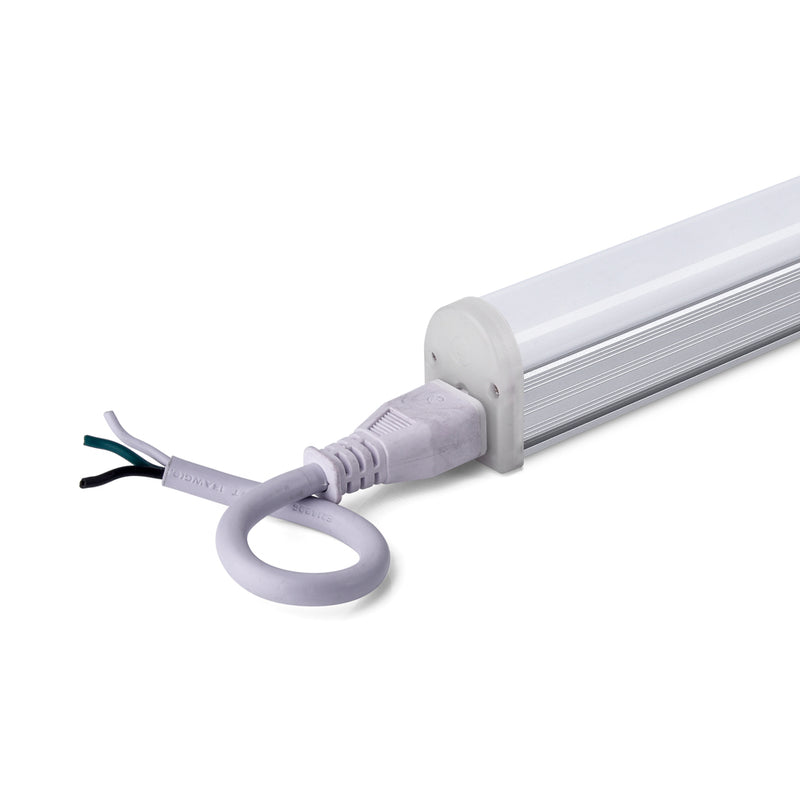

1 x Spliced Wire Power Feed
1 x 6 in. Jumper
Additional Accessories EL-T5-6PC 6 Ft length 3-Prong AC power cord with the Plug
Manufacturer Elumalight
Rating UL, ETL, RoHS
Avg. Lifetime ± 30,000 - 50,000 hours
