LED Edge-Lit Side Emitting Tape Light 12V DC 16 ft Reel

SKU EL-EG-60K-16-12
Original price $64.00 - Original price $64.00
Original price
$64.00
$64.00 - $64.00
Current price $64.00

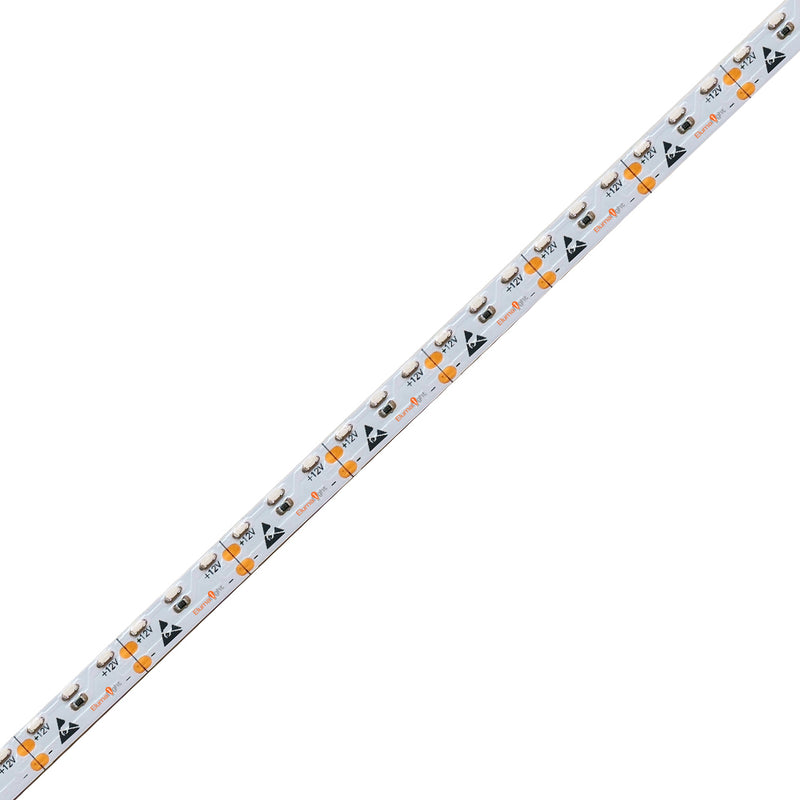

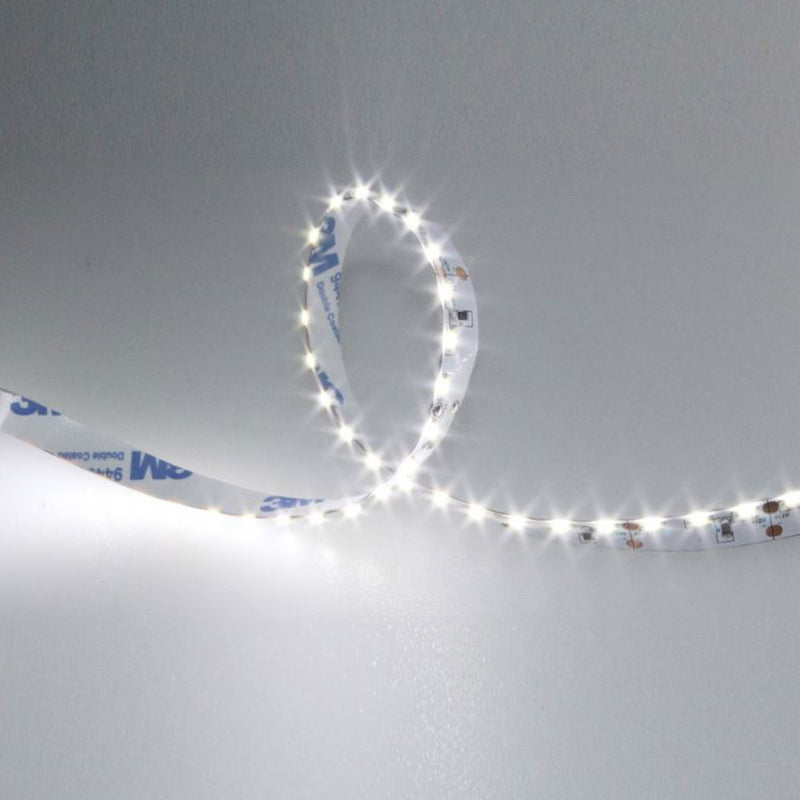

12V DC LED Edge-Lit Side Emitting Tape Light is made with commercial-grade SMD 335 Chipsets with 120 LED Chips per meter length. Featuring 90+ CRI with high output and even illumination and is perfectly designed for tradeshow decoration, exhibition lighting, retail display lighting, edge-lighting, back-lighting applications, and more. Sold in 16 ft reels.

The Edge-Lit LED Tape Light is fully dimmable when used with LED Dimmable Drivers. It is UL listed to ensure the durability and safety of the LED tape light's lifespan.

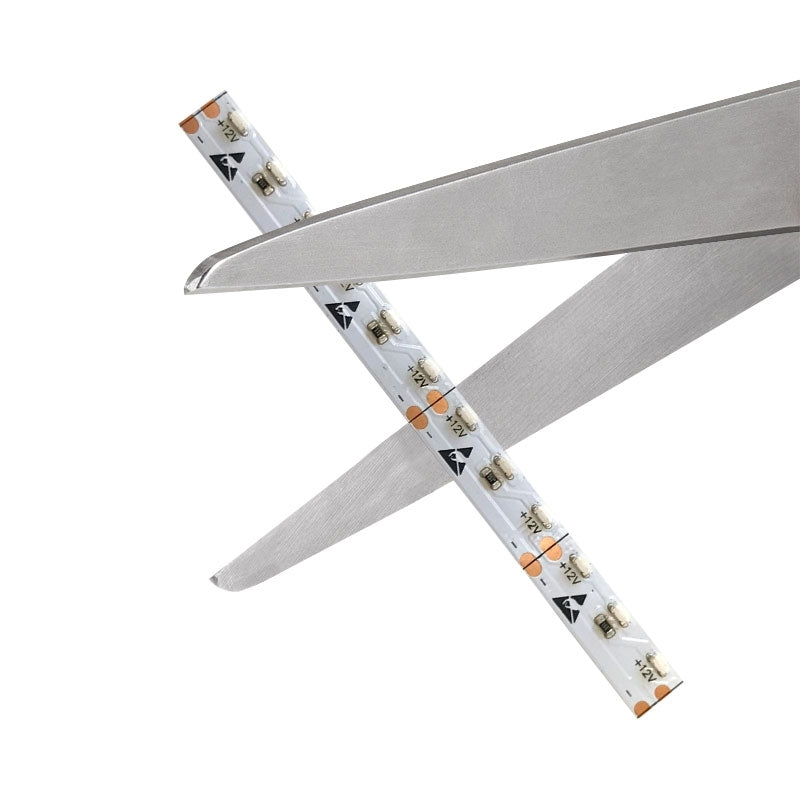

The LED Edge-Lit Flexible Strip Light is made with wire leads on the ends of each reel and can be cut every 1 inch at its cut marking points, allowing you to cut pieces to the length desired.

 * Required: Requires a non-dimming or dimming 12-volt DC driver.

Key Features

  • Maintenance-free
  • Solid-State Construction
  • High shock and Vibration Resistance
  • SMD 335 LED Chips are bright, and energy-efficient
  • No RF interference
  • Up to 50,000 hours of Lifespan
  • UL, ETL Listed

Applications

  • Edge Lighting or Back Lighting Applications
  • Decorative Lighting for Tradeshows, Exhibition, and Retail Displays
  • Architectural lighting for corridors, canopies, archways, or windows
  • Downlighting or Uplighting Applications
  • Under-cabinet, Under-Counter, or cove lighting
  • Custom DIY projects

Specifications

View Spec Sheet

Brightness 480 Lumens/ft
1574.4 Lumens/meter
Power (Watts) 3.2 watt/ft
10.5 watt/meter
Input Voltage 12V DC
LED CCT & Colors 6000K Cool White
CRI 90+
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 120°
LED Density 36 LEDs/ft
600 LEDs/reel
LED Chip Size SMD 335
LED Spacing 0.33 in / 8.4 mm

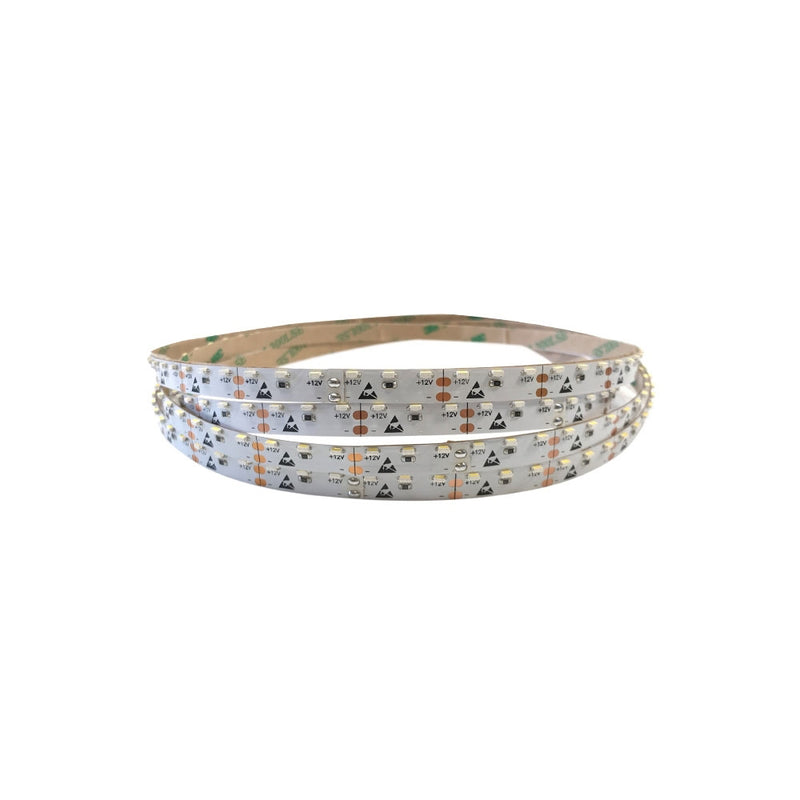

Length 16.4 ft / 5 meters long
Width 0.31 in / 8mm wide
Height 0.08 in / 2 mm thick
Cutting Increment 1 in / 25.4 mm
at cut marking
Adhesive Backing 3M Adhesive
Manufacturer Elumalight
Rating UL, ETL, CE, RoHS
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 years limited
Power Supplies
12V DC Drivers
Accessories LED Tape Light Accessories
