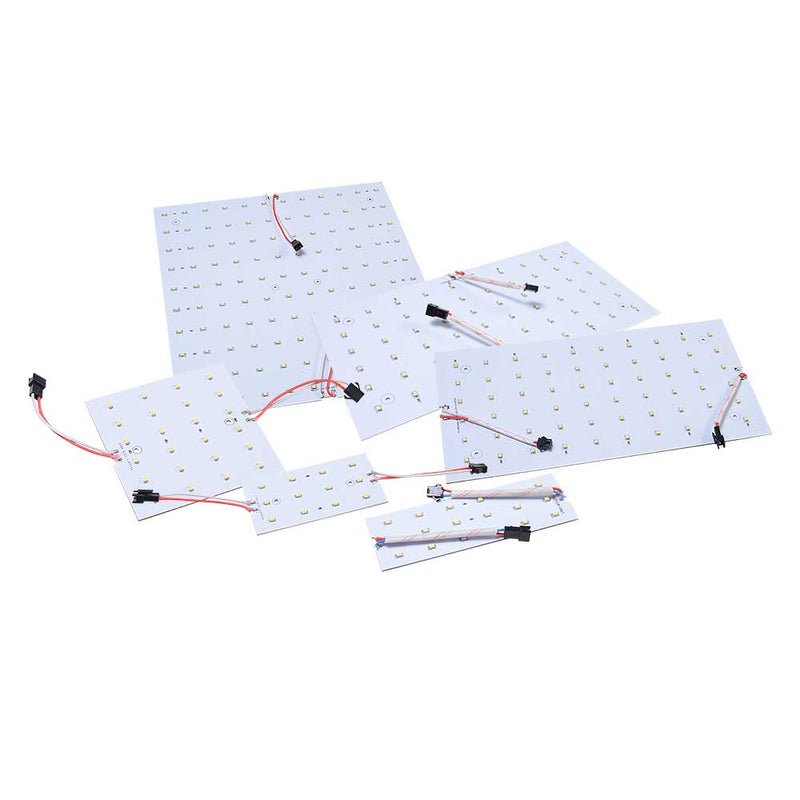

LED Grid Light Panels
LED Grid Light Panels can be used where any continuous light source is needed. With a profile of less than 0.125 in. thick, these ultra-low-profile LED Grids to allow installers to utilize them in areas less than 2 inches deep and go where traditional fluorescent light sources can not.
The LED Grid Light Panels will enhance the aesthetics of any display. For example, large scale fabric displays, lightboxes, menu boards, under the counter and countertop lighting, or wherever a cool to the touch, the non-UV light source is essential. Mounting is effortless with screws, 3M double-sided tape, or silicone-based adhesive.
Powers easily by daisy-chaining with integral push-in connectors. The Grid Panel Lights are rigid and not cuttable. Available in 5000K LED CCT and various size options.
Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.
* Required: Requires a non-dimming or dimming 24 volt DC driver. 36 in. length Power Feed, and optional 18 in. length Jumper. Sold separately.
Key Features
- Commercial grade LED Grid Panel lights creates a uniform and linear illumination
- Easy installation in any minimal size application
- Versatile mounting options: 3M-construction adhesive or screw down
- Can be installed in either exposed or fully enclosed spaces
- Fully dimmable with 24V DC dimmable driver
- Energy-efficient and low heat operation
- Non-UV light source, no hot spots or dark spots
Applications
- Lighting for Tradeshows, Exhibition, Retail Displays
- Retail Stores, Restaurants, Casinos, Lounges, and Residential Homes
- Backlighting Graphics or Signage
- Custom DIY projects
Specifications
Brightness | 100 Lumens 4 x 4 in. - 250 Lumens 6 x 2 in. - 200 Lumens 12 x 6 in. - 550 Lumens 12 x 12 in. - 1100 Lumens |
---|---|
Power (Watts) | 4 x 2 in. - 1 watt 4 x 4 in. - 1.8 watt 6 x 2 in. - 1.4 watt 12 x 6 in. - 3.8 watt 12 x 12 in. - 7.5 watt |
Input Voltage | 24V DC |
LED CCT | 5000K Cool White |
CRI | 90+ |
LED Chip Size |
SMD 2835 |
Amount of LED Chips |
4 x 2 in. - 12 LEDs 4 x 4 in. - 24 LEDs 6 x 2 in. - 18 LEDs 12 x 6 in. - 60 LEDs 12 x 12 in. - 120 LEDs |
Dimmable |
Yes, with compatible dimmer |
IP Rating | IP20 |
Environment | Indoor Use - Dry Location |
LED Beam Angle | 105° |

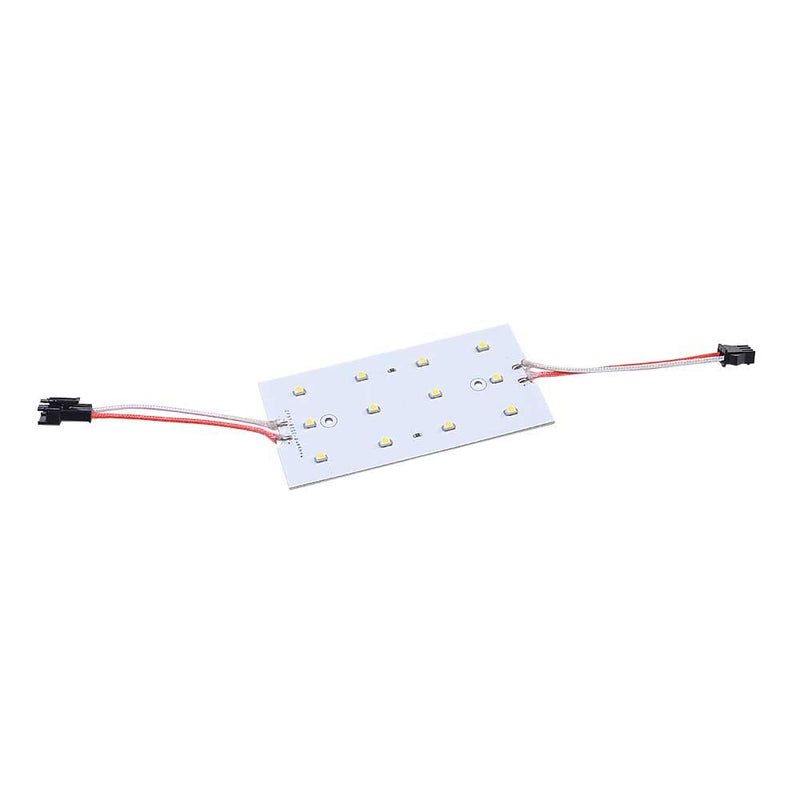

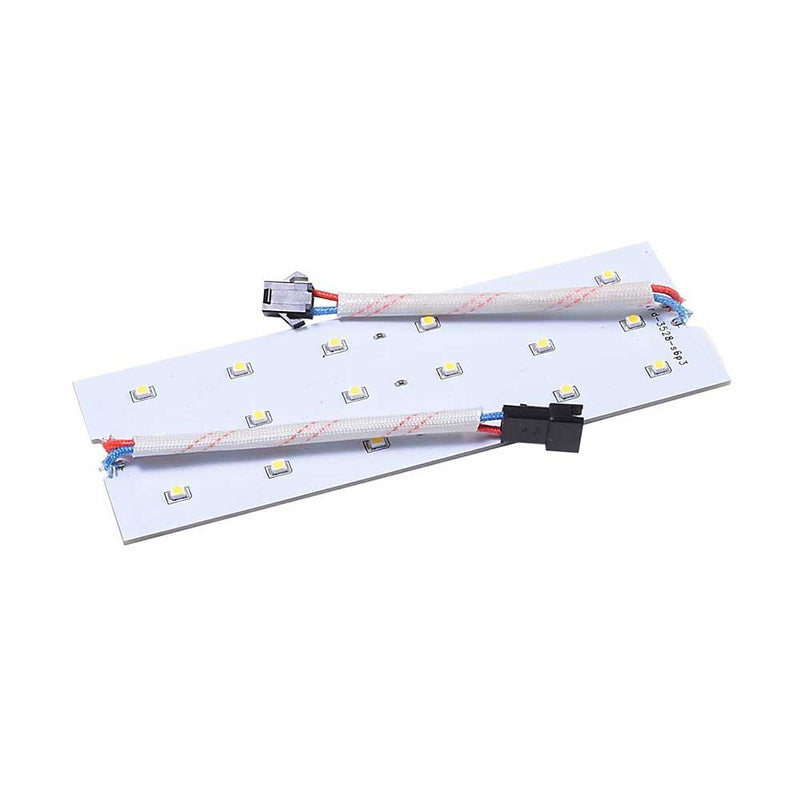

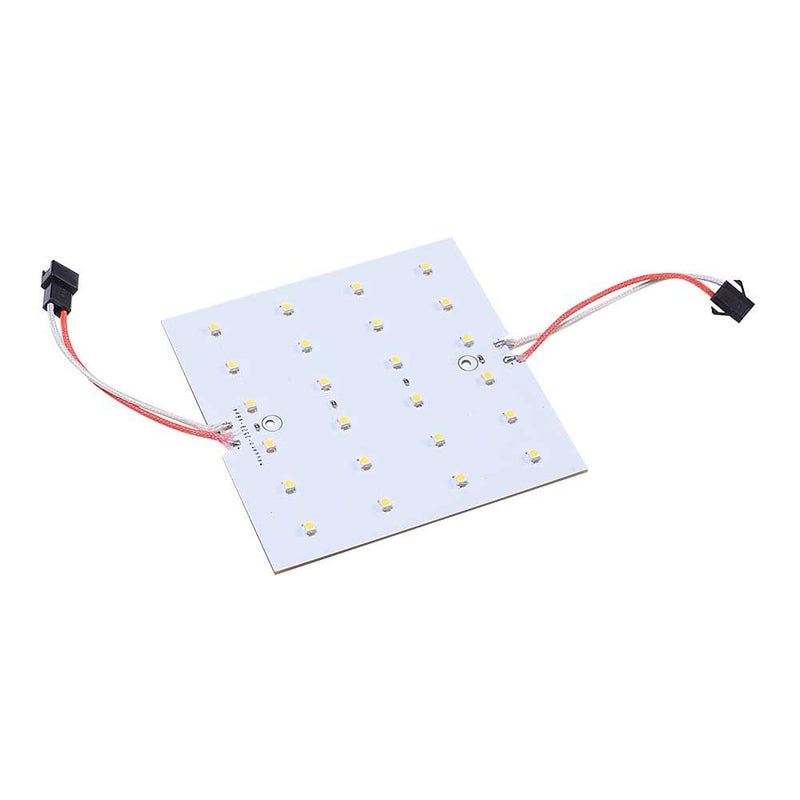

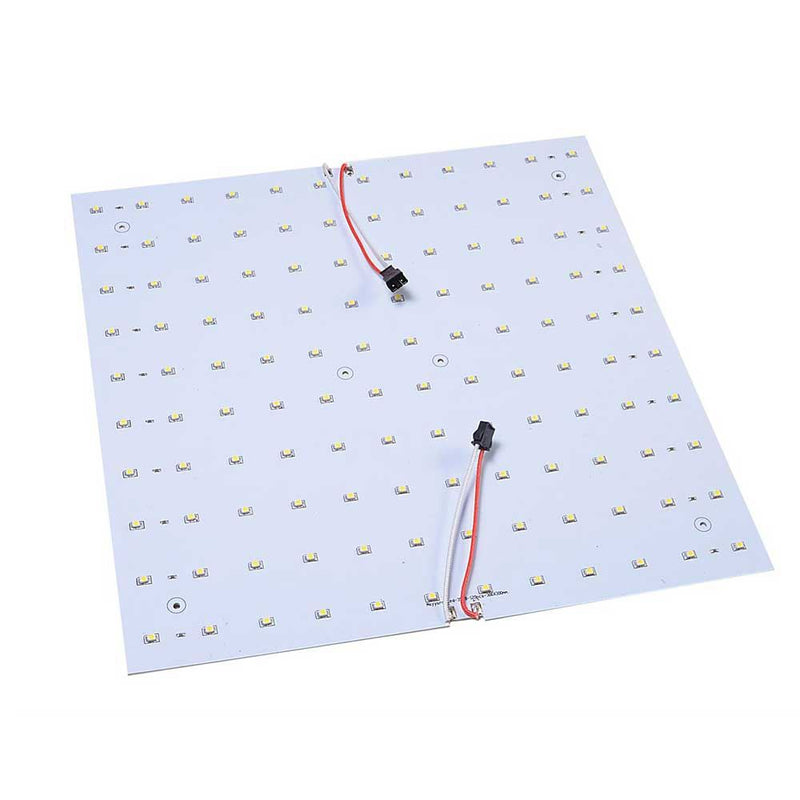

Panel Sizes (L x W x H) | 4 x 2 x 0.125 in. 4 x 4 x 0.125 in. 6 x 2 x 0.125 in. 12 x 6 x 0.125 in. 12 x 12 x 0.125 in. |
Required Power Supply |
24V DC LED Drivers |
Required Accessories |
36 in. Power Feed EL-GP-36-PF 18 in. Jumper EL-GP-18-JMP |
Manufacturer | Elumalight |
Rating | ETL Listed |
Avg. Lifetime | ± 30,000 - 50,000 hours |
Warranty | 3 years limited |
