LED I-LOC Constant Current Key Programmable Drivers (Phase) 175-350mA

Original price $45.50 - Original price $45.50
Original price
$45.50
$45.50 - $45.50
Current price $45.50
SKU EL-XAC-16-350P

The I-LOC family of Key Programmable Constant Current LED Drivers uses a ‘pick and click’ technology for rapidly programming the output current. Featuring a full set of keys that give each driver a double range of output currents, no additional programming tools or software are required.

LED I-LOC Technology enables quick and easy setting of driver output current with the simple click of a key. Select the appropriate I-LOC key for the desired output current and click it into the driver.

The keys are Interchangeable across the I-LOC LED Driver product family and have a 50% to a maximum output range. The keys are designed exclusively for the Linear I-LOC family

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with the lighting plan or installation instructions.

Key Features

  • Smooth, flicker-free Phase Dimming
  • Consistent color quality reproduction throughout the full dimming range
  • Energy Efficient
  • Easy Installation
  • Cross-Platform Compatibility
  • Instant-On, 125ms
  • Metal Case
  • Class 2, FCC, Type TL, ROHS

Applications

  • For use with compatible Dimmers and Constant Current LED lights.

Specifications

 View Spec Sheet
  • LED Driver Type: Key Programmable Constant Current
  • Input Voltage: 120-277 (+/-10%)
  • Input Frequency:  50/60Hz
  • Output Voltage Range: 20-46V
  • Programming Method: I-LOC Keys
  • Dimming Control: Phase Dimming
  • Dimming Range: Dims to Off

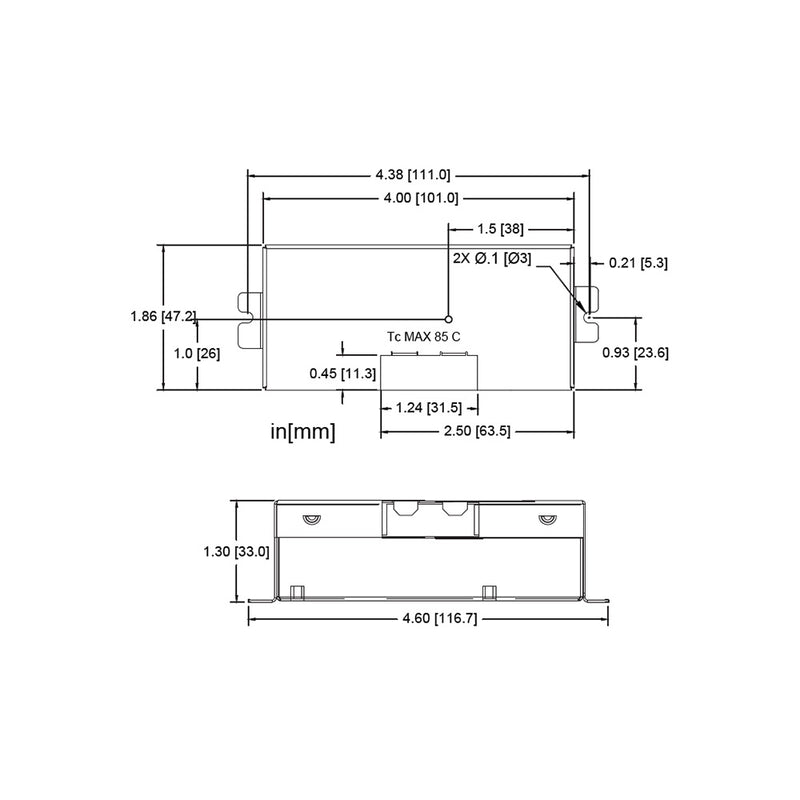

  • Dimensions: 4.6 in L x 1.86 in W x 1.3 in H
  • Power Factor @ Full Load: >0.95%
  • Efficiency @ Full Load: Up to 80%
  • Start-Up Time: <500ms**
  • Line Regulation: <3%
  • Load Regulation (Max Load): <3%
  • Output Over-Voltage Protection: Yes, Auto Recovery
  • Output Overload Protection: Yes, Auto Recovery
  • Output Short-Circuit Protection: Yes
  • Over Temperature Protection: Yes
  • EMI Compliance: FCC Part 15 Class B
  • Minimum Operating Temp.: -30°C
  • Maximum Case Temp.: 85°C
  • Maximum Storage Temp.: 70°C
  • Maximum Relative Humidity: 85% non-condensing
  • Transient Protection: NEMA SSL1-2010 Non-Roadway 2.5kV
  • UL Environment Rating: Dry & Damp
  • Sound Rating: Class A
  • Manufacturer: Hatch
  • Warranty: 5-year limited warranty
