LED Ladder Lights 12V DC - Step 1 Dezigns

LED Ladder Lights 12V DC

SKU EL-LAD-92X10-140K-12
$93.75 - $243.75
$93.75
$93.75 - $243.75
$93.75

LED Ladder Lights are designed to provide the best quality lumen outputs for applications such as backlighting illuminated signs, SEG fabric displays, and any projects that require the highest value and cost-efficiency. The LED Ladder Lights are versatile and can be easily fitted into sign boxes and indoor or outdoor lightboxes.

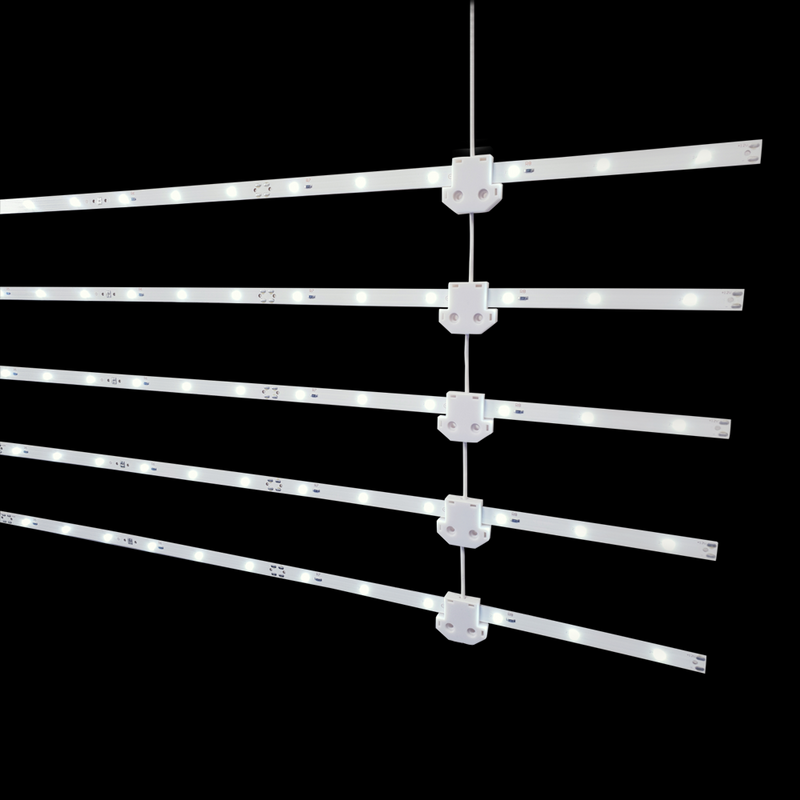

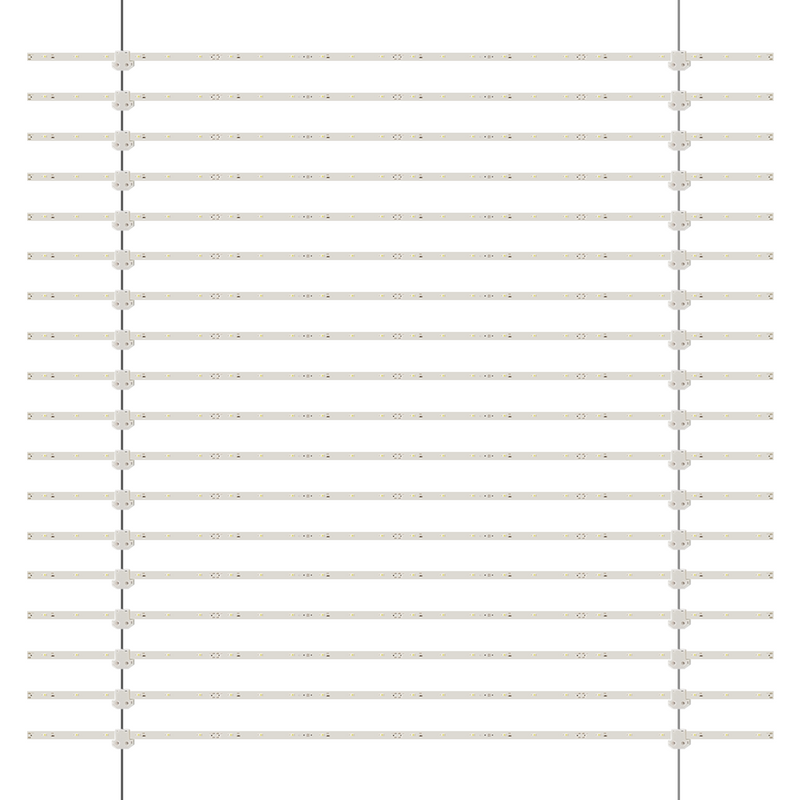

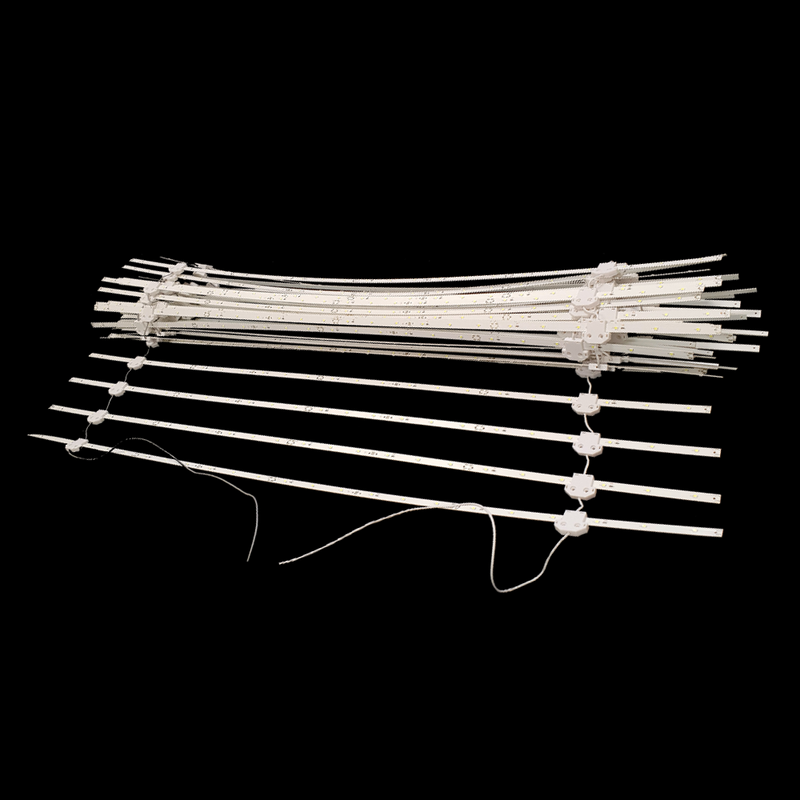

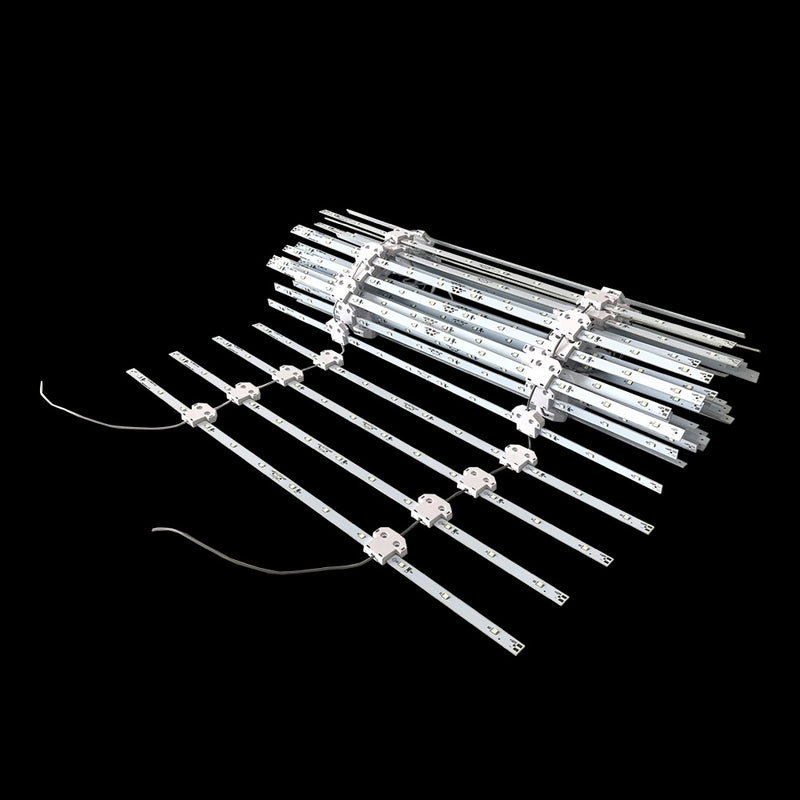

Each LED Ladder Light is made of many rows of rigid LED PCB Lightbars pre-wired together for easy installation. The ultra-flexible wiring between each lightbar allows the LED Lattice to be wrapped around corners or columns and spacing between bars can be adjusted to custom fit your application.

LED Ladder Lights are single-sided and you may run 2 ladder lights back-to-back to illuminate 2-sided lightboxes.

The wires between each LED lightbar can be cut horizontally at any point to divide it into single lightbars or smaller segments to fit into smaller spaces. Each light bar can be cut every 1.63 in. increment at its cut marking.

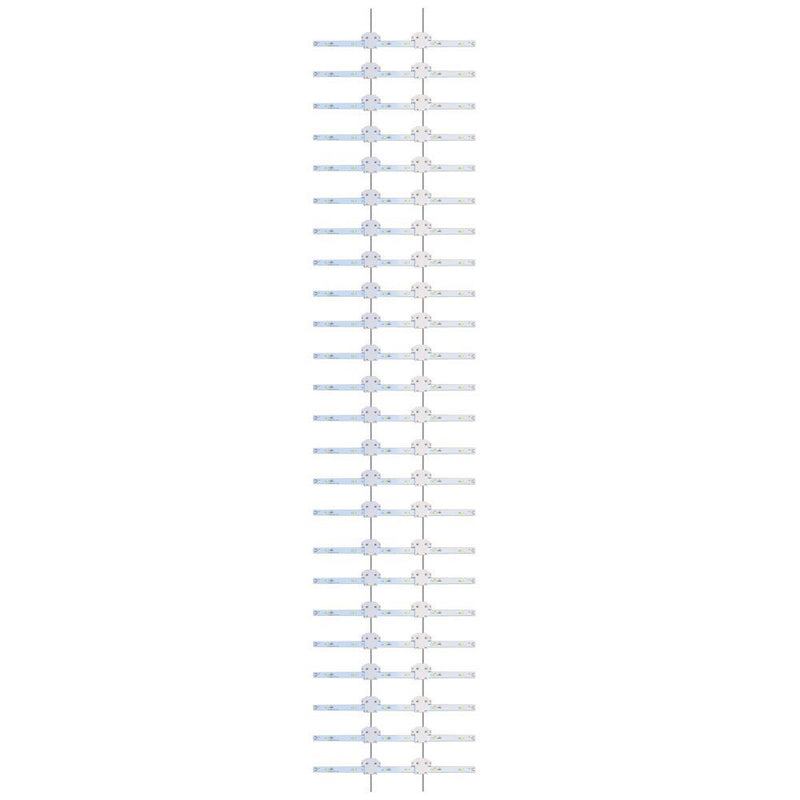

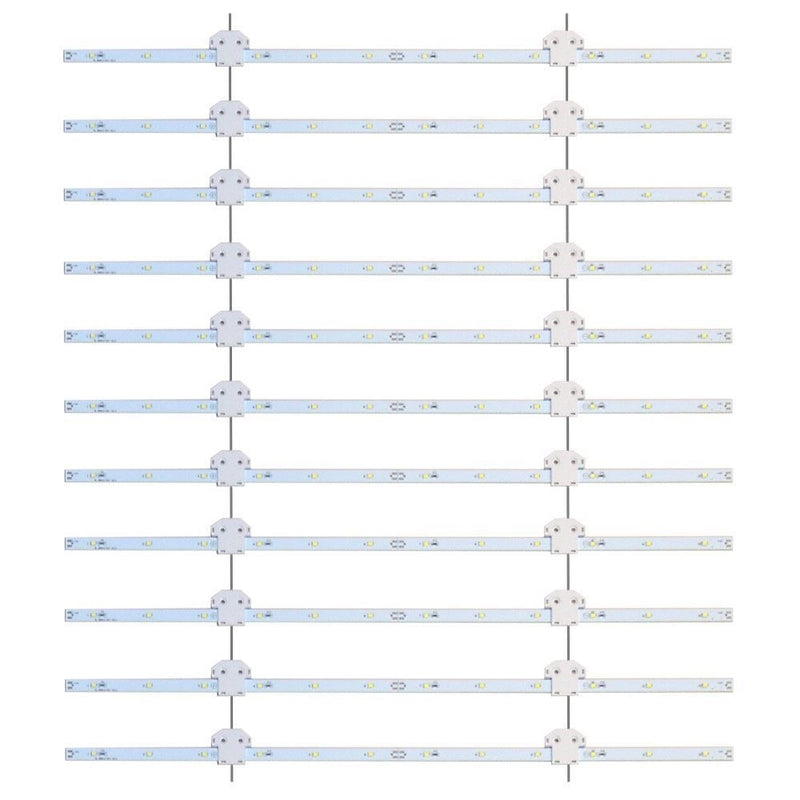

The 12V DC LED Ladder lights are available to order in 92 in x 10 in, 92 in x 20 in, or 92 in x 39 in size options in 6000K Cool White LED CCT.

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with the lighting plan or installation instructions.

* Required: Requires a non-dimming or dimming 12V DC driver. Sold separately.

Key Features

  • No hotspots & uniform illumination
  • Reliable and predictable lighting results
  • Maintenance-free & Cost-effective light source
  • LED Chipsets are high-intensity, ultra-bright, and energy-efficient
  • No RF interference
  • Easy Installation
  • Up to 50,000 hours of Lifespan
  • UL Listed

Applications

  • Retail Display
  • SEG Graphic Display Light Boxes
  • Back-lit Graphics
  • Wall or Ceiling Lighting
  • Custom DIY project

Specifications

View EL-LAD-92X10-140K-12 Spec Sheet

View EL-LAD-92X20-140K-12 Spec Sheet

View EL-LAD-92X39-140K-12 Spec Sheet

  • Brightness:
    • 92X10 in. - 120 Lumens (Per Bar), 4800 Lumens (Per Roll)
    • 92X20 in. - 360 Lumens (Per Bar), 14400 Lumens (Per Roll)
    • 92X39 in. - 720 Lumens (Per Bar), 28800 Lumens (Per Roll)
  • Power:
    • 92X10 in. - 1.2 Watt (Per Bar), 48 Watt (Per Roll)
    • 92X20 in. - 3 Watt (Per Bar), 120 Watt (Per Roll)
    • 92X39 in. - 6 Watt (Per Bar), 240 Watt (Per Roll)
  • Number of LED Chips:
    • 92X10 in. - 6 (Per Bar), 240 (Per Roll)
    • 92X20 in. - 12 (Per Bar), 480 (Per Roll)
    • 92X39 in. - 24 (Per Bar), 960 (Per Roll)
  • Number of LED Bars: 40 (Per Roll)
  • Input Voltage: 12V DC
  • CRI: 90+
  • Environment: IP20 - Dry Location
  • Beam Angle: 120°
  • Bar Lengths: 10 in., 20 in., or 39 in. long
  • Bar Width: 0.4 in / 10.16 mm wide
  • Spacing Between Each Bar: 2 in / 50.8 mm
  • Working Temperature: -20°C - 50°C

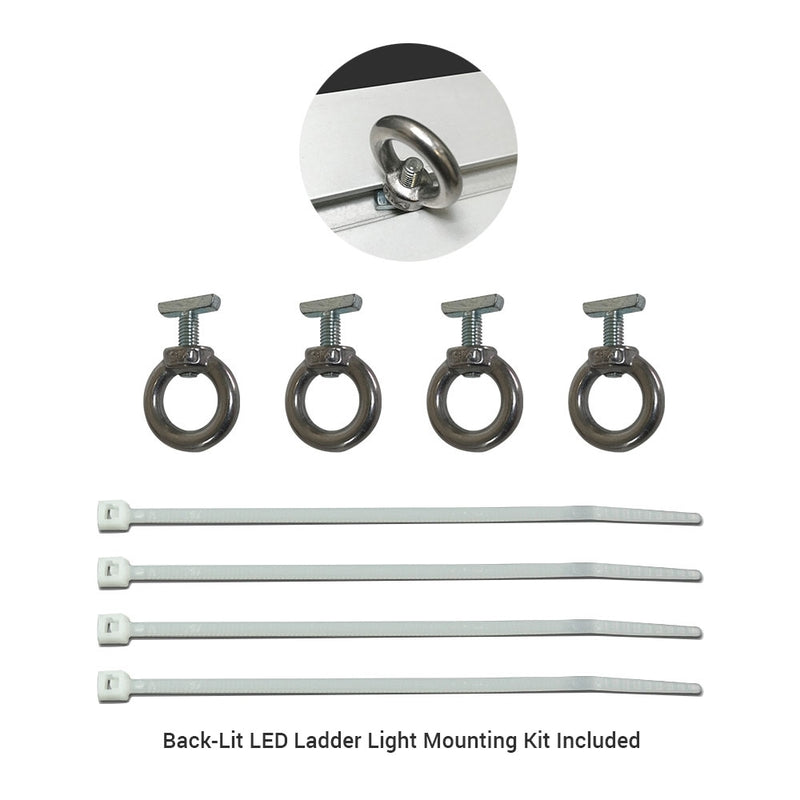

  • Mounting: Hanging with supplied Ring Nuts or use Surface mounting tabs for mechanically fastening with screws
  • Wiring: ~11 inches long 16 AWG stranded lead wires at the top and bottom of each roll
  • Manufacturer: Elumalight
  • Rating: UL Listed
  • Avg. Lifetime: ± 30,000 - 50,000 hours
  • Remarks: *Not to exceed 80% of LED Driver Capacity.
