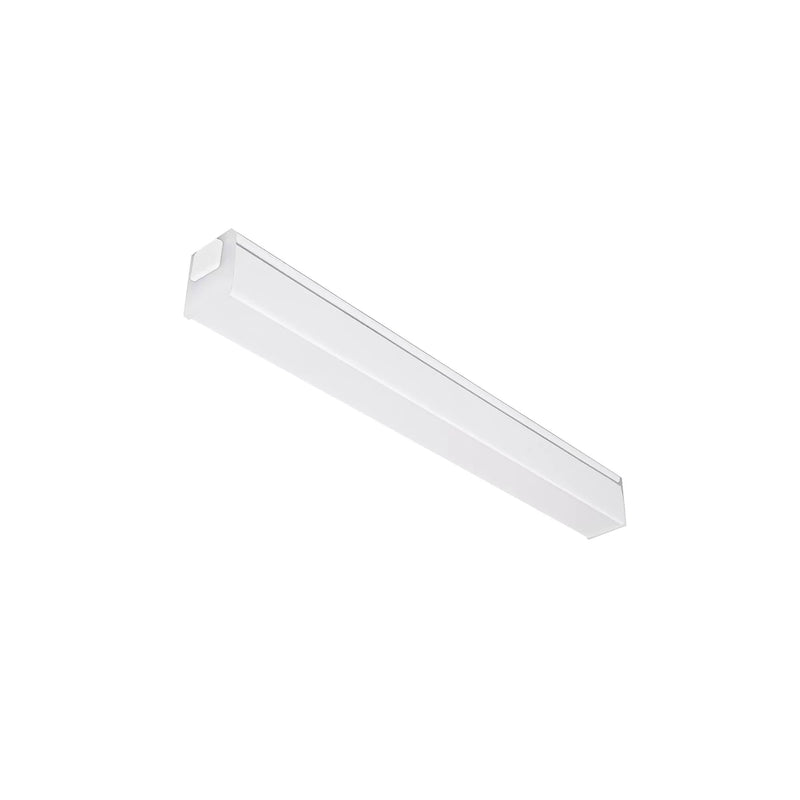

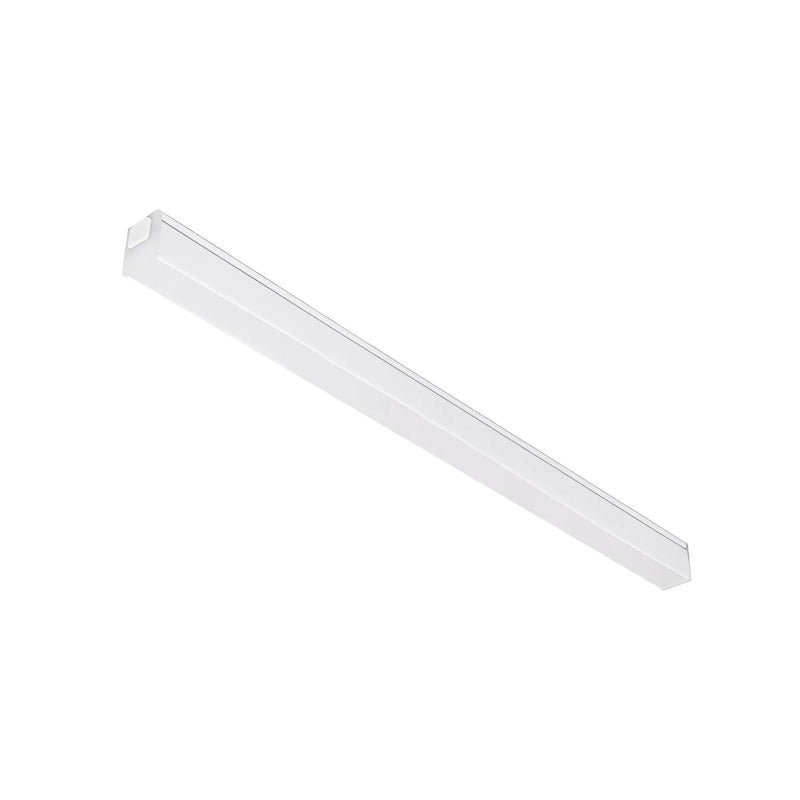

LED Light Bars 120V AC

LED Light Bars 120V AC

SKU EL-LB120-4
$8.92 - $40.59
$8.92
$8.92 - $40.59
$8.92

The 120V LED Lightbar effortlessly creates a continuous, even line of light for a hassle-free installation. Emitting an impressive 200 lumens per foot at 3000K, this lightbar is ideal for illuminating spaces such as under cabinets, in cabinets, coves, displays, and any linear lighting applications. With a range of connectors and accessories available, luminaires can be seamlessly linked together for lengths of up to 40 feet.

* Required: The Power Cords, End-to-End Connector, 6 in. Jumper, and Mounting Clips are required to connect power to the 120V LED Light Bars. Each Sold Separately.

Key Features

  • Uniform Illumination: Creates seamless lighting.
  • 120V input using Driver on Board technology without any power supply
  • Internal magnets for quick installation by using it with Magnet Mount Metal Plates (Sold Separately).
  • High Brightness: Up to 200 lumens per foot.
  • Versatile: Suitable for multiple applications.
  • Expandable: Connectors extend up to 40 feet.

Applications

  • Decorative Lighting for Tradeshows, Exhibition, and Retail Displays
  • Architectural lighting for corridors, canopies, archways, or windows
  • Downlighting or Uplighting Applications
  • Backlighting or Edge-Lighting
  • Under-cabinet, Under-Counter, or cove lighting

Specifications

View Spec Sheet

Product SKUs EL-LB120-4 EL-LB120-6 EL-LB120-12 EL-LB120-24 EL-LB120-48
Wattage (MAX) 1W 1.5W 3W 6W 12W
Brightness 80 Lumen 120 Lumen 250 Lumen 490 Lumen 980 Lumen
Color Temperature  CCT  Selectable 3000K 3000K 3000K 3000K 3000K
Color Rendering Index 90+ 90+ 90+ 90+ 90+
Beam Angle 120° 120° 120° 120° 120°
Dimming Standard Dimmable down to 10% with Triac or ELV Dimmable down to 10% with Triac or ELV Dimmable down to 10% with Triac or ELV Dimmable down to 10% with Triac or ELV Dimmable down to 10% with Triac or ELV
Input Voltage 120V AC 120V AC 120V AC 120V AC 120V AC
Power Factor ≥0.9 ≥0.9 ≥0.9 ≥0.9 ≥0.9
Dimensions L4*W0.55*H0.67in L6*W0.55*H0.67in L12*W0.55*H0.67in L24*W0.55*H0.67in L48*W0.55*H0.67in
Operating Ambient Temp.(℃) -10~45°C -10~45°C -10~45°C -10~45°C -10~45°C
IP Rating IP20 IP20 IP20 IP20 IP20
Material Aluminum+Plastic Aluminum+Plastic Aluminum+Plastic Aluminum+Plastic Aluminum+Plastic
Lifespan (L70 Life) 50,000h 50,000h 50,000h 50,000h
Warranty 5 Year Limited Fixture Warranty 5 Year Limited Fixture Warranty 5 Year Limited Fixture Warranty 5 Year Limited Fixture Warranty 5 Year Limited Fixture Warranty
Manufacturer Elumalight Elumalight Elumalight Elumalight Elumalight
Certification Standard ETL, RoHS ETL, RoHS ETL, RoHS ETL, RoHS ETL, RoHS
