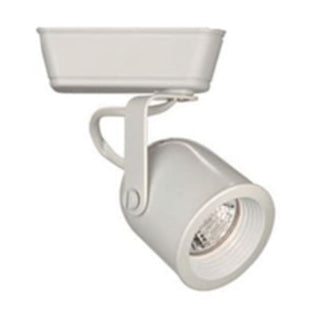

LED Low Voltage Round Back Track Heads

SKU EL-TKH19-BK & 5W MR16 30K
$34.71 - $34.71
$34.71
$34.71 - $34.71
$34.71

LED MR-16 Low Voltage Round Back Track Head for use with the H-Style Track System.

For J or L style versions track head pricing and availability, give us a call at 800.822.8527 or e-mail sales@step1dezigns.com.

Optional LED Track Lighting Accessories are available. sold separately.

Key Features

  • Adjustable track adaptor to allow for use with single or double circuit track
  • Great for Retail Store Display Fixtures
  • 90-degree vertical movement of 358-degree horizontal rotation
  • Metal housing, round back with baffle
  • LED 5 Watt MR-16 Bulb Included with 3000K or 5000K LED CCT options
  • Low Voltage Electronic Transformer Included
  • UL Listed

Applications

  • Tradeshow Booth
  • Exhibit and Displays
  • Retail Store Lighting
  • Commercial Application

Specifications

View Spec Sheet

Brightness 400 Lumens
Power (Watts) 5 watt
Voltage 12V DC
LED CCT 3000K or 5000K
CRI 90+
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 40°

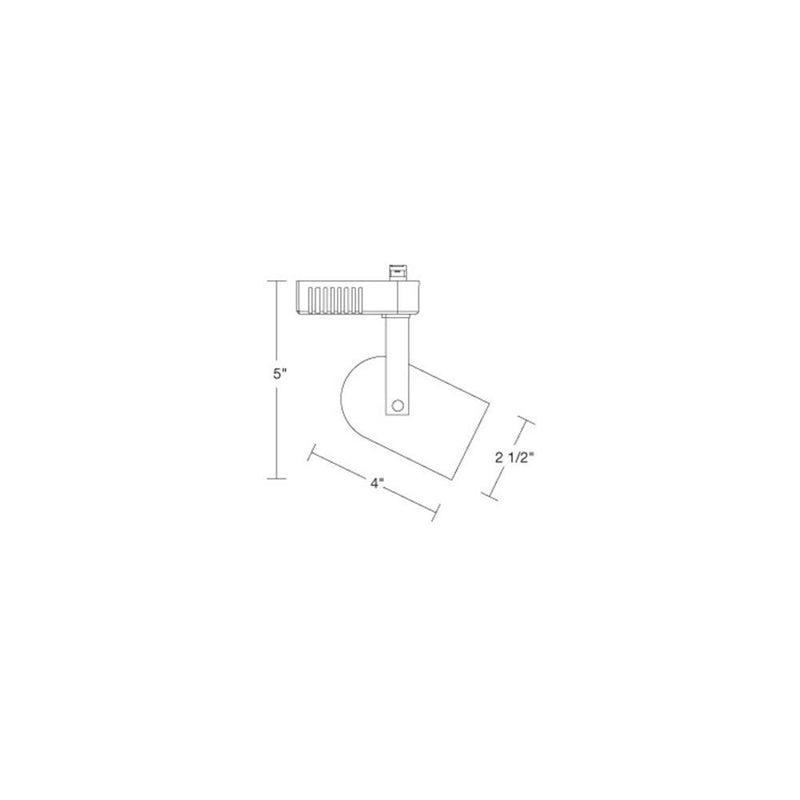

Track Head Length
 4 in / 101 mm
Track Head Diameter
 2.5 in / 63 mm
Track Head Max Ext.
 5 in / 127 mm
Finish
 Black
Manufacturer Elumalight
Rating UL Listed
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 2 years limited
