LED LumaStrip Module Lights 14.25 or 18.5 in IP20

SKU EL-LUM-30K-15
$22.40 - $29.00
$26.40
$22.40 - $29.00
$26.40

24V DC LED LumaStrip Lights are designed to provide the superior-quality lighting outputs. They are great for large retail displays and graphic lightboxes. We have designed the LED LumaStrip Light Modules that give you the best performance and versatility.

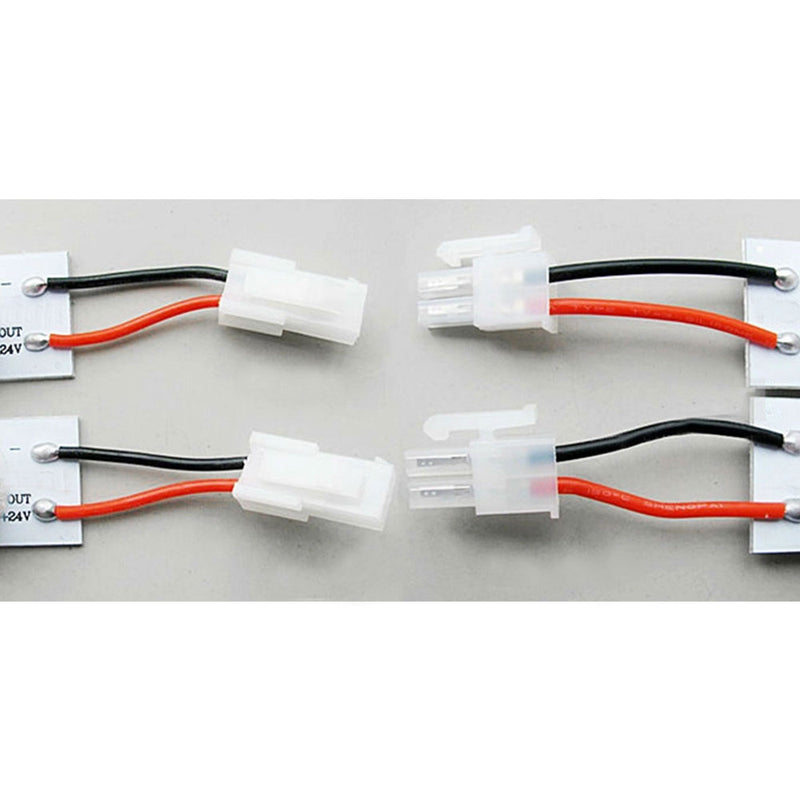

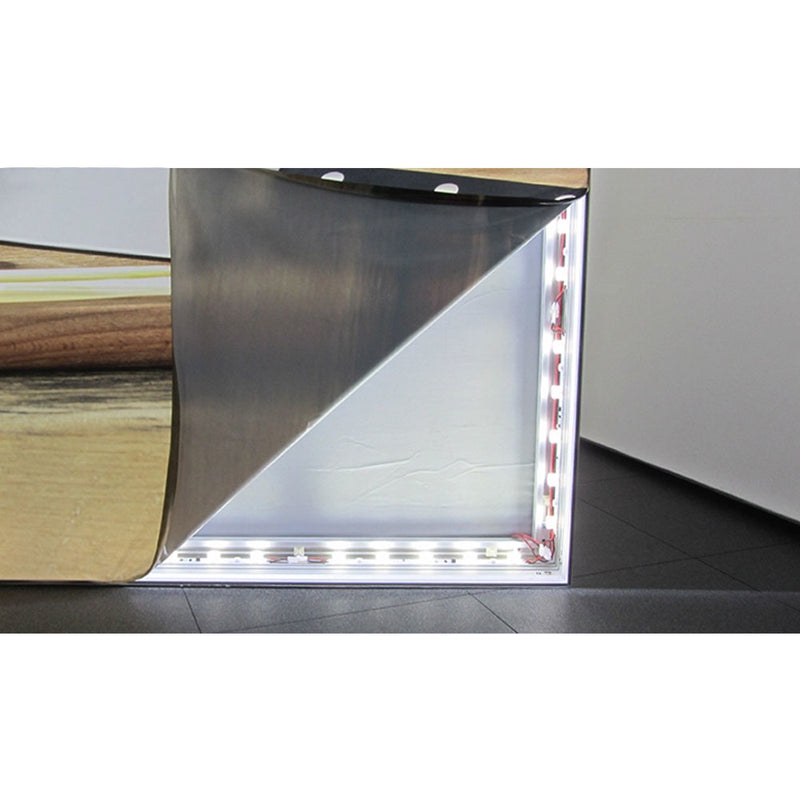

LED Lumastrip Lights are energy efficient, frameless, and low profile. Each Lumastrip Lights can be linked together with supplied connectors for continuous run. By simply placing these fixtures on the interior of any extrusion, Lumastrip will effectively showcase your graphic or product evenly illuminating the entire display.

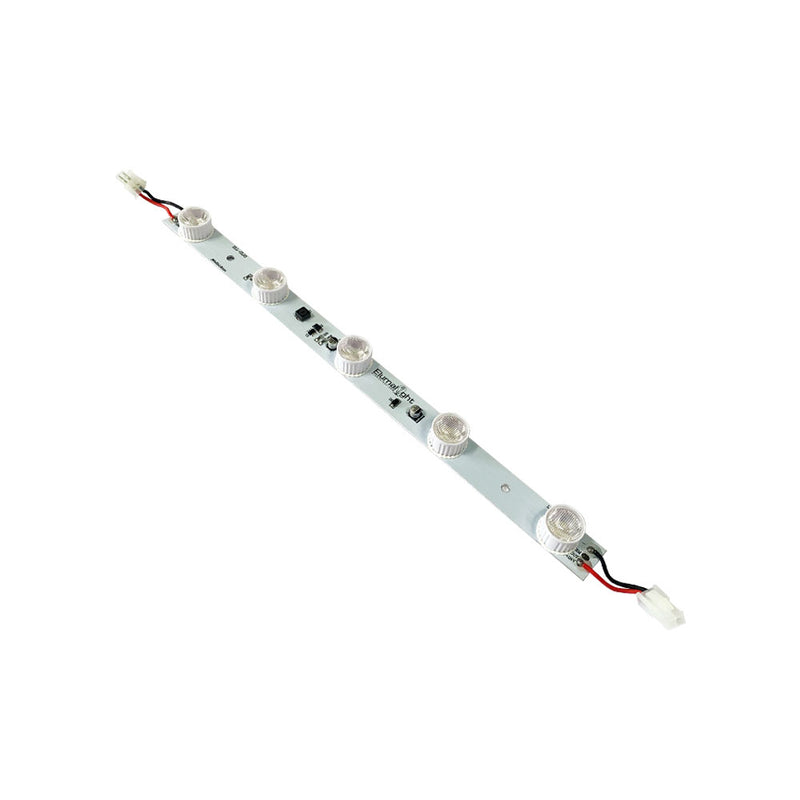

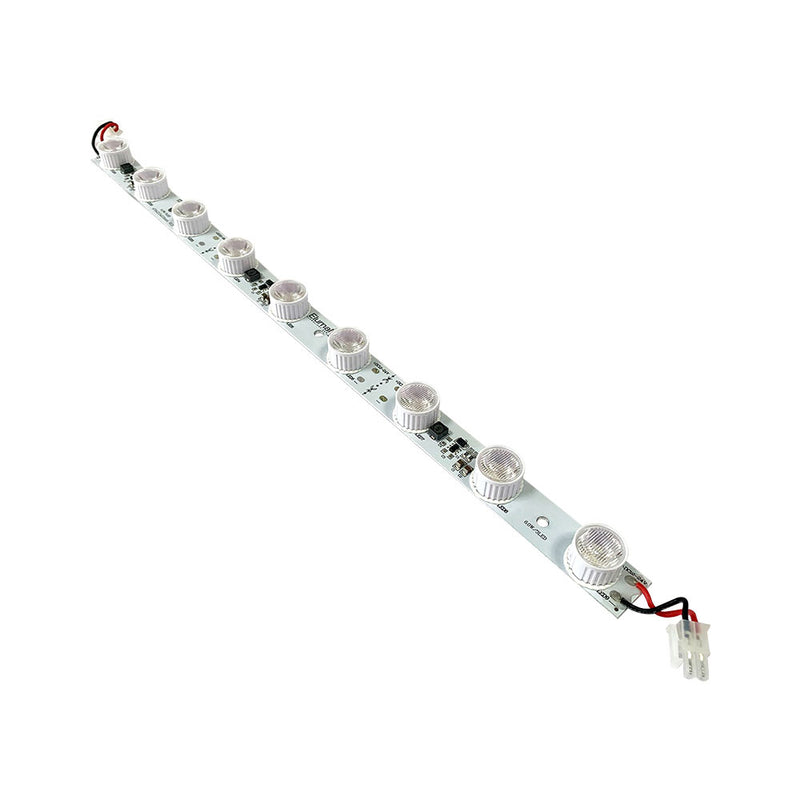

Each of the LED LumaStrip Light Modules utilizes a diffuser lens around the LED chipset to distribute lights evenly at a beam angle up to 60°. This allows it to illuminate shallow lightboxes with virtually no hot spots. Available in 14.25 inches or 18.5 inches length options.

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.

* Required: Requires 24V DC LED Power Supply and LED Lumastrip Power Feed. Sold Separately. We recommend using the 24V DC Linear Driver for SEG frames.

Key Features

  • No hotspots & uniform illumination
  • Maintenance-free & Cost-effective light source
  • LED Chipsets are high intensity, ultra-bright, and energy-efficient
  • No RF interference
  • Easy Installation
  • Up to 50,000 hours Lifespan
  • UL Listed

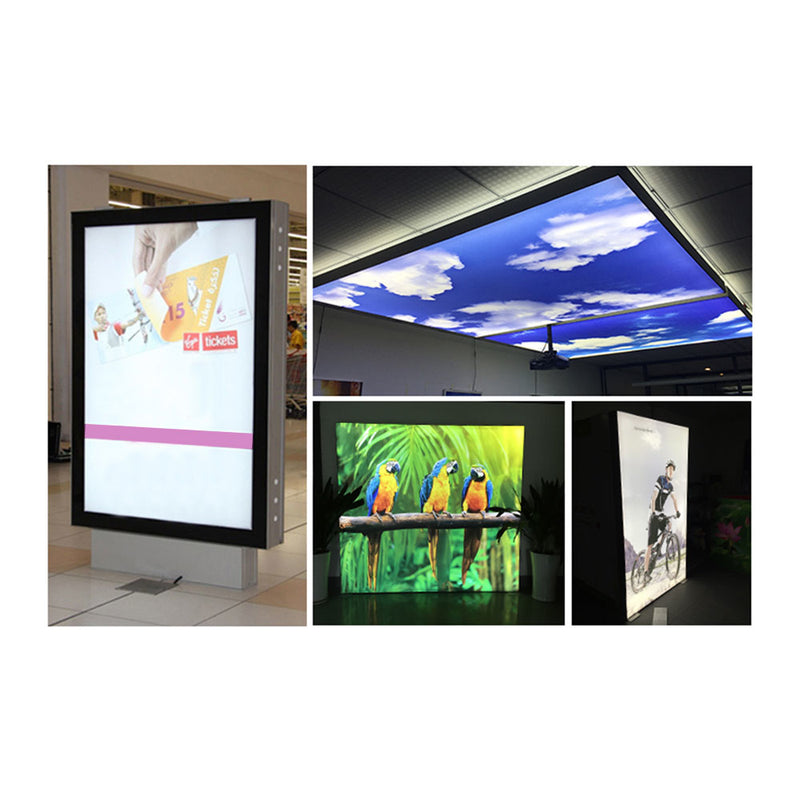

Applications

  • Retail Display
  • SEG Graphic Display Light Boxes
  • Back-lit Graphics
  • Custom DIY projects

Specifications

View Spec Sheet

Brightness 14.25 in. - 1200 Lumens
18.5 in. - 1800 Lumens
Power (Watts) 14.25 in. - 12 Watt
18.5 in. - 18 Watt
Input Voltage 24V DC
LED CCT & Colors 14.25 in. - 6000K Cool White
14.25 in. - 3000K Warm White
18.5 in. - 6000K Cool White
18.5 in. - Blue
CRI 90+
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 60°
LumaStrip Length 14.25 in or 18.5 in long
Module Width 1 in / 25.4 mm wide
Module Height 0.5 in / 12.7 mm thick
Mounting Screw through pre-drilled holes on each module, screws not included
Accessories
 EL-LUM-PF 12 in Power Feed
EL-LUM-JMP 20 in M/F Jumper
Manufacturer Elumalight
Rating UL Listed
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 year limited
Remarks *Not to exceed 80% of LED Driver Capacity. Not recommended to be surface mounted directly onto wooden surfaces.
