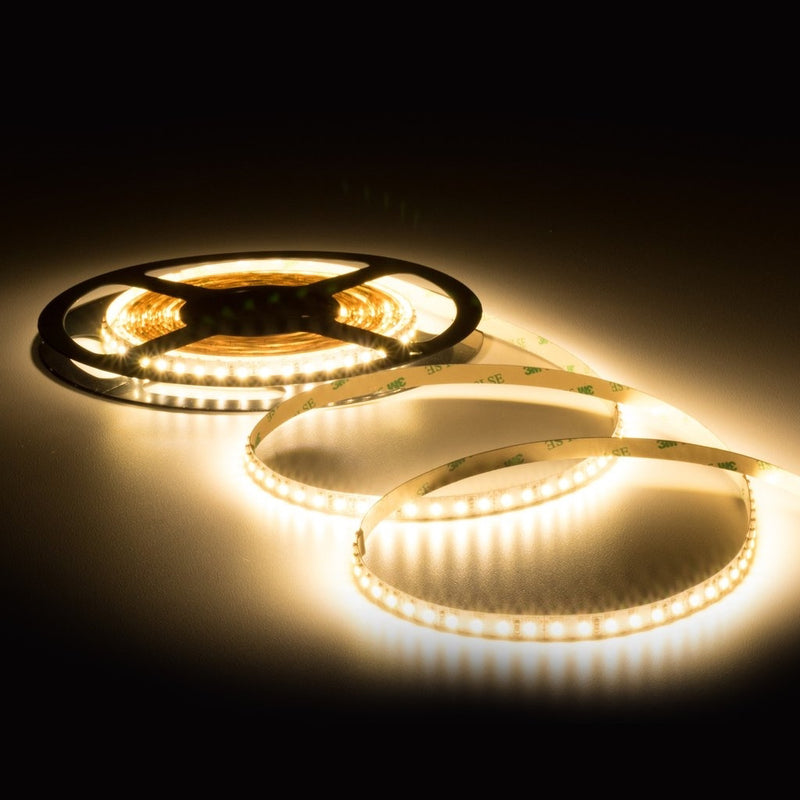

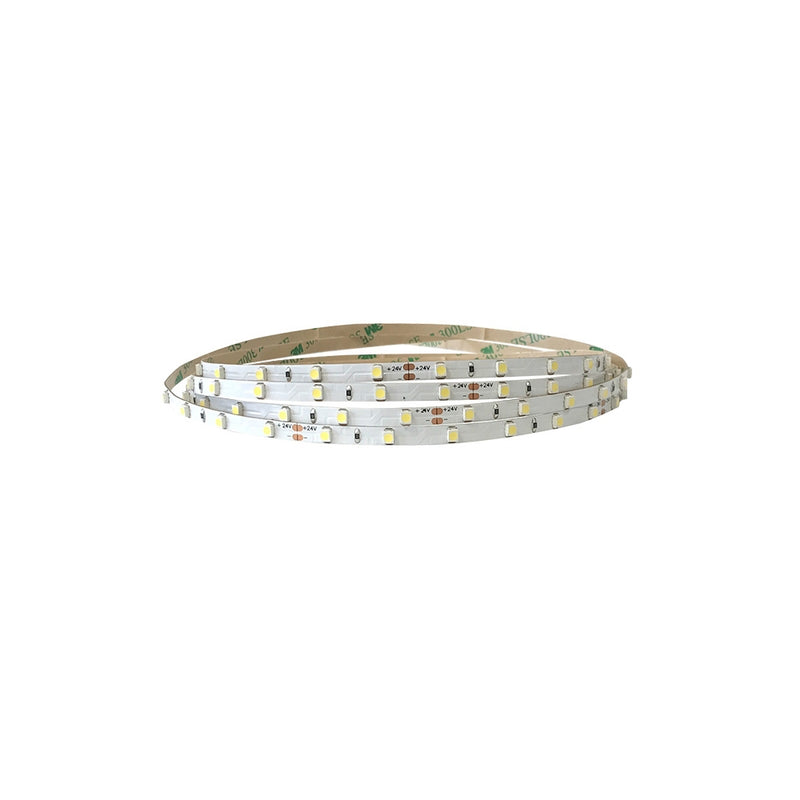

LED Mini Standard 5mm Tape Lights 24V DC 16 ft Reel

SKU EL-MI4-27K-16-24
$25.50 - $25.50
$25.50
$25.50 - $25.50
$25.50

The 24V DC LED 5mm wide Mini Standard Output Tape Lights are made with commercial-grade SMD 3528 Chipsets with 18 LED Chips per foot length. Featuring 85+ CRI with high output and even illumination and is perfectly designed for tradeshow decoration, exhibition lighting, retail display lighting, back-lighting applications, and more. It gives you the freedom to easily design and install lighting for almost any surface or object.

The 24V DC LED 5mm Mini Standard Output Strip Lights are fully dimmable when used with LED Dimmable Drivers. It is UL listed to ensure the durability and safety of the LED tape light's lifespan.

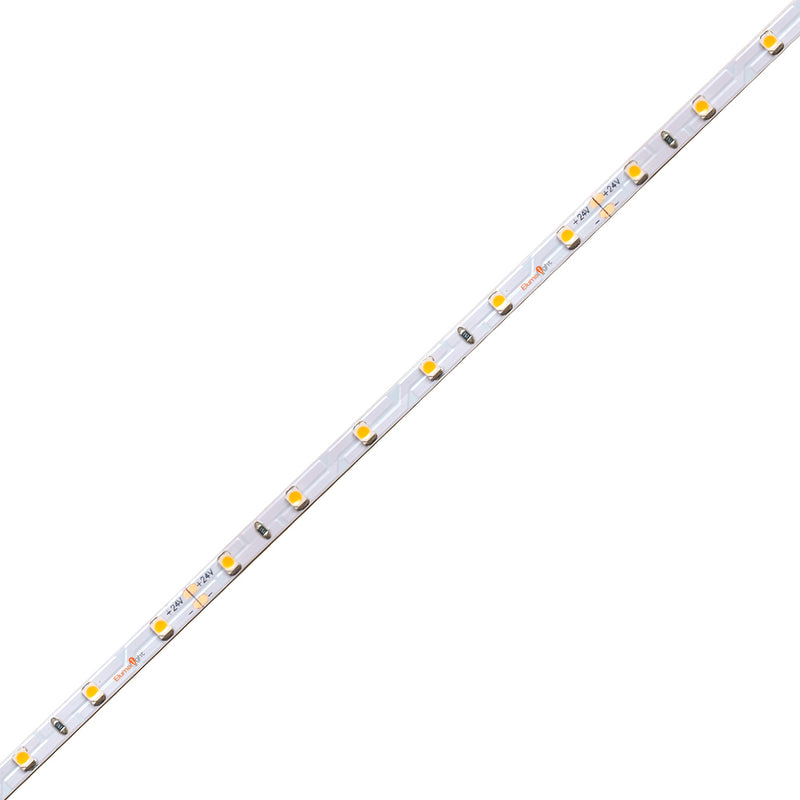

The 5mm wide LED Strips are made with wire leads on the ends of each reel and can be cut every 4 inches at its cut marking points, allowing you to cut pieces to the length desired. Available in various CCT options. Sold in 16 ft reels. Hard-wiring and soldering upon installation.

* Required: Requires a non-dimming or dimming 24-volt DC driver.

Key Features

  • Maintenance-free
  • Solid-State Construction
  • High shock and Vibration Resistance
  • SMD 3528 LED Chips are high-intensity, ultra-bright, and energy-efficient
  • No RF interference
  • Up to 50,000 hours of Lifespan
  • UL, ETL Listed

Applications

  • Decorative Lighting for Tradeshows, Exhibition, and Retail Displays
  • Architectural lighting for corridors, canopies, archways, or windows
  • Downlighting or Uplighting Applications
  • Backlighting or Edge-Lighting
  • Under-cabinet, Under-Counter, or cove lighting
  • Custom DIY projects

Specifications

View Spec Sheet

Brightness 176 Lumens/ft
577 Lumens/meter
Power (Watts) 1.8 watt/ft
5.9 watt/meter
Input Voltage 24V DC
LED CCT & Colors 2700K Extra Warm White
3000K Warm White
6000K Cool White
CRI 90+
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 120°
LED Density 18 LEDs/ft
300 LEDs/reel
LED Chip Size SMD 3528
LED Spacing 0.66 in / 16.7 mm
Length 16.4 ft / 5 meters long
Width 0.19 in / 5mm wide
Height 0.06 in / 1.6 mm thick
Cutting Increment 4 in / 101.6 mm
at cut marking
Adhesive Backing 3M Adhesive
Manufacturer Elumalight
Rating UL, ETL, RoHS
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 years limited
Power Supplies
 24V DC Drivers
Accessories LED Tape Light Accessories
