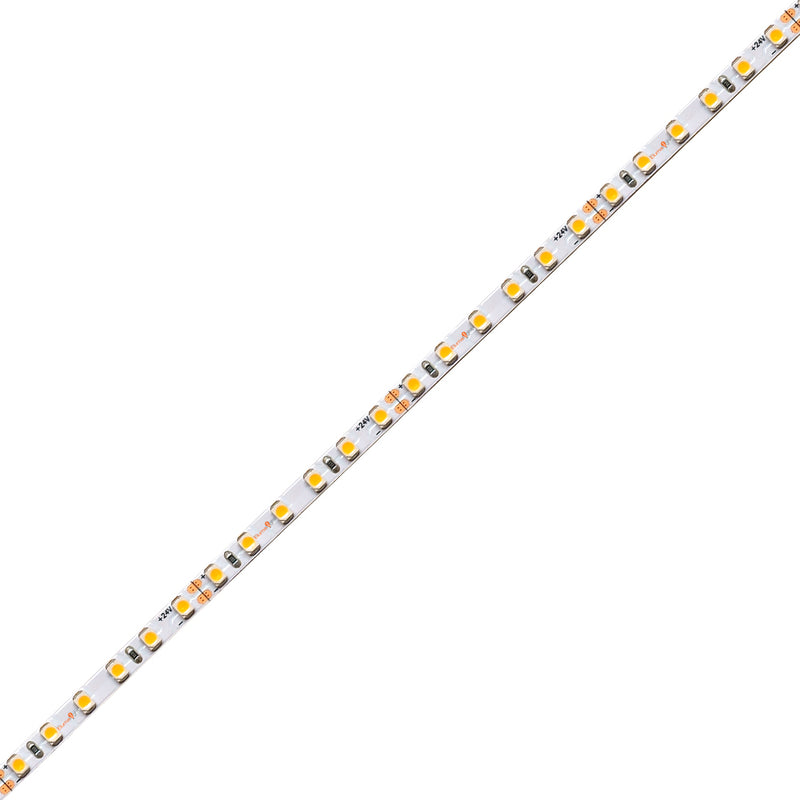

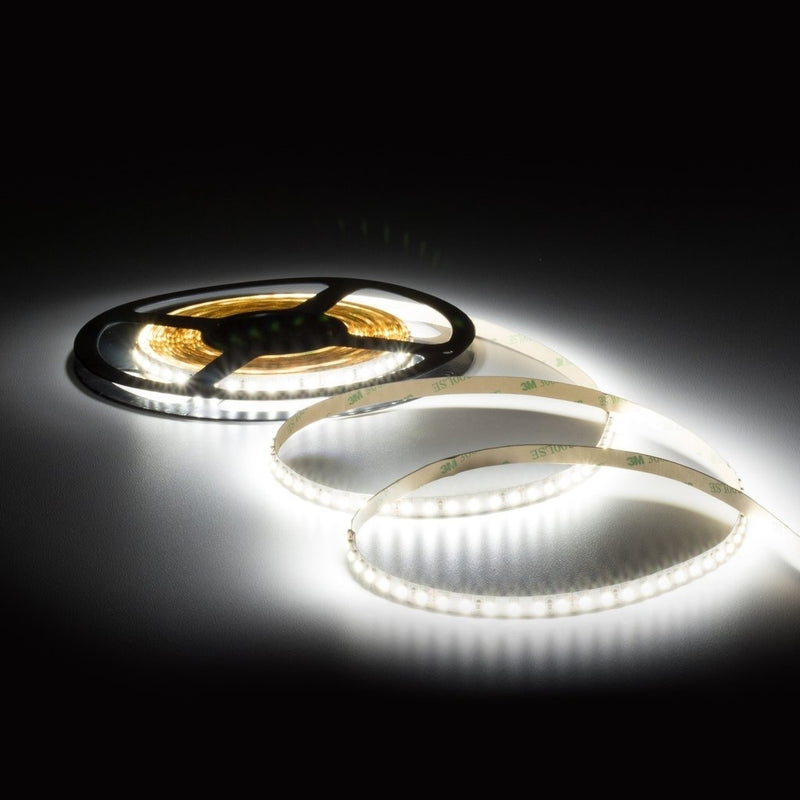

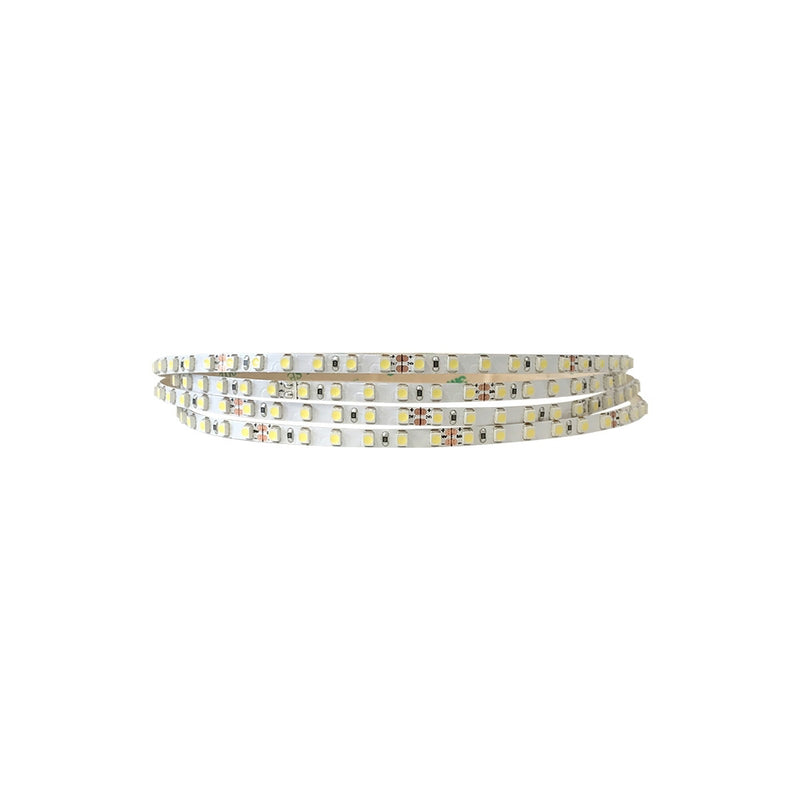

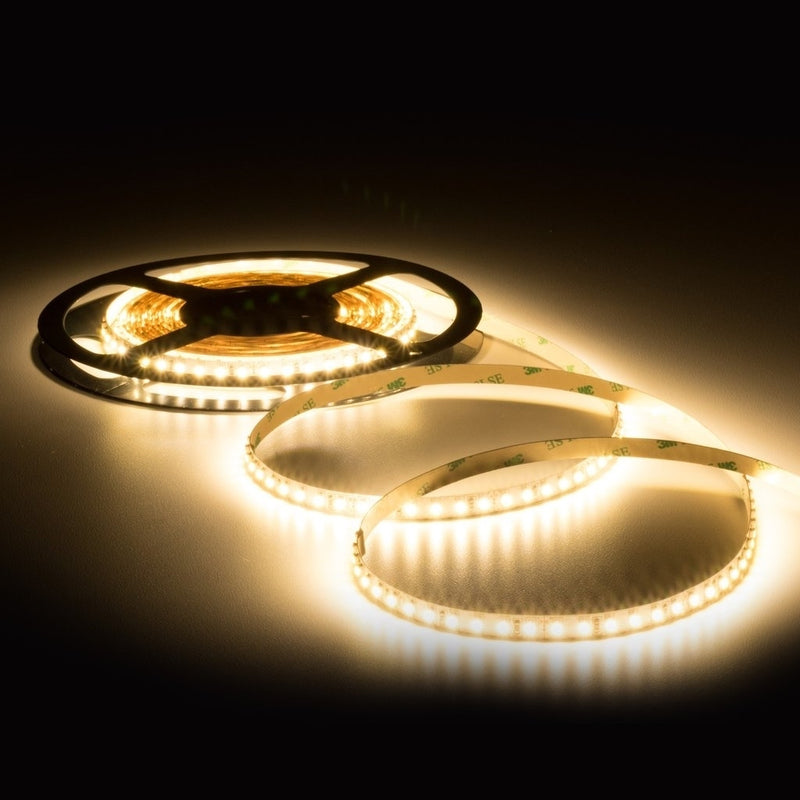

LED Mini High Output 5mm Tape Lights 16 ft Reel

SKU EL-MI5-30K-16-12
Original price $32.90 - Original price $32.90
Original price
$32.90
$32.90 - $32.90
Current price $32.90

The LED 5mm Width Mini High Output Tape Lights are made with commercial-grade SMD 3528 Chipsets with 36 LED Chips per foot length. The Mini LED strips to feature 85+ CRI with high output and even illumination and are perfectly designed for tradeshow decoration, exhibition lighting, retail display lighting, back-lighting applications, and more. It gives you the freedom to easily design and install lighting for almost any surface or object.

The LED 5mm Mini High Output Strip Lights are fully dimmable when used with LED Dimmable Drivers, see related products. It is UL listed to ensure the durability and safety of the LED tape light's lifespan.

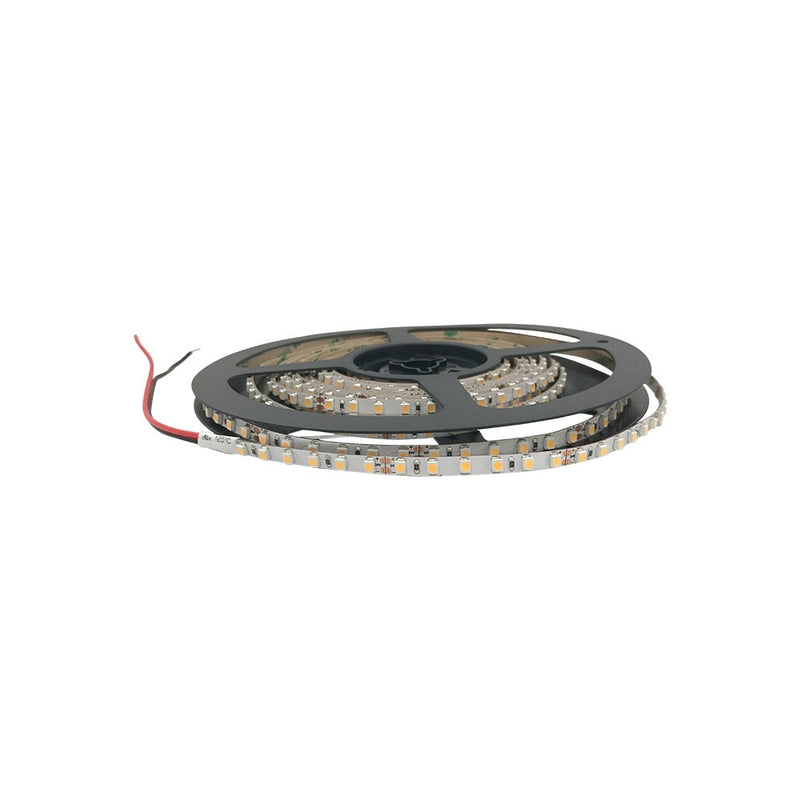

The 5mm wide High Output LED Strips are made with wire leads on the ends of each reel and can be cut every 2 inches at its cut marking points, allowing you to cut pieces to the length desired. Available in 16 ft reels. Hard-wiring and soldering upon installation.

* Required: Requires a non-dimming or dimming 12 volt DC driver for 12 volts LED Tape Light. Requires a non-dimming or dimming 24 volt DC driver for 24 volts LED Tape Lights.

Key Features

  • Maintenance-free
  • Solid-State Construction
  • High shock and Vibration Resistance
  • SMD 3528 LED Chips are high-intensity, ultra-bright, and energy-efficient
  • No RF interference
  • Up to 50,000 hours of Lifespan
  • UL, ETL Listed

Applications

  • Decorative Lighting for Tradeshows, Exhibition, Retail Displays
  • Architectural lighting for corridors, canopies, archways, or windows
  • Downlighting or Uplighting Applications
  • Backlighting or Edge-Lighting
  • Under-cabinet, Under-Counter, or cove lighting
  • Custom DIY projects

Specifications

 View Spec Sheet

Brightness 352 Lumens/ft
1155 Lumens/meter
Power (Watts) 3.2 watt/ft
10.5 watt/meter
Input Voltage 12V or 24V DC
LED CCT & Colors 6000K Cool White (24V DC only)
3000K Warm White (12V or 24V DC)
2700K Extra Warm White (24V DC only)
CRI 90+
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 120°
LED Density 36 LEDs/ft
~600 LEDs/reel
LED Chip Size SMD 3528
LED Spacing 0.33 in / 8.4 mm
Length 16.4 ft / 5 meters long
Width 0.19 in / 5mm wide
Height 0.06 in / 1.6 mm thick
Cutting Increment 2 in / 50.8 mm
at cut marking
Adhesive Backing 3M Adhesive
Manufacturer Elumalight
Rating UL, ETL, RoHS
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 years limited
Power Supplies
24V DC Drivers, 12V DC Drivers
Accessories LED Tape Light Accessories
