LED PAR Classic Cone Track Heads

$32.18
SKU EL-TK221-PAR20-30K-BK

LED PAR Classic Cone Track Heads for use with the H-Style Track System. Call 800.822.8527 or e-mail sales@step1dezigns.com for J or L style versions.

 * Required: Requires LED Track Lighting Accessories. sold separately.


Key Features

  • Adjustable track adapter to allow for use with single or double circuit track
  • 90-degree vertical movement of 358-degree rotation
  • Metal housing, Classic with Cone Style Track Head
  • Included LED PAR20, PAR30, or PAR38 Bulbs with 3000K or 5000K CCT options
  • UL Listed

Applications

  • Tradeshow Booth
  • Exhibit and Displays
  • Retail Store Lighting
  • Commercial Application

Specifications

 View Spec Sheet

Voltage 120V AC
Bulb Options
LED PAR20 - 9 Watts - 500 Lumens
LED PAR30 - 15 Watts - 800 Lumens
LED PAR38 - 20 Watts - 1200 Lumens
Bulb Base
Medium (E26)
LED CCT 3000K or 5000K
CRI 80+
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 40°

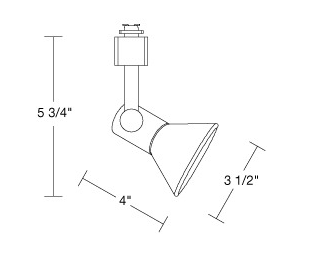

PAR20 Track Head Length
4 in / 101 mm
PAR20 Track Head Diameter
3.5 in / 89 mm
PAR20 Track Head Max Ext.
5.75 in / 146 mm
PAR30 Track Head Length
4.25 in / 108 mm
PAR30 Track Head Diameter
4.25 in / 108 mm
PAR30 Track Head Max Ext.
7.5 in / 190 mm

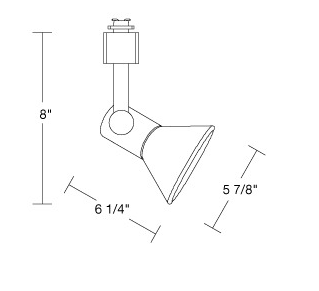

PAR38 Track Head Length
6.25 in / 159 mm
PAR38 Track Head Diameter
5.88 in / 149 mm
PAR38 Track Head Max Ext.
8 in / 203 mm
Finish
Black or White
Manufacturer Elumalight
Rating UL Listed
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 2 years limited
