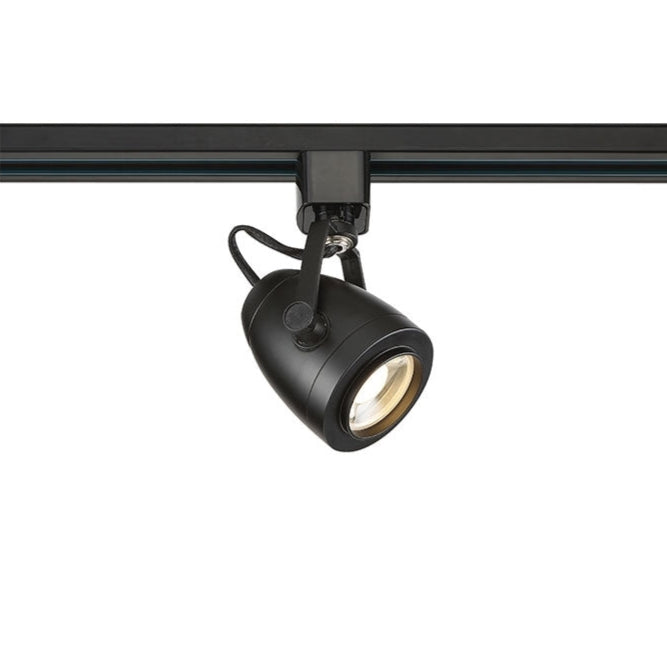

LED Pinch Back Track Heads

SKU EL-TKH414-24-30K-BK
Original price $47.70 - Original price $47.70
Original price
$47.70
$47.70 - $47.70
Current price $47.70

The LED Pinch Back Track Head is made with premium materials and available in Black or White finishes with Narrow 24° or Wide 36° beam spread options.

This LED Track Head offers great function and value for your lighting project. It is part of Step 1 Dezigns Track Lighting Collection, so make sure to check out other LED track lighting fixtures to accessorize your space.

Optional LED Track Lighting Accessories are available. sold separately.

Key Features

  • Great for Retail Store Display Fixtures
  • 90-degree vertical movement of 358-degree horizontal rotation
  • Use with H-Style Track System
  • Die-Cast Aluminum Body
  • Integral LED Bulb Included
  • UL Listed

Applications

  • Tradeshow Booth
  • Exhibit and Displays
  • Retail Store Lighting
  • Commercial Application

Specifications

View Spec Sheet

Brightness 820 Lumens
Power (Watts) 12 watt
Input Voltage 120V AC
LED CCT 3000K
CRI 90+
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 24° or 36°
Track Head Width
2.76 in / 70 mm
Track Head Height
2.76 in / 70 mm
Track Head Max Ext.
5.6 in / 142 mm
Finish
Black or White
Manufacturer Elumalight
Rating UL Listed
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 2 years limited
