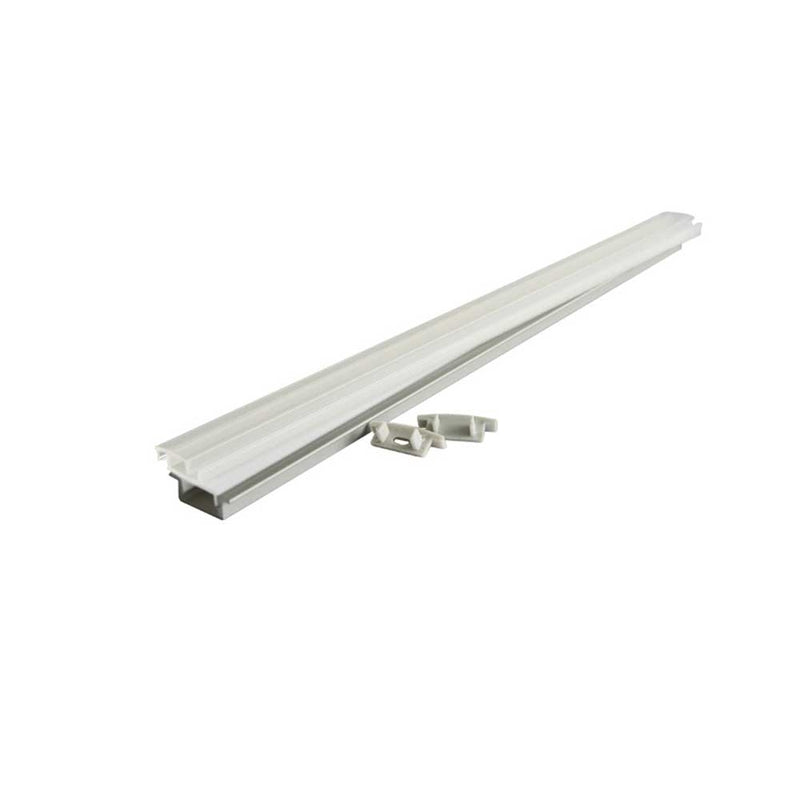

LED Slim Top Flange Aluminum Channel

SKU EL-CH-101-FR
Original price $18.75 - Original price $18.75
Original price
$18.75
$18.75 - $18.75
Current price $18.75

LED Slim Top Flange Aluminum Channel includes our aircraft grade aluminum channel and compatible frosted or opal white finish lens. Creating a modern and sleek style LED strip light installation has never been easier.

Key Features

  • It comes in 2-meter sections and can be custom-cut to any length.
  • 17.1 mm wide by 8.8 mm height.
  • Perfect for mounting LED Strip Light up to 10 mm in width.
  • Rigid and dustproof housing can be surface or flush recess mounted.
  • Includes aluminum channel, diffuser, and 2 end caps.
  • The Channel lens protects LED strip light from the environment and creates diffused lighting effects. Easy to install, simply clip the diffuser lens into the aluminum channel.
  • LED Aluminum Mounting Channels do not qualify for Free Standard Shipping offer. Additional shipping charges will be billed separately.
  • Aluminum channels are not returnable due to the packaging and shipping costs.

Applications

  • For use with LED Strip lights up to 10 mm in width.

Specifications

View Spec Sheet

Channel Height 0.35 in / 8.8 mm thick
Inside Width 0.46 in / 11.7 mm wide
Outside Width 0.91 in / 23.11 mm wide
Length 78.74 in / 2 meters long
Recessed Depth
0.28 in / 7 mm deep
LED Strip Width 10 mm
Lens Finish Frosted or Opal White
Environment Indoor Use - Dry Location
Channel Finish Aluminum
Manufacturer Elumalight
