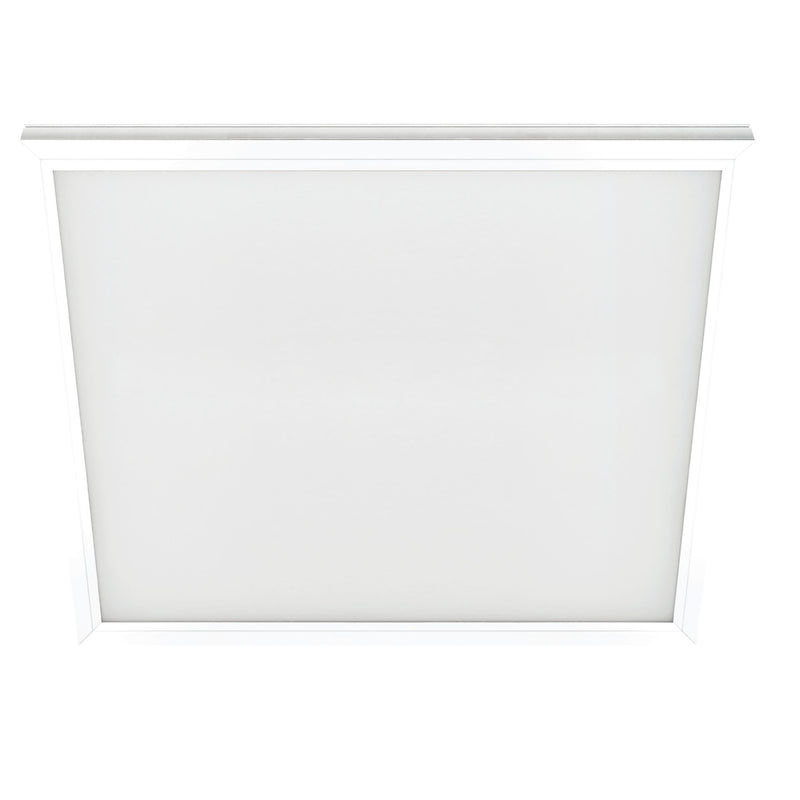

LED CCT Selectable Panel Light 24 in x 24 in

$118.20
SKU EL-45N22-CCT

Step 1 Dezigns LED CCT Selectable Flat Panel Light is designed for any environment without the need for any special smart home hardware or apps. The patented selectable color temperature feature allows users to choose warm white, cool white or daylight on the fixture or to adjust after install by toggling a wall switch.

A sleek ultra-slim, one-inch low profile design features innovative edge-lit LEDs that direct the light downward creating uniform light distribution without hot spots, flicker, or glare. Bright LED lighting is integrated with each of the fixtures, offering up to 50,000 hours of life and saving in energy consumption compared with similar incandescent light fixtures.

The LED CCT Selectable Flat Panel Lights 2 x 2 Ft. Panel Light is ideal for any office, retail, healthcare, or educational environment. It replaces Fluorescent Troffer with integrated dimmable capability; it can work with daylight harvesting control systems for additional energy savings.

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with lighting plan or installation instructions.

Key Features

  • The ultra-modern slim edge-lit design makes any room architecturally pleasing
  • Preset color temperature or adjust after install. Get warm, cool or daylight with a flip of a switch
  • Energy-efficient LED technology uses considerably less power compared to equivalent incandescent lights
  • LED lighting providing energy savings over conventional light fixtures and 50,000 hours of reliable light.
  • Energy Star certified fixture

Applications

  • Lighting for Tradeshows, Exhibition, Retail Displays
  • Retail Stores, Restaurants, Clubs, Lounges, Meeting Room
  • Corridor, Hallway, Living Room
  • Supermarket lighting
  • General office lighting
  • Warehouse lighting
  • Custom DIY projects

Specifications

 View Spec Sheet

Power (Watts) 48 watts
Input Voltage 120-277V AC
Brightness
4250 Lumen
LED CCT Selectable 3000K, 4000K, 5000K
Dimmable
No
IP Rating IP20
Environment Dry Location
LED Beam Angle 114°
Fixture Length & Width
23.75 in / 603.25 mm
Fixture Height
0.908 in / 23.06 mm thick
Mounting
T-Bar Drop Ceiling
Finish
Acrylic Diffuser in White Frame
Manufacturer Elumalight
Rating UL, ETL, CE, ROHS, EnergyStar
Avg. Lifetime ± 30,000 - 50,000 hours
Warranty 3 years limited
