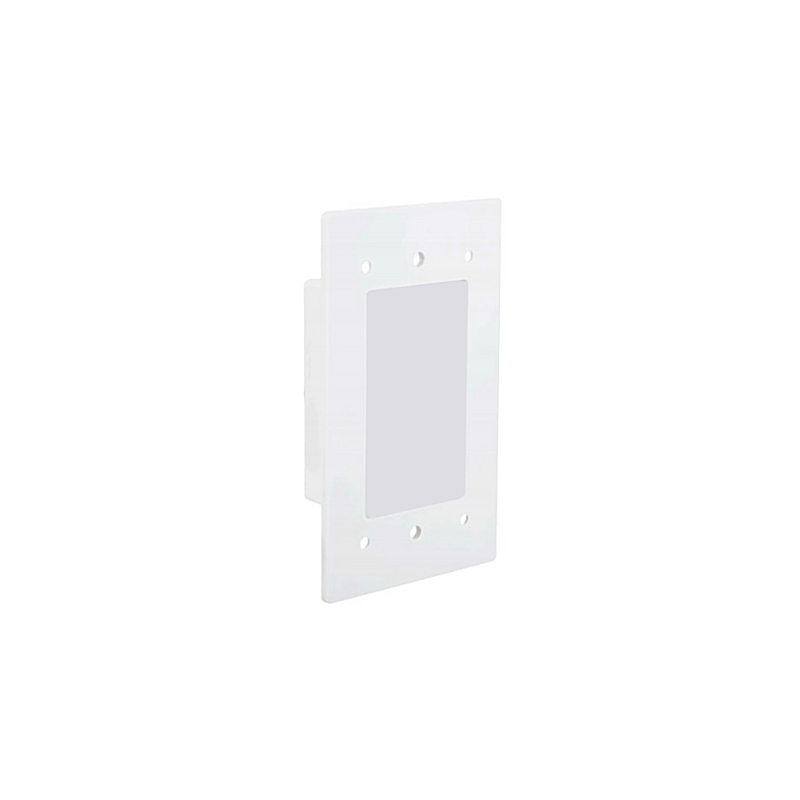

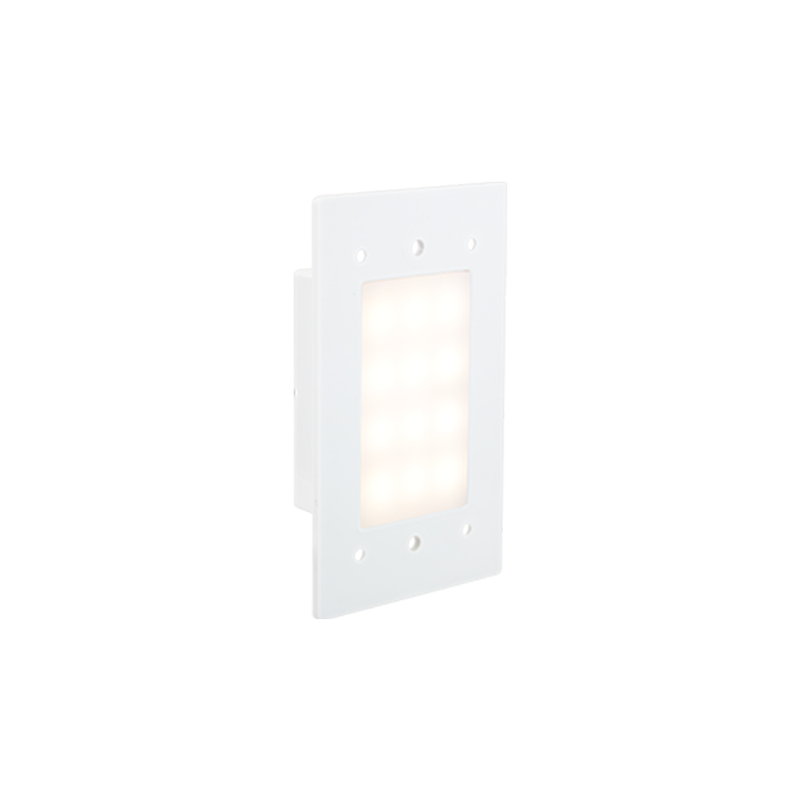

LED Step Light Modules
Step 1 Dezigns LED Step Light Modules are energy efficient and provide maintenance-free illumination with a long lifespan. They are IP65 rated suitable for indoor or outdoor environments. Each LED Step Light comes with a 2 in. x 4 in. gasket for exterior applications.
It is a recessed LED light fixture that is an excellent retrofit for the staircase, stairway, and pathway lighting. The small size makes it versatile enough for infinite applications.

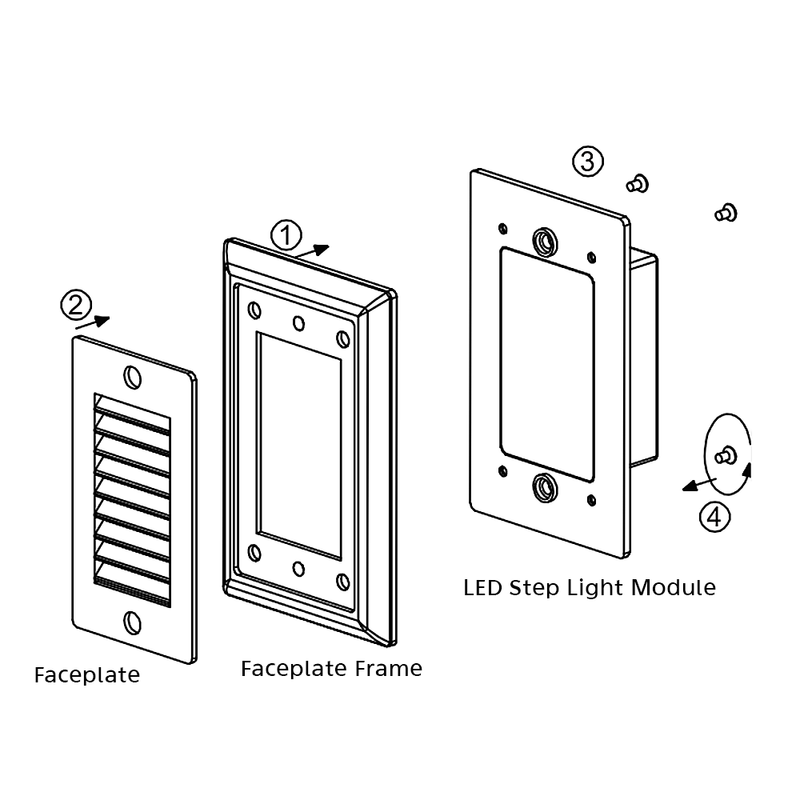

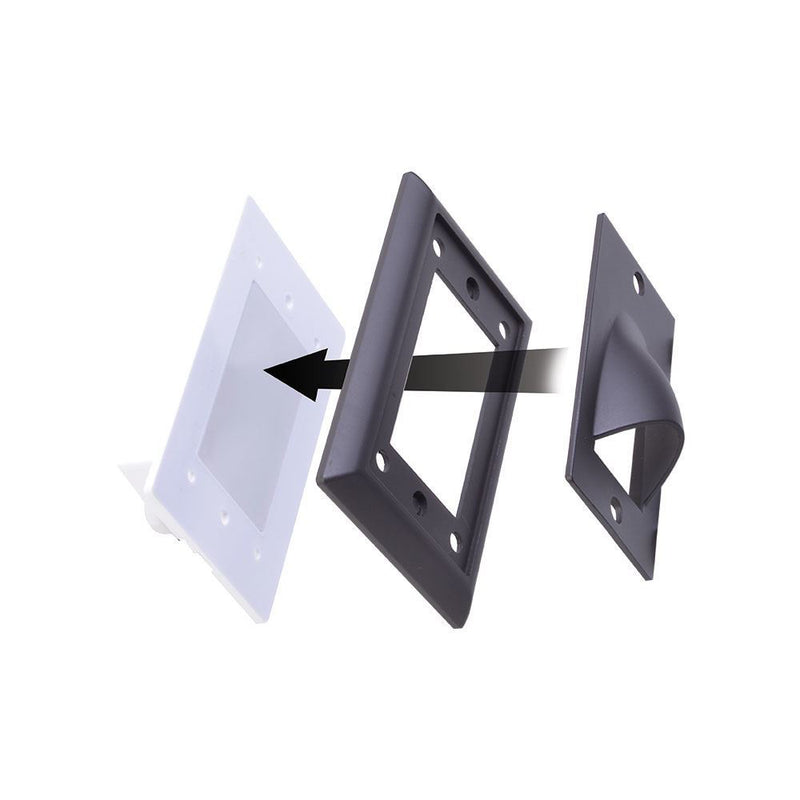

Each step light is selected with your choice of LED Step Light Faceplates (sold separately) with various styles and finishes to complete the lighting installation.
The LED Step Light Modules are made with high impact, weather-resistant polycarbonate casing. Its compact size with universal driver for easy installation and wiring into USA standard 2 in. x 4 in. junction boxes using mounting screws provided.
Available in 12V Dimmable, 120V Dimmable, and 120-277V Non-Dimmable in 3000K (WW) LED CCT versions.
Key Features
- Low profile design, flush to wall aesthetics
- Energy-efficient LED chipsets
- Rated IP65 for indoor or Outdoor applications
- Easy to install and wire to USA standard 2x4 junction boxes
- Connect sets of LED step lights to a branch circuit and use a wall switch for On/Off control
- The LED Step Light Module is only compatible with Step 1 Dezigns Faceplates
- C/US UL Listed
Applications
- Walls
- Staircase
- Stairways
- Pathways
Specifications
| Brightness | 37 Lumens |
|---|---|
| Power (Watts) | 1.5 watts |
| Input Voltage | 120V, 120-277V AC, or 12V DC |
| LED CCT | 3000K Warm White |
| CRI | 80+ |
| Dimmable | Yes (except non-dimmable modules) |
| Environment | IP65 - Wet Locations |
| Beam Angles | 110° |
| Dimensions |
4.75 in L x 2.31 in W x 0.375 in D |
| Mounting | LED Step Light can be recess mounted to 2” x 4” standard junction box using mounting screws provided. |
| Finish | White |
| Manufacturer | Elumalight |
| Rating | UL Listed, |
| Avg. Lifetime | ± 30,000 - 50,000 hours |
| Warranty | 5 Year Limited |
