Magnetic Non-Dimmable Landscape Transformer 300W 12/13/14/15V AC

$200.25
SKU EL-MC30012-SS

Magnetic Non-Dimmable Landscape Transformer has been specifically designed for long-distance applications to compensate for wire voltage drop. An electrician can simultaneously select from up to four different output voltage 12V, 13V, 14V, and 15V.  Available in 300 Max total wattage.

The Landscape Transformer has a large terminal block for easy installation and reliable operation. High-grade core and copper winding provide excellent load regulation and efficiency. Build-in timer and photocell options provide full control and energy savings. Secondary toggle switch circuit breaker provides short circuit and overload protection. Removable door: Side Hinge or Slide Cover. Suitable for Wet Location, ETL Listed to UL STD 1838, CSA STD C22.2 250.0 and 250.7

Need help with your LED lighting applications? Our lighting experts are here to help! Contact us today for assistance with the lighting plan or installation instructions.

Key Features

  • Not dimmable if used with a timer or/and photocell
  • Temperature class B(130°C)
  • Input leads: Line cord
  • Output leads: Terminal Block
  • Magnetic manually reset secondary breaker 25A
  • Timer and photocell build in options
  • The actual transformer 300W is encapsulated in the enclosure
  • The enclosure is Stainless Steel, NEMA 3R rated Wiring compartment has 5 knockouts sized for 3/8 inch screw cable connectors
  • Enclosure Temperature does not exceed 75°C at 45°C ambient and fully loaded

Applications

  • For use with compatible landscape lighting fixtures.

Specifications

 View Spec Sheets, View Installation Instructions

  • Input Voltage: 120V AC 60 Hz
  • Max Input Current at Full Load: 2.5A
  • Output Voltage without Load: 12/ 13/ 14/ 15VAC
  • Output Voltage fully Loaded: 11.5/ 12.5/ 13.5/ 14.5V AC
  • Max. Total Wattage: 300W
  • Max. Output Current: 25/ 23/ 21/ 20A
  • Efficiency: 90%
  • Load regulation: 0.05%

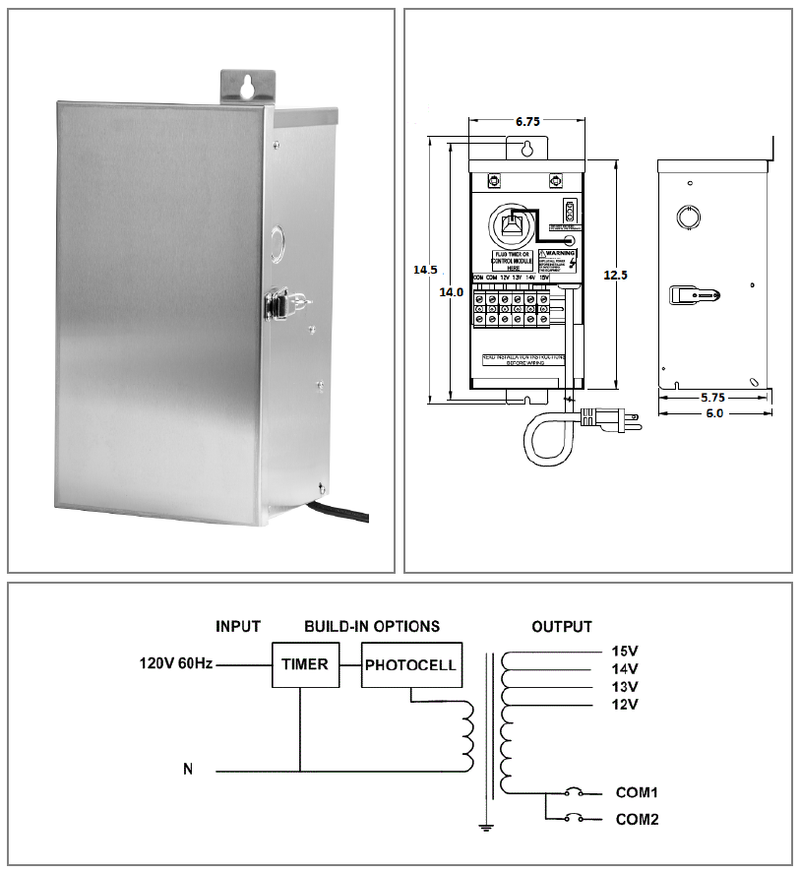

  • Driver Dimensions: 13 in. H x 5.56 in. W x 5.54 in D
  • Weight: 14 lbs
  • Environment: Wet or Dry Location
  • IP Rating: IP65
  • Rating: UL STD. 1838, Certified to CSA, STD. C22.2 № 250.0, 250.7
