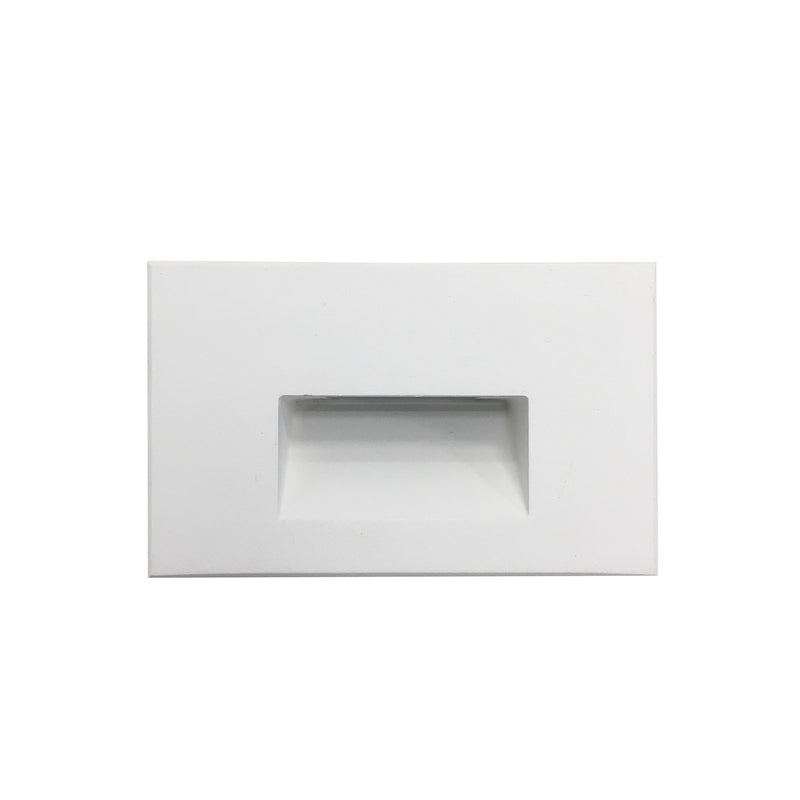

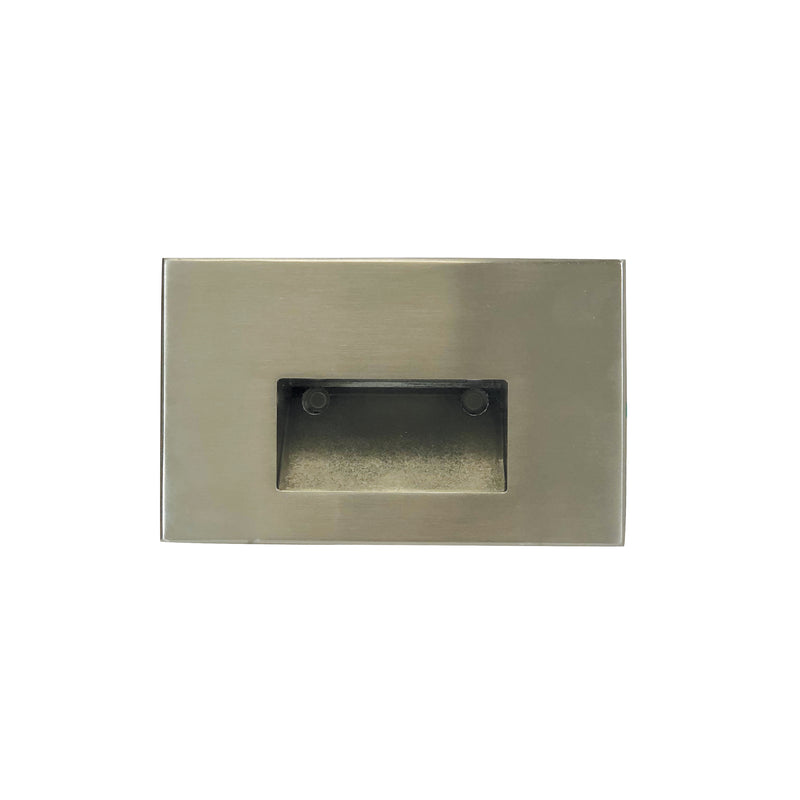

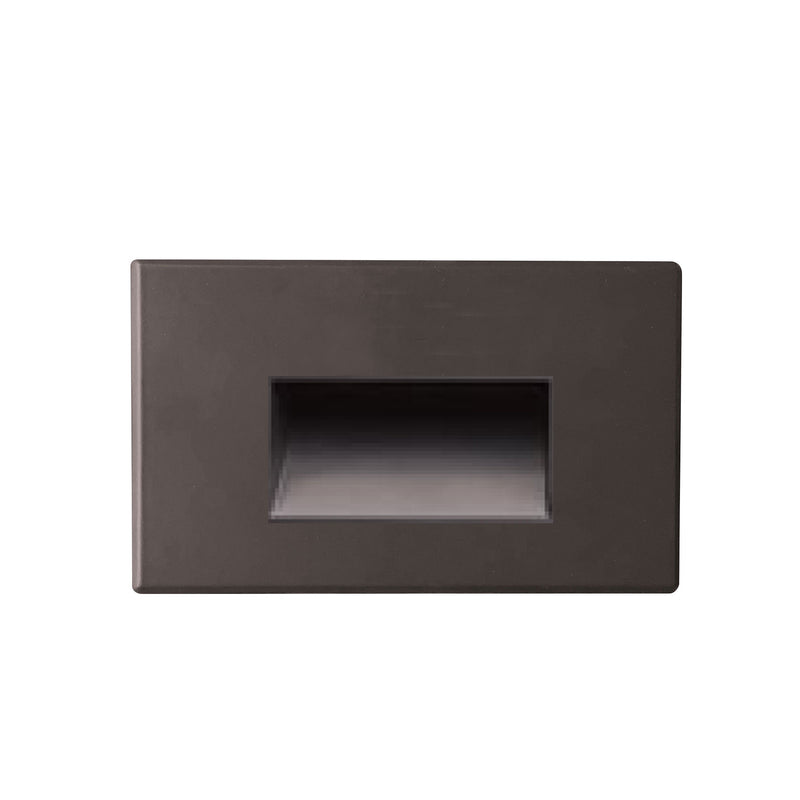

Nora Lighting Ari LED Step Lights with Horizontal Face Plate

SKU NSW-740/30BN
Original price $49.95 - Original price $49.95
Original price
$49.95 - $49.95
Current price $49.95

An energy-efficient LED step light with a sleek modern appearance. This sophisticated die-cast aluminum series features a screwless face plate with an inward sloping reflector that delivers a bright, discreet beam of light while obscuring the source. Luminaire produces 5W in 3000K or 4000K @ 90+ CRI, has an integrated, non-dimmable driver, and is cETLus listed for wet locations. Long-lasting, energy-efficient Ari LED step lights to provide excellent safety or accent illumination around steps, balcony areas, and walkways.

Key Features

  • Delivered Lumens: 68lm
  • Amber, Blue, Red, White
  • CRI: 90
  • Power: 3.9W
  • Input: 120 VAC, 277 VAC, 50/60Hz
  • ELV Dimming: 100-10%
  • Rated Life: 50000 Hours
  • Construction: Die-cast corrosion-resistant aluminum alloy
  • Low profile, flush to wall aesthetics with no visible hardware
  • Balanced lighting, free of shadows with minimum glare
  • Up to 200 fixtures can be connected in parallel
  • Brushed Nickel Finish is for interior use only


  • Walls
  • Staircase
  • Stairways
  • Pathways


View Spec Sheet, Instruction Sheet, IES File,

  • Construction: Die-cast aluminum or 316 marine grade cast stainless steel
  • Power: Direct wiring, no remote driver needed.
  • Input voltage: 120V or 277VAC 50/60Hz
  • Light Source: 3000K CCT Samsung HV-AC High Power LED,
  • CRI: 90 Optional color lenses.
  • Total power consumption of 3.5W
  • Mounting: Fits into 2” × 4” J-Box with a minimum inside dimensions of 3"L × 2"W × 2"H
  • Includes bracket for J-Box mount.
  • Dimming: Dim to 10% with electronic low voltage (ELV) dimmer Approved dimmers: Lutron Nova-T NTELV-300 & NTELV-600, Lutron Vietri VTELV-600, Lutron Diva DVELV-300P, Lutron Skylark SELV-300P, Lutron Maestro MAELV-600
  • Standards: IP66, UL & cUL Listed for wet locations, Title 24 JA8-2016 Compliant
