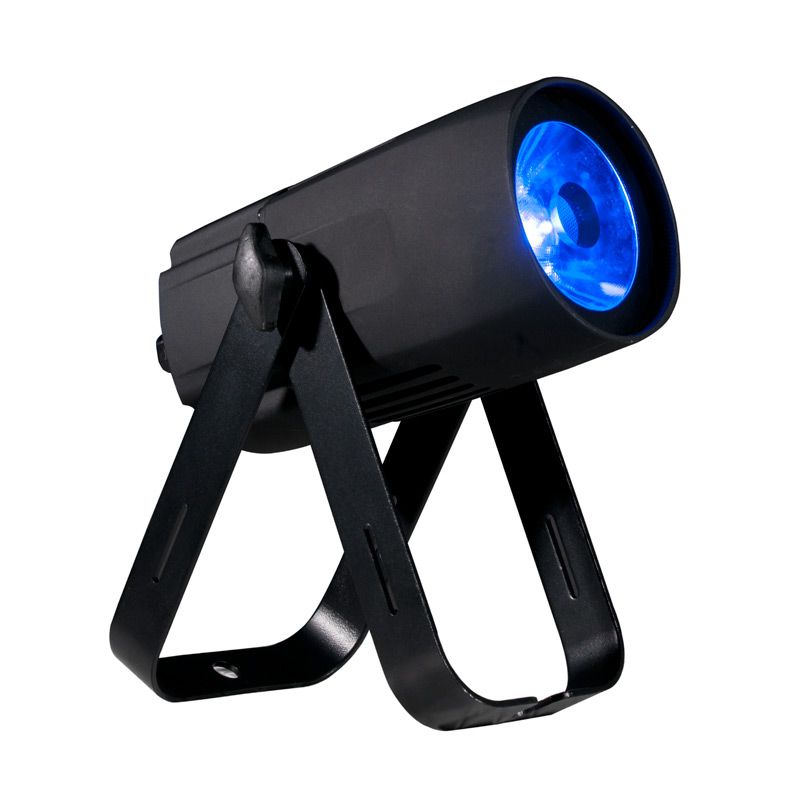

RGBW LED Saber Spot Light

The RGBW LED Saber Spot Light is a compact Pinspot with smooth RGBW color mixing from one 15W 4-in-1 Quad LED, and features DMX-512, flicker-free operation, 64 built-in color macros, strobing, electronic dimming, and has a 4-button DMX display system on the rear panel. Its built-in ACL lens produces a razor-sharp 4-degree beam angle.

The Saber Spot RGBW has a scissor bracket system that allows the fixture to be hung or set on the ground and is ideal for performance stages, installations, table spotting, and lighting retail stores.

Key Features

• 9 Built-in Color Macros
• 6 Operational Modes: Static Color Mode; Color Change Mode
• 4-button Digital Display for easy navigation
• Electronic Dimming 0 – 100%
• Flicker-Free
• Includes a scissor yoke to be hung, or set on the ground

Applications

• Trade Show and Exhibition Displays
• Retail Displays
• Architectural lighting for canopies, corridors, archways, windows
• Uplighting or Downlighting for wall wash applications
• Excellent for hospitality applications such as bars, restaurants, clubs, hotels
• Statue and sculpture lighting illumination
• Event and Stage Lighting

Specifications

View Spec Sheet

• Light Source: 15-Watt Quad (RGBW) LED
• Beam Angle: 4°
• Lens: 3.6KHz
• Electronic Dimming: 0-100%

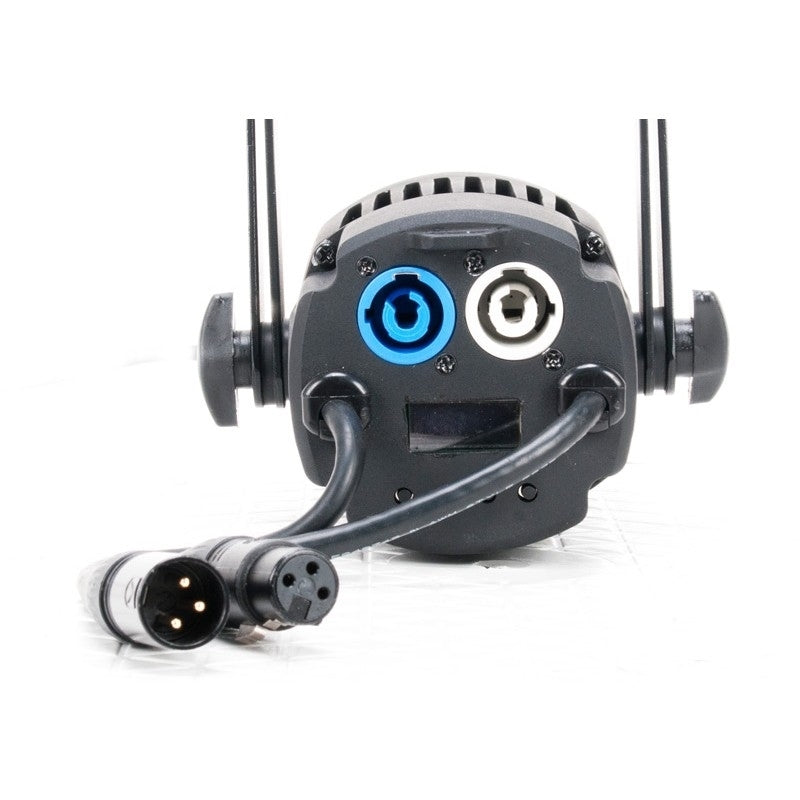

• Power Input: powerCON
• Power Pass-Through: powerCON
• Control: 3-pin DMX In/Out pigtails
• Network: With Wired Digital Communication Network
• 11 DMX Channel Modes: 3/4/4/5/6/6/7/8/8/9/11/12
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power Draw:
  • 120V 60Hz: 14W, 0.12 Amps
  • 220V 50Hz: 14W, 0.06 Amps
• Dimensions (L x W x H): 3.5 in x 6.75 in x 3.5 in / 88 x 170 x 87mm
• Weight: 2.6 lbs / 1.2 kg
• Finish: Black Housing
• Certifications: ETL Approved, UL, CE
• IP Rating: IP20
• Environment: Dry Location Only

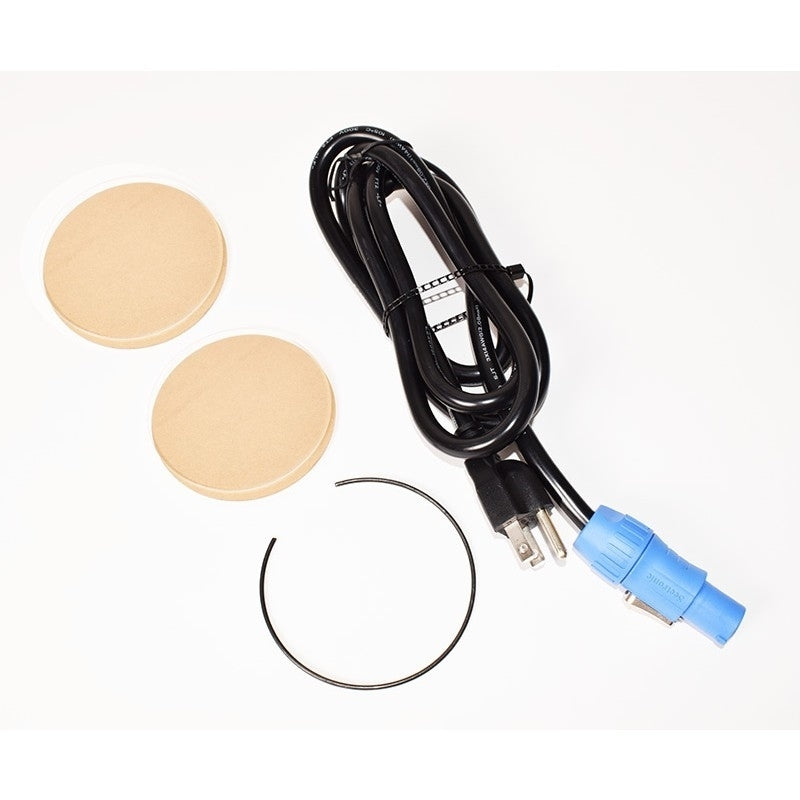

• Included:
  • Manual
  • powerCON power cord

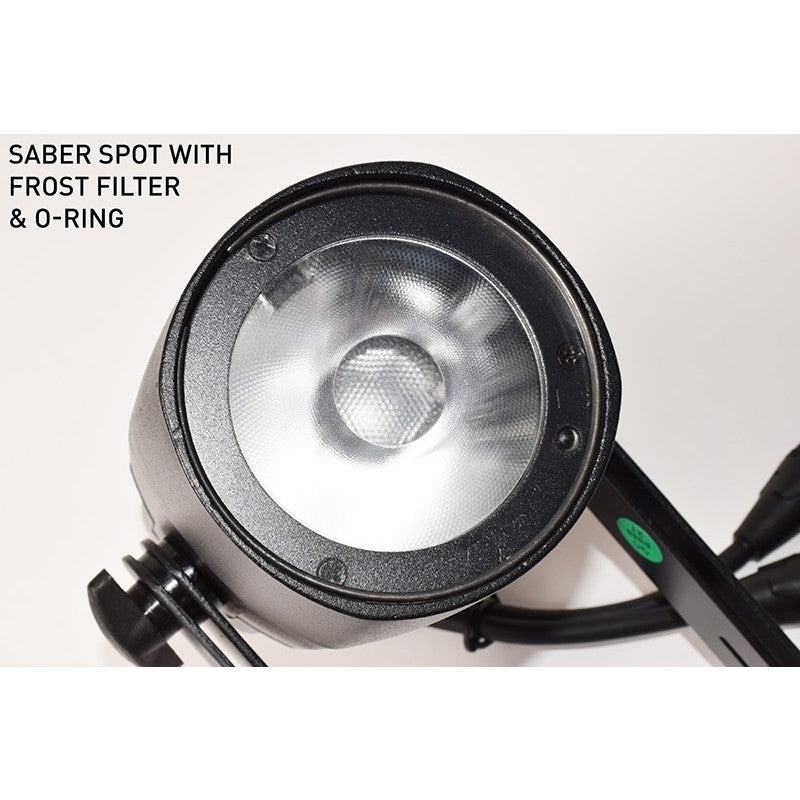

  • 2 frost filter lenses (10-degree & 45-degree)
  • O-ring for frost filter lens
• Optional Accessories: PLC 3, PLC 6, PLC 10 (powerCON passthrough cables)
• Lifespan: Rated for 10,000 Hrs
