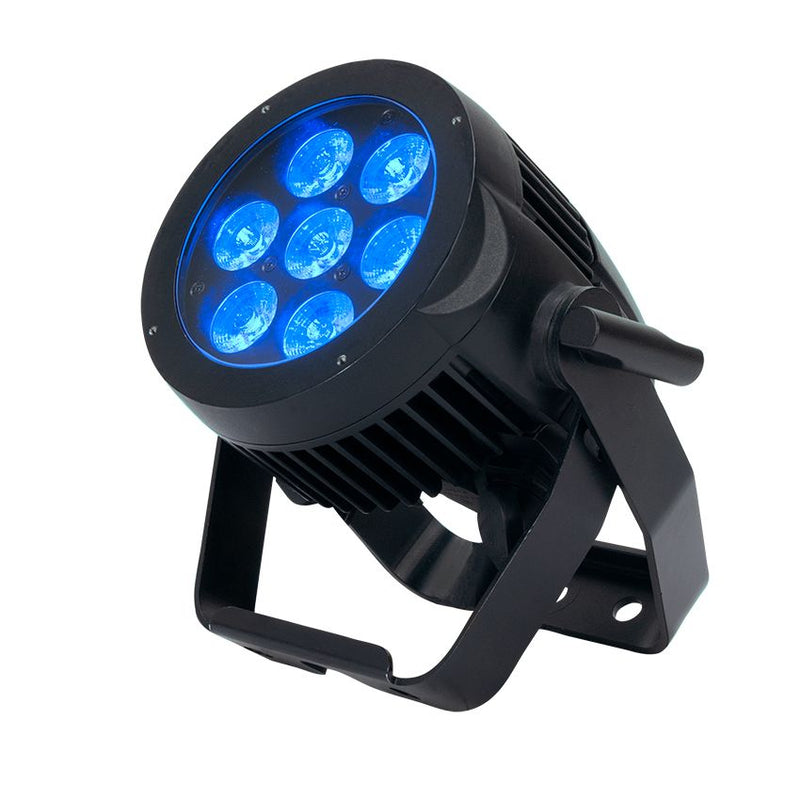

RGBW+UV LED 7P HEX IP Par Light

$499.95
SKU EL-HEX700

The 7P HEX IP is a versatile, heavy-duty Par with HEX LEDs, a 30-degree beam angle, and all-metal construction. It is IP65 outdoor rated to protect against, rain, snow, and dust for temporary outdoor events.

The 7P Hex IP is a versatile IP65 outdoor rated Par with 7 x 12-Watt  (6-IN-1 HEX) LEDs. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white, and UV LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with IP 65 rating, it is a great solution for temporary outdoor lighting of stages or events. The IP 65 rating helps protect the fixture from rain, snow, and dust.

7P HEX IP professional features include 4 DMX modes, 5 operational modes, 5 dimming curves, flicker-free operation, and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 3-pin DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 3-pin DMX cables may also be used for indoor applications.

Key Features

  • Light Source: 7 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV LED) - Rated at approximately 50,000 hrs.)
  • IP65 Outdoor Rated
  • Locking, outdoor IN/Out Power connectors
  • 4 DMX Modes: 6, 7, 8 & 13-channel
  • 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode, and DMX Controlled
  • 63 built-in Color Macros
  • Flicker Free operation (No flickering on camera)
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • LED pulse and strobe effect

Applications

  • Trade Show and Exhibition Displays
  • Retail Displays
  • Architectural lighting for canopies, corridors, archways, windows
  • Uplighting for wall wash applications
  • Excellent for hospitality applications such as bars, restaurants, clubs, hotels
  • Statue and sculpture lighting illumination

Specifications

 View Spec Sheet

Electronic Dimming
0-100%
Beam Angle 30°

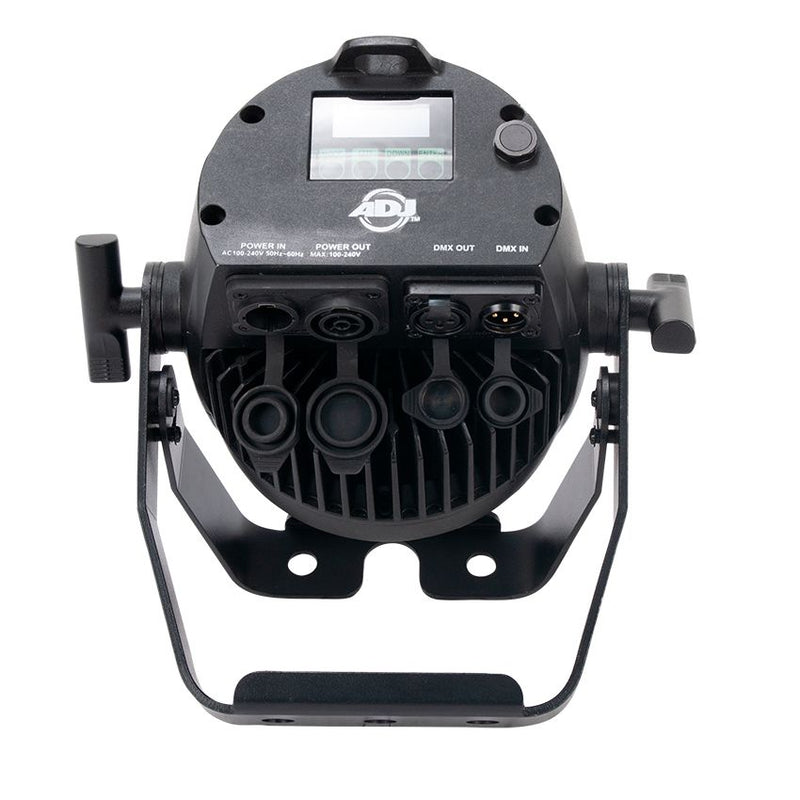

Rear Panel Controls 4-button, DMX digital display on the rear panel
Data Link Data linkable via 3-pin XLR cables, With Wired Digital Communication Network
Daisy Chain
16 units (120V); 34 units (220V)
RDM Support
Supports RDM (Remote Devise Management)
Mounting Scissor Yoke & safety eye
Dimensions LxWxH 10 in x 6.5 in x 9.25 in / 256x161.7x232.5mm
Weight
7.5 lbs. / 3.3 kg
Ratings ETL Approved
Lifespan Rated at 50000 hrs
