SAGE LED CCT Undercabinet Lightbar Accessories

SAGE LED CCT Undercabinet Lightbar Accessories

SKU EUDC31
$1.62 - $16.91
$4.24
$1.62 - $16.91
$4.24

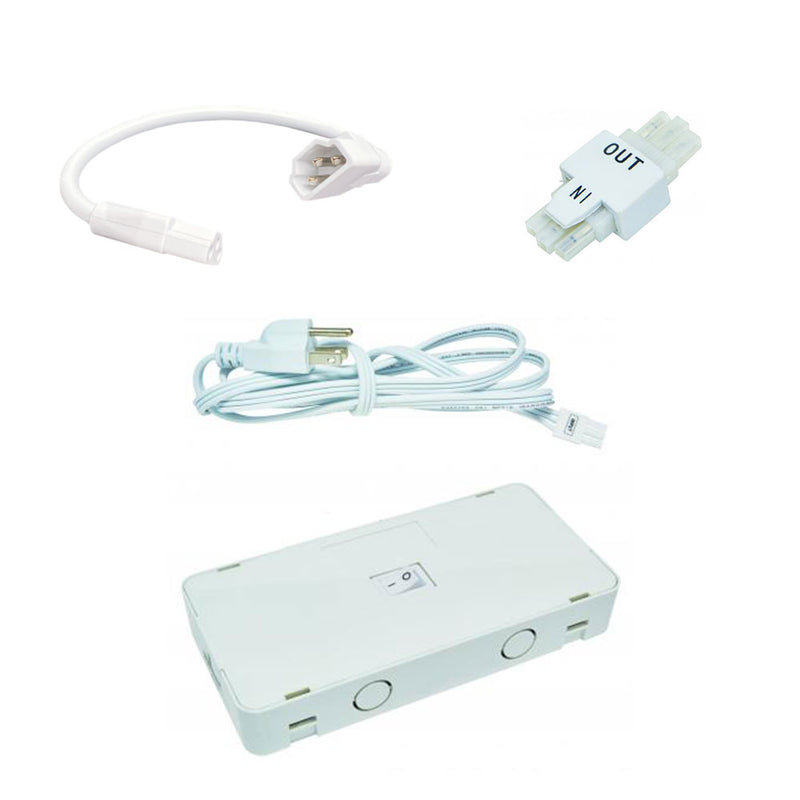

For use with SAGE LED Undercabinet Lightbars

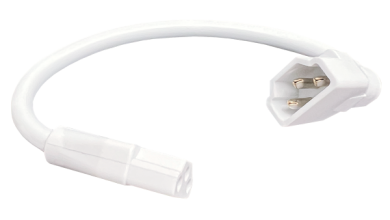

  • EUDC31 - 6" Linking Cable

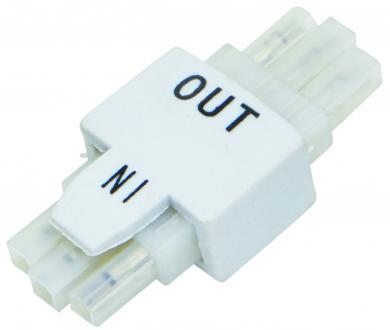

  • EUDCS31 - End-to-End Connector

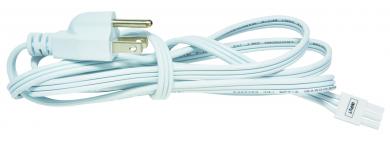

  • EUDCRD - 6' Power Cord

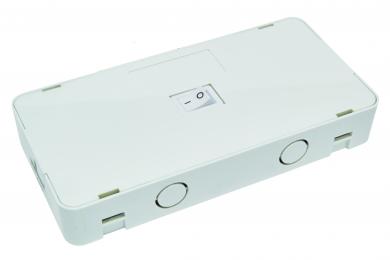

  • EUDJBX - Junction Box for hard wire connection with On/Off switch

Specifications

View Spec Sheet

Brightness EUD32CT5W 300 Lumens
EUD34CT5W 600 Lumens
EUD36CT5W 900 Lumens
Power (Watts) EUD32CT5W 5 Watt
EUD34CT5W 10 Watt
EUD36CT5W 15 Watt
Input Voltage 100-277V AC
LED CCT & Colors Selectable 2700/3000/3500/4000/5000K
CRI 90+
IP Rating IP20
Environment Indoor Use - Dry Location
LED Beam Angle 130°
Length 12 in / 24 in / 36 in long
Width 1 in.
Height 1 in.
Mounting Surface mounting with Metal Mounting Clips
Included Accessories 1 x Power Cord
1 x End-to-End Connector
2 x Mounting Brackets
Additional Accessories (Sold Separately)

- 6 ft. Power Cord
- End-to-End Connector
- 6 in. Linking Cable
- J-Box for Hard Wire Connection
Manufacturer Elco Lighting
Rating ETL Listed, ENERGY STAR qualified
Avg. Lifetime ± 30,000 - 50,000 hours
