Trim Changeable LED Downlights 12V DC

Trim Changeable LED Downlights 12V DC

SKU EL-M02-27 EL-M02A-S-BK
$24.45 - $28.20
$24.45
$24.45 - $28.20
$24.45

The Trim Changeable LED Downlights are a great choice for any exhibit or display lighting needs. These downlights can be easily changed for a variety of recessed light options, offering reliable illumination and convenient functionality.

Step 1 Dezigns recessed LED downlights are very easy to install. Furthermore, the LED technology eliminates heat from the fixture, and there are no harmful UV or infrared rays to damage artwork or retail displays.

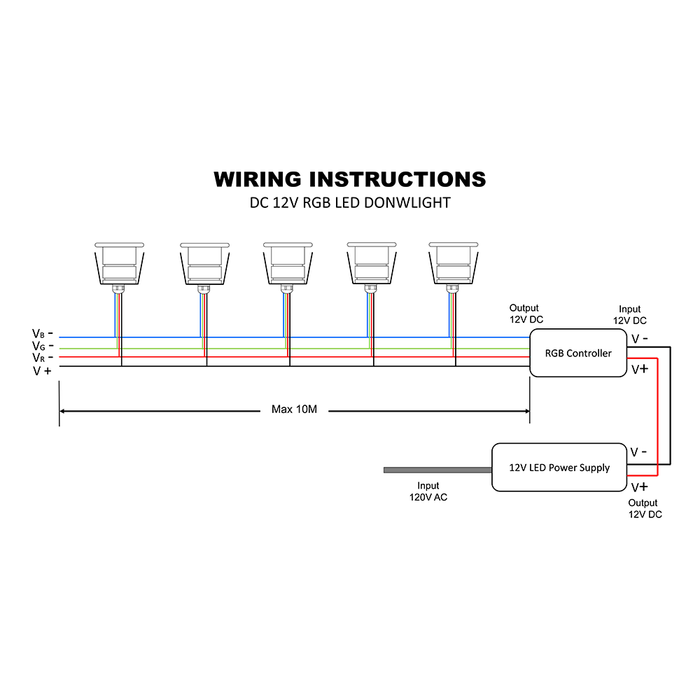

* Required: The LED Downlights require 12V DC LED Driver and an RGB controller is required for the RGB downlight. Sold separately.

Key Features

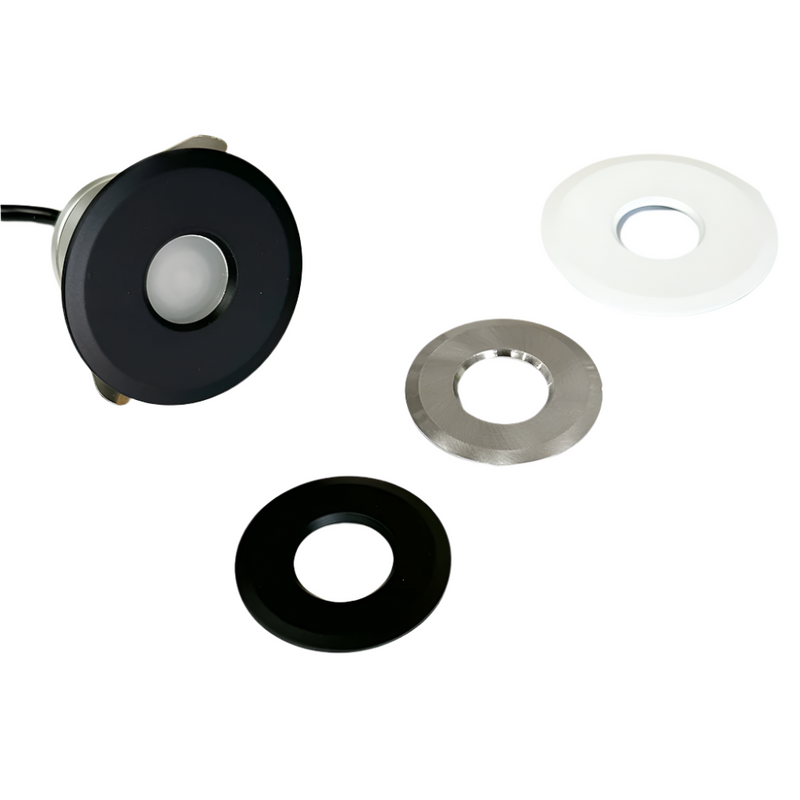

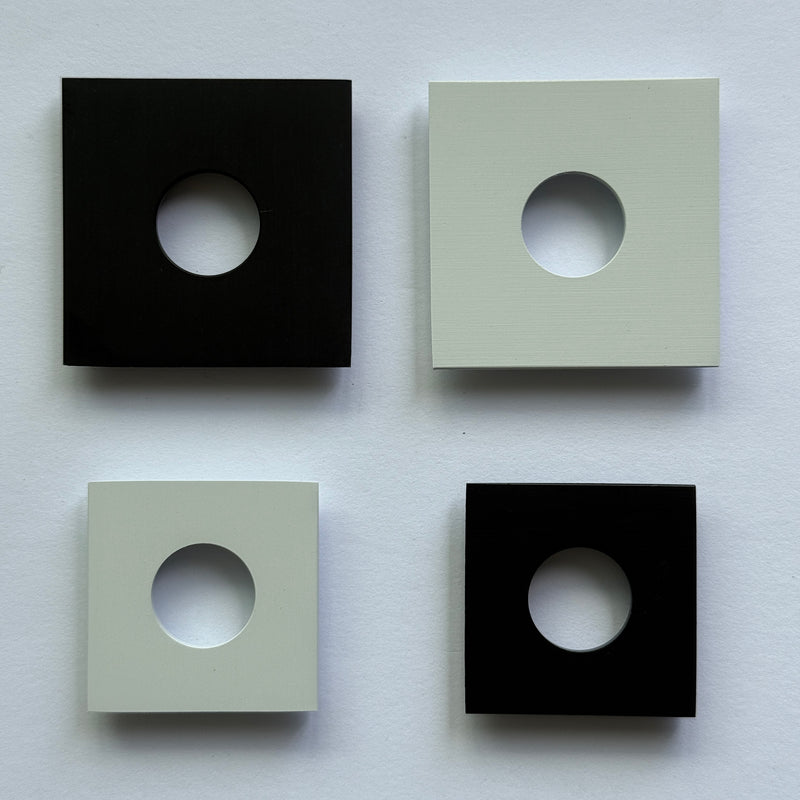

  • Changeable faceplate trims
  • Easy installation
  • Dimmable with dimmable power supply
  • No flicker delay or warm-up like compact fluorescent products
  • No diode image
  • No UV light or infrared wavelengths
  • cULus Listed

Applications

  • Decorative Lighting for Tradeshows, Exhibition, and Retail Displays
  • Architectural lighting for corridors, canopies, archways,
  • Downlighting or Uplighting Recessed Applications
  • Gallery and Museum Lighting
  • Under-cabinet, Under-Counter, or accent lighting

Specifications

View Spec Sheet

Brightness 300 Lumens
Power (Watts) 3 Watt
Input Voltage 12V DC
LED Colors 2700K, 3000K, 6000K, RGB
IP Rating IP65
Environment Indoor Use - Dry or Damp Location
Dimmable
 Specified by driver
LED Beam Angle 113°

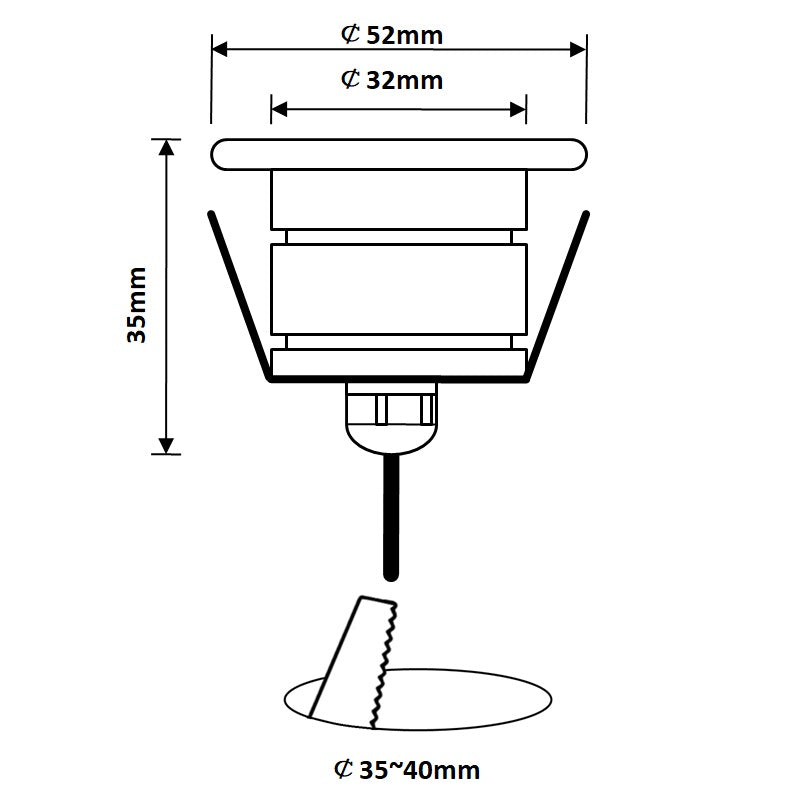

Cut-out Diameter
 1.57 in (40 mm)
Trim Plate Diameter
 1.57 in (40 mm) or 2.05 in (52 mm)
Depth
 1.38 in (35 mm)
Finish Black, White, Brushed Nickel,
Mounting
 Recessed
Manufacturer Elumalight
Rating UL, ROHS
Avg. Lifetime ± 30,000 - 50,000 hours
