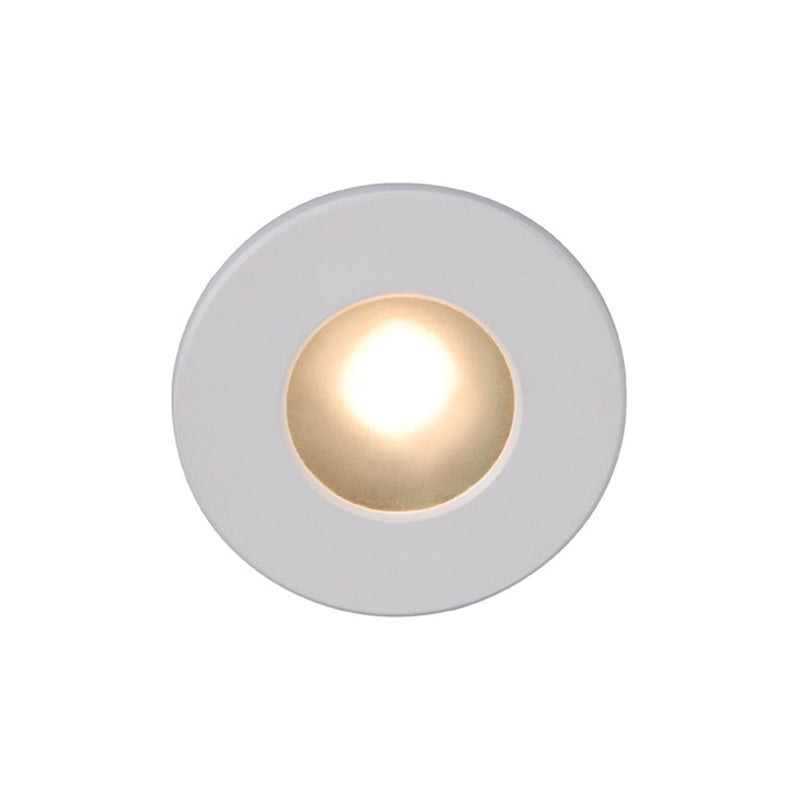

WAC LIGHTING WL-LED310 Circular Window Step And Wall Light

SKU WL-LED310-AM-BN
Original price $124.95 - Original price $133.95
Original price
$133.95
$124.95 - $133.95
Current price $133.95

Circular window LEDme® Step Light. Designed for safety and style on stairways, patios, decks, balcony areas, walkways and building perimeters.

Features an architectural design. Energy efficient for long-lasting indoor and outdoor lighting solutions. Creates an attractive, romantic impression at night. Colored lights can be used for way finding.

Key Features

  • Delivered Lumens: 115lm
  • Amber, Blue, Red, White
  • CRI: 90
  • Power: 3.9W
  • Input: 120 VAC, 50/60Hz
  • ELV Dimming: 100-10%
  • Rated Life: 50000 Hours
  • Construction: Die-cast corrosion-resistant aluminum alloy
  • Low profile, flush-to-wall aesthetics with no visible hardware
  • Balanced lighting, free of shadows with minimum glare
  • Up to 200 fixtures can be connected in parallel

Applications

  • Walls
  • Staircase
  • Stairways
  • Pathways

Specifications

View Spec Sheets, View Instructions, IES Files, REVIT Files, Dimming Report,

  • Construction: Die-cast aluminum
  • Input: 120VAC 50/60Hz
  • Power: Direct wiring, no remote driver needed
  • Light Source: 3000K Samsung HV-AC High Power LED,
  • CRI: 85
  • Total power consumption of 3.9W
  • Mounting: Supplied with junction box for recessed installation Suitable for new construction or retrofit installations.
  • Dimming: Dim to 10% with an electronic low voltage (ELV) dimmer Approved dimmers: Lutron Nova-T NTELV-300 & NTELV-600, Lutron Vietri VTELV-600, Lutron Diva DVELV-300P, Lutron Skylark SELV-300P, Lutron Maestro MAELV-600
  • Standards: IP66, UL & cUL listed for wet locations, Title 24 Compliant
