RGBLA + UV LED Mega Hex L Par Light

RGBLA + UV LED Mega Hex L Par Light

SKU EL-MEG-PAR
$148.90 - $148.90
$148.90
$148.90 - $148.90
$148.90

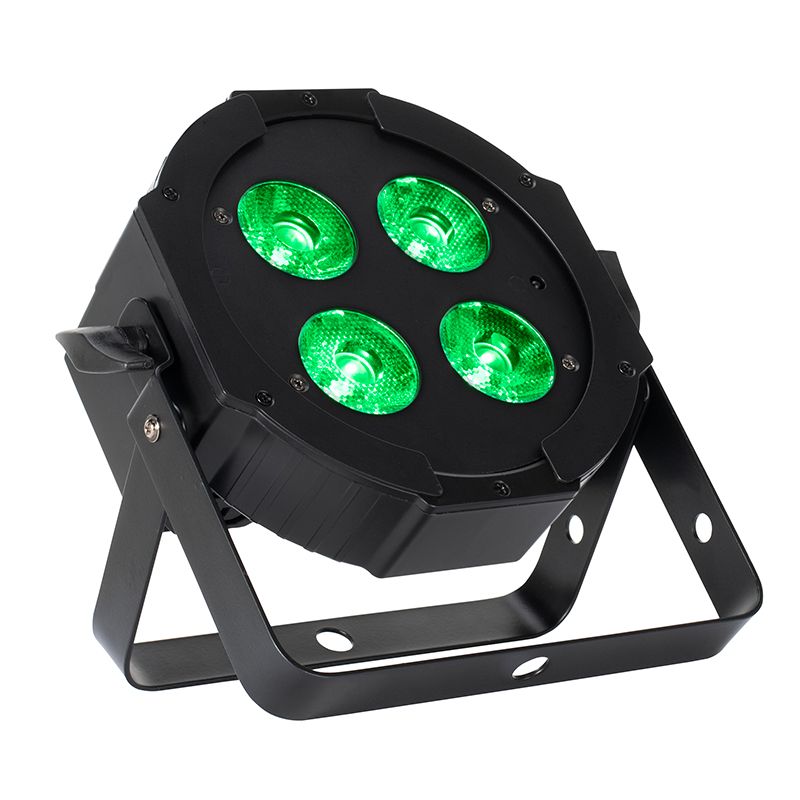

The Eliminator Mega Hex L Par is a compact and lightweight LED Par with 4 x 20-Watt, 6-IN-1 (RGBLA + UV) LEDs and Eliminator's patented “sit-flat” design so that it may sit directly on the ground or inside a truss. It includes the UC IR24 wireless IR remote control. The addition of the Lime LED chip creates a high CRI output and allows users to control the white color temperature of this fixture. It's a HEX LED par with a twist of lime!

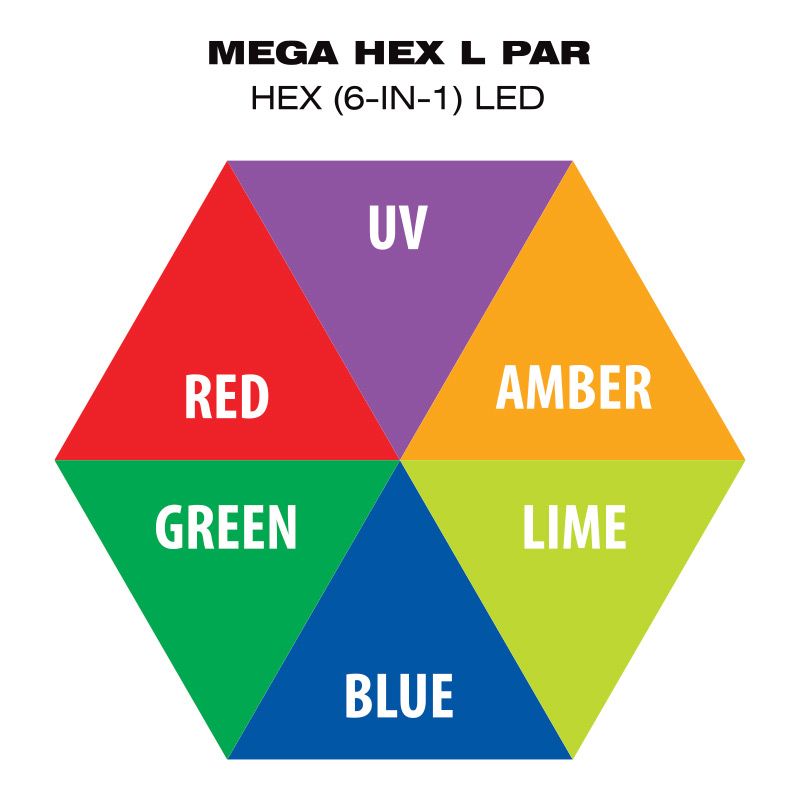

Elevate your lighting game with the Eliminator Lighting Mega Hex L Par, a compact and lightweight LED Par packed with innovation. This LED Par boasts four 20-Watt 6-IN-1 Hex LEDs (RGBLA + UV - Red, Green, Blue, Lime, Amber + Ultraviolet), offering a vast color spectrum that includes captivating shades like hot pink, lime green, and electric blue. Plus, adding the lime LED allows for higher CRI output and advanced tunable white color control; features previously only found on more expensive LED pars.

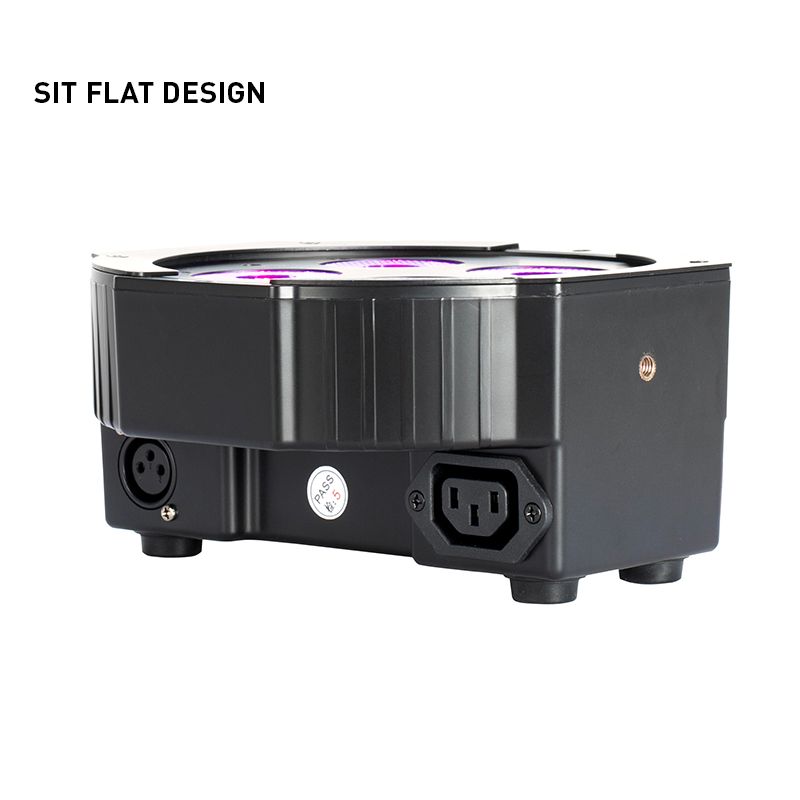

What sets the Mega Hex L Par apart is its revolutionary patented "sit-flat" design allowing DMX data and power cables on each side of the fixture to be seamlessly daisy chained from one light to an other.

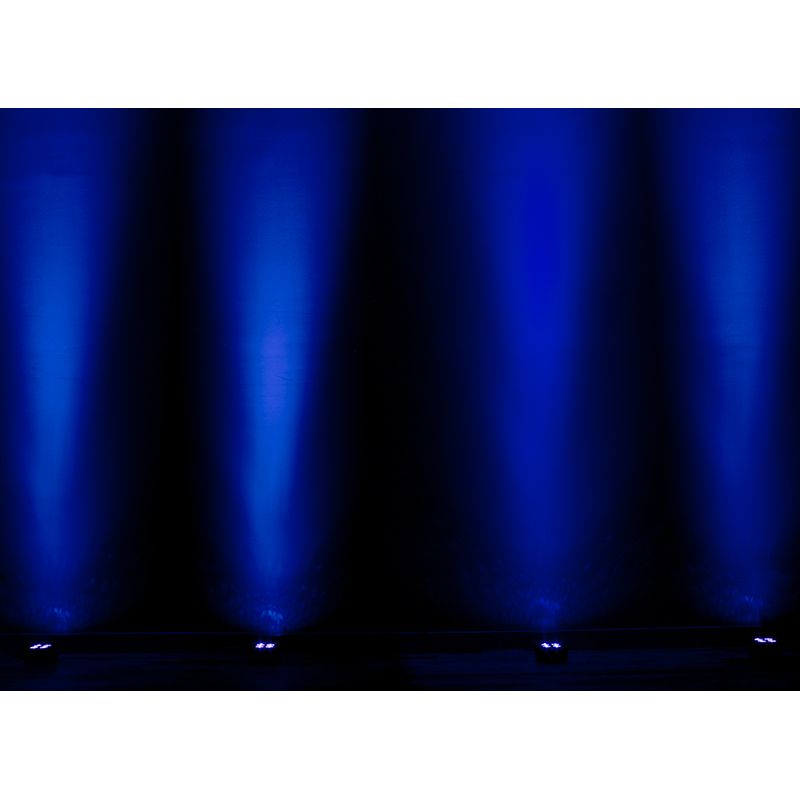

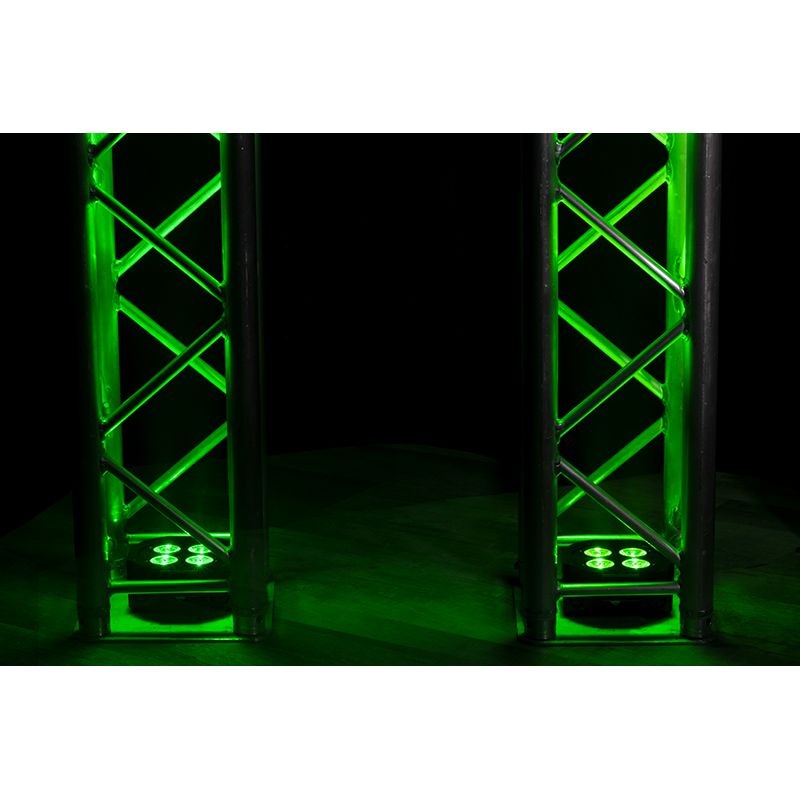

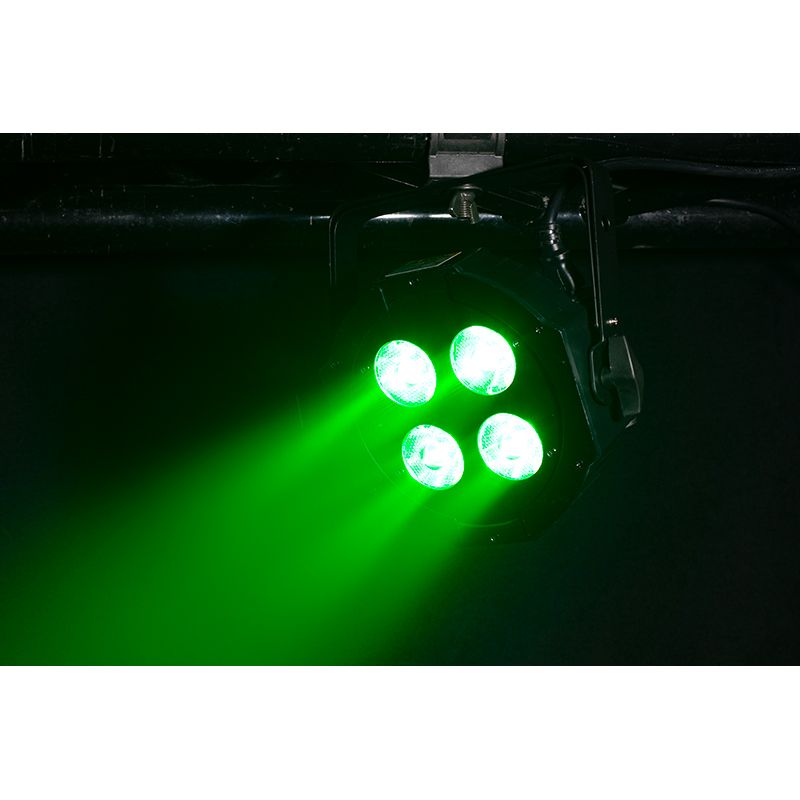

Its rubber feet allow the fixture to be directly rested on the ground for uplighting events. Its compact size helps it snugly fit inside truss systems to give a ‘truss warming’ effect. The scissor yoke allows for various truss hanging options.

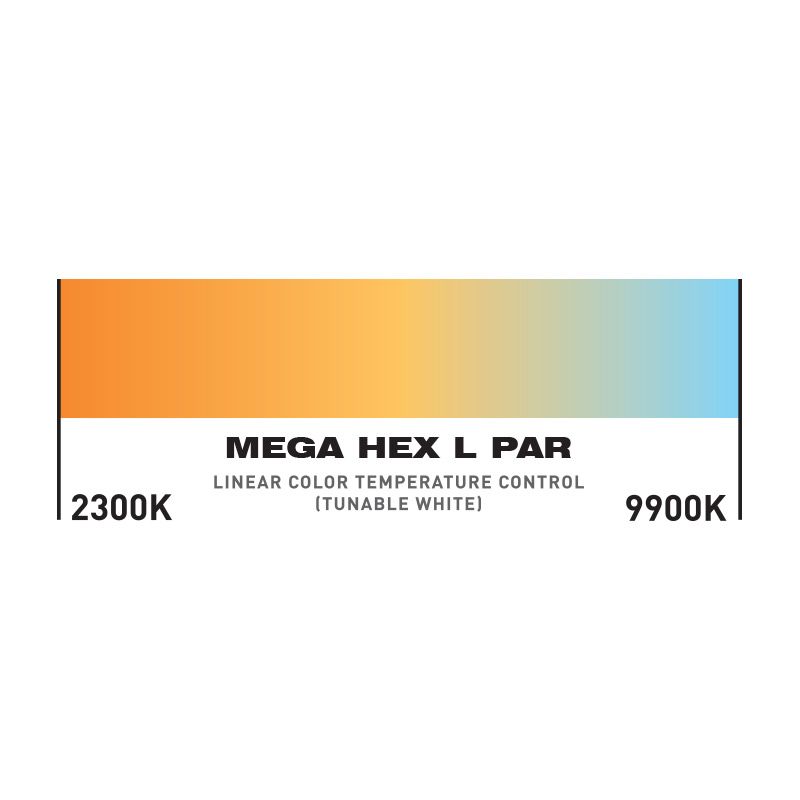

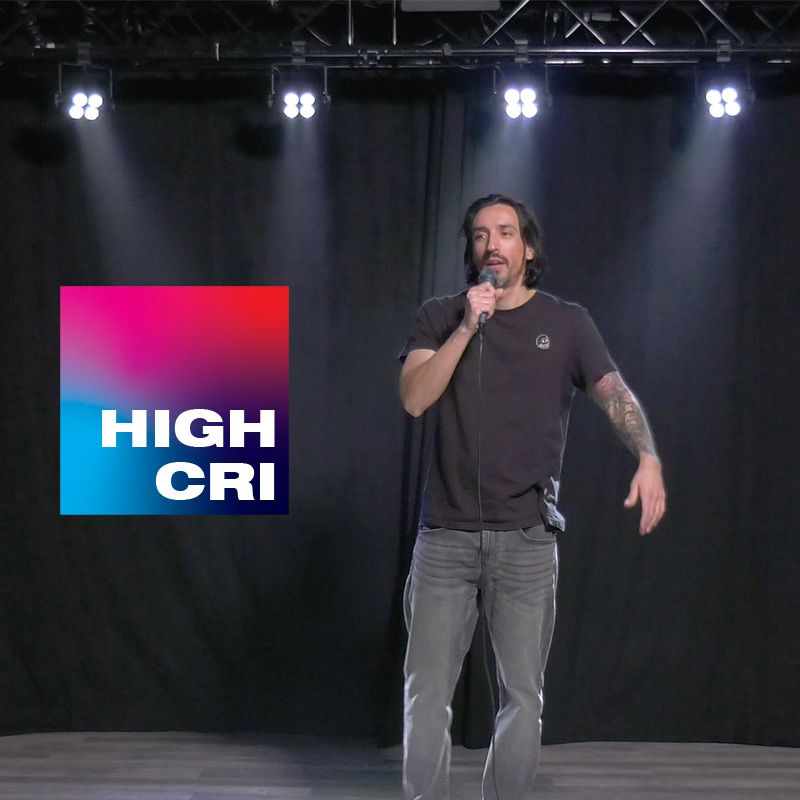

With added Lime LED chips, this fixture achieves a remarkable CRI of over 90, ensuring superior light quality. In addition, the tunable white color temperature control from 2300K to 9900K allows users more flexibility when lighting performers.

Experience seamless color mixing with fast or slow transitions, and explore 15 White Color Temperature presets for ultimate control. With 63 built-in Color Macros and 13 programs, you'll create stunning visual displays effortlessly.

This fixture offers versatile control options, including 7 DMX channel modes, Auto Run Mode, Sound Active Mode, RGBLA + UV Dimmer Mode, and more. The 4-button OLED display simplifies navigation.

The Mega Hex L Par features a flicker-free experience, electronic dimming from 0-100%, and 6 Dimmer Curve Modes for added flexibility.

With its 3-pin DMX Inputs/Outputs and daisy-chain power capability, you can effortlessly link up to 20 fixtures at 120V or up to 40 fixtures at 230V, making it perfect for large setups.

Compact and lightweight, this fixture measures 10.25" x 10.25" x 4.25" and weighs just 4 lbs. It comes complete with an ADJ UC IR24 wireless IR remote, IEC Power Cord, and a 20-degree Frost Filter.

Whether you're creating an architectural wall wash or illuminating performance stages, the Eliminator Lighting Mega Hex L Par is a great choice for creating stunning, versatile, and energy-efficient lighting solutions.

Key Features

  • Powerful 6-in-1 LEDs: Four 20W RGBLA + UV LEDs deliver vibrant colors including hot pink, lime green, and electric blue.
  • High CRI & Tunable White: Lime LED boosts CRI to 90+; color temp adjustable from 2300K–9900K.
  • Patented Sit-Flat Design: Allows flat cable runs for easy daisy chaining.
  • Compact & Lightweight: Just 4 lbs and 10.25" x 10.25" x 4.25"; fits snugly in truss systems.

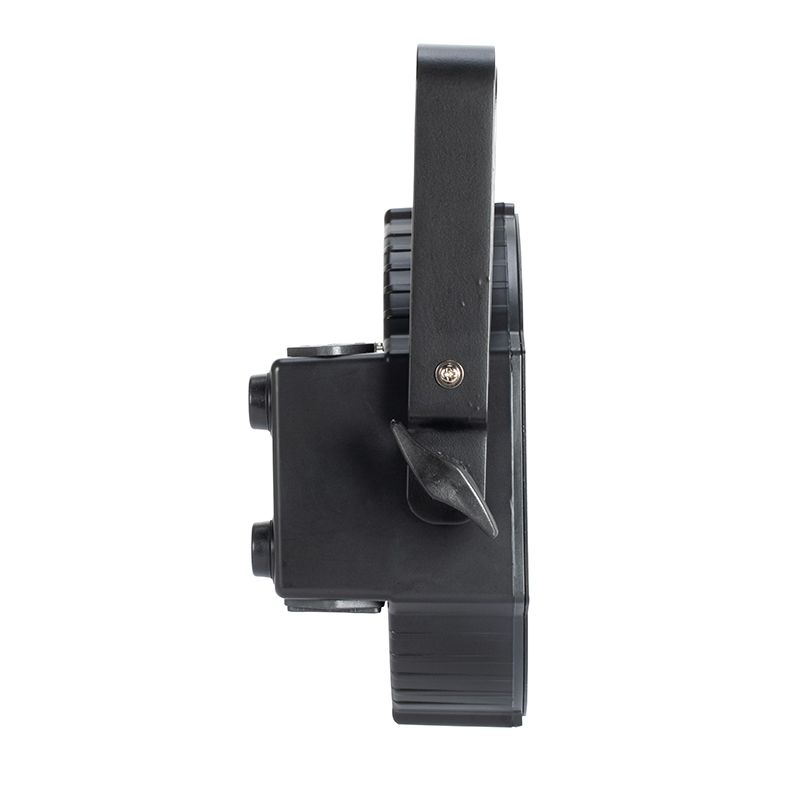

  • Flexible Mounting: Rubber feet for uplighting; scissor yoke for hanging.
  • Advanced Control Options: 7 DMX modes, Auto, Sound Active, and OLED display.
  • Built-in Effects: 63 Color Macros, 13 programs, 15 white presets, 6 dimming curves.
  • Flicker-Free & Dimmable: 0–100% electronic dimming for pro applications.
  • Power Linking: Daisy chain up to 20 units @120V or 40 @230V.
  • Includes: IR remote, IEC power cord, 20° frost filter.

Applications

  • Trade Show and Exhibition Displays
  • Retail Displays
  • Architectural lighting for canopies, corridors, archways, windows
  • Uplighting or Downlighting for wall wash applications
  • Excellent for hospitality applications such as bars, restaurants, clubs, hotels
  • Statue and sculpture lighting illumination

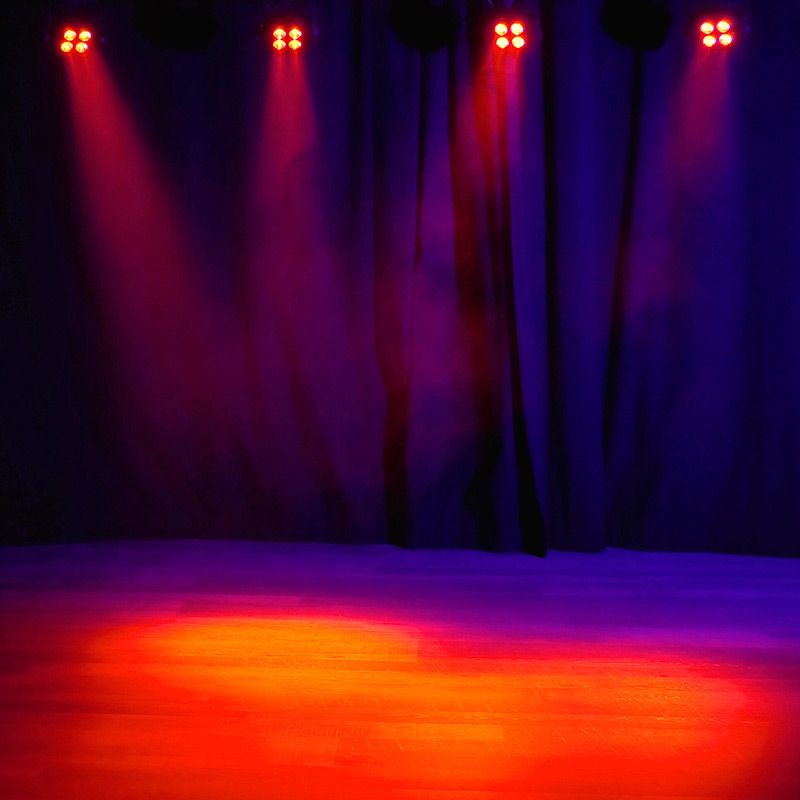

  • Event and Stage Lighting

Specifications

View Spec Sheet

View User Manual

Source:

• 4 x 20-Watt, 6-IN-1 Hex (RGBLA+UV) LEDs (50,000 hrs.)
• CRI: >90
• Lumens: 1100
• Beam Angle: 17-degrees (native); 20-degree (with frost filter)

Effects:
• White Color Temperature Control (2300K – 9900K)
• 15 White Color Temperature Presets
• 63 built-in Color Macros
• 13 built-in programs
• Flicker Free
• Electronic Dimming: 0-100%
• 6 Dimmer Curve Modes
• Color strobe effect

Control:
• 7 DMX Channel modes: 6, 8, 9, 12, 14, 15 and 17 channel modes
• 5 Operational modes: Auto Run Mode (16 Color Change Mode, 16 Color Fade Modes, & 1 Combined Mode), Sound Active Mode (16 Modes), RGBLA + UV Dimmer Mode, Static Color Mode (63 Colors), and DMX Controlled

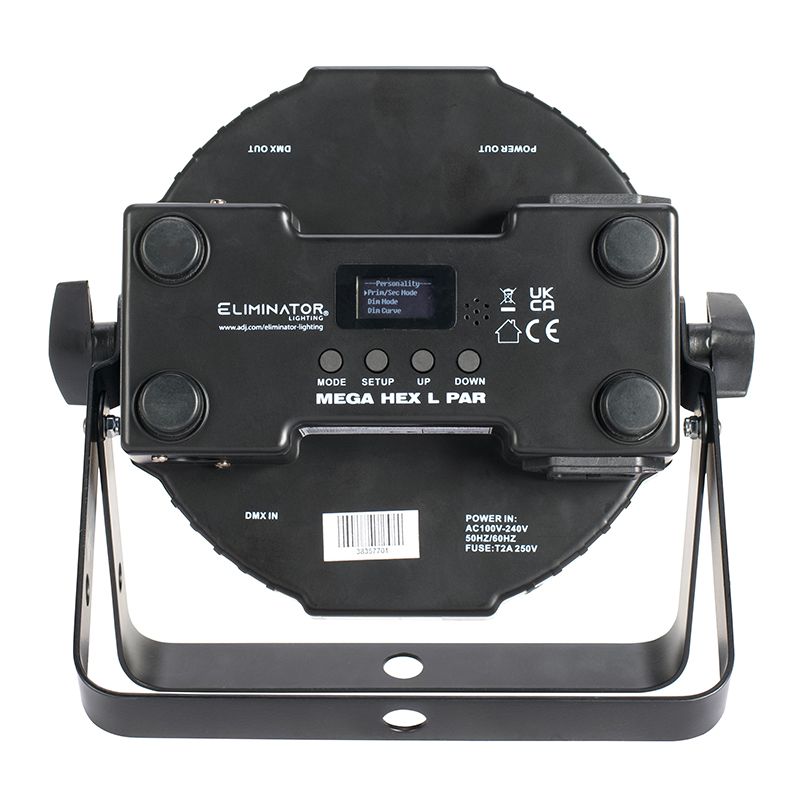

• 4-button with OLED display menu for easy navigation
• Stand Alone or Primary/Secondary Configuration
• DMX-512 protocol

Connections:
• 3-pin DMX Inputs/Outputs

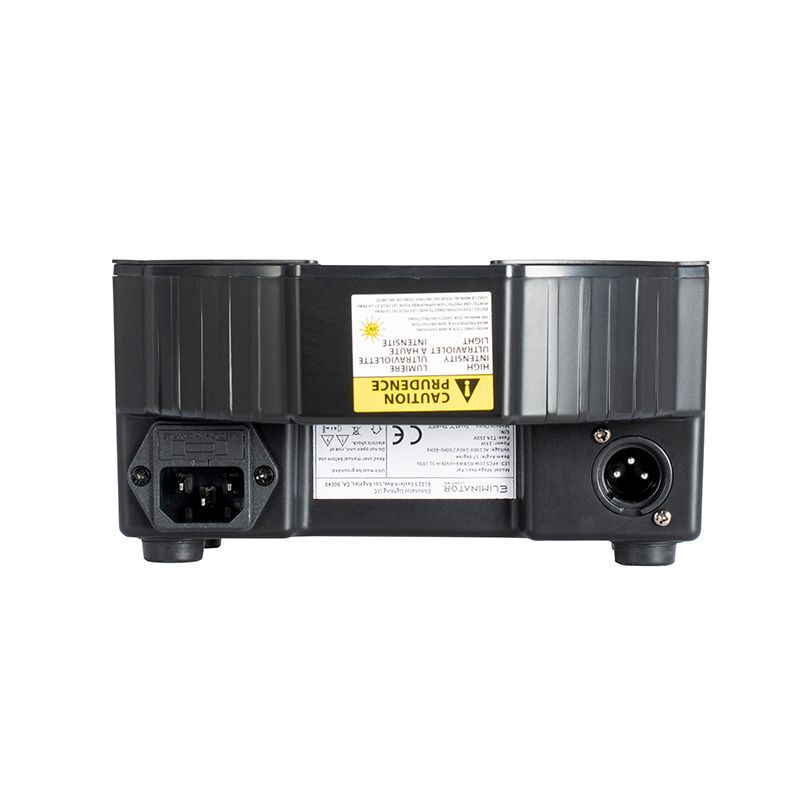

• IEC AC input and output on the side of the fixture to daisy chain the power (link up to 20 fixtures @120V, up to 40 fixtures @230V)
• With Wired Digital Communication Network

Electrical:
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power Draw: 24W Max

Dimensions / Weight:
• Dimensions (LxWxH): 7.0”x 9.1”x 6.6”/ 178x230x168mm
• Weight: 2.6 lbs./ 1.2 kg.

Included Items:

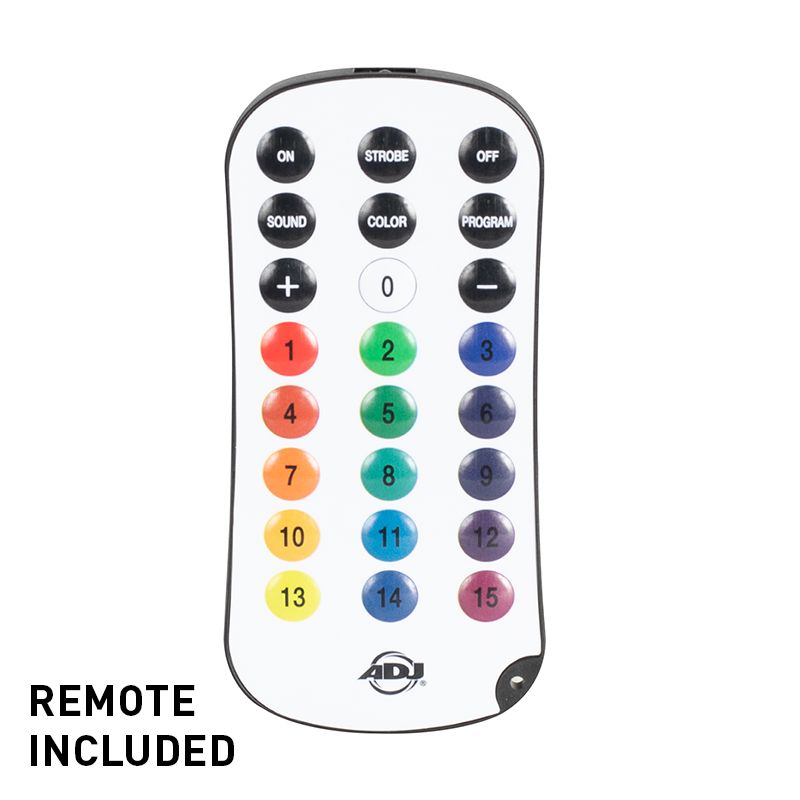

• Includes the ADJ UC IR24 wireless IR remote
• IEC Power Cord

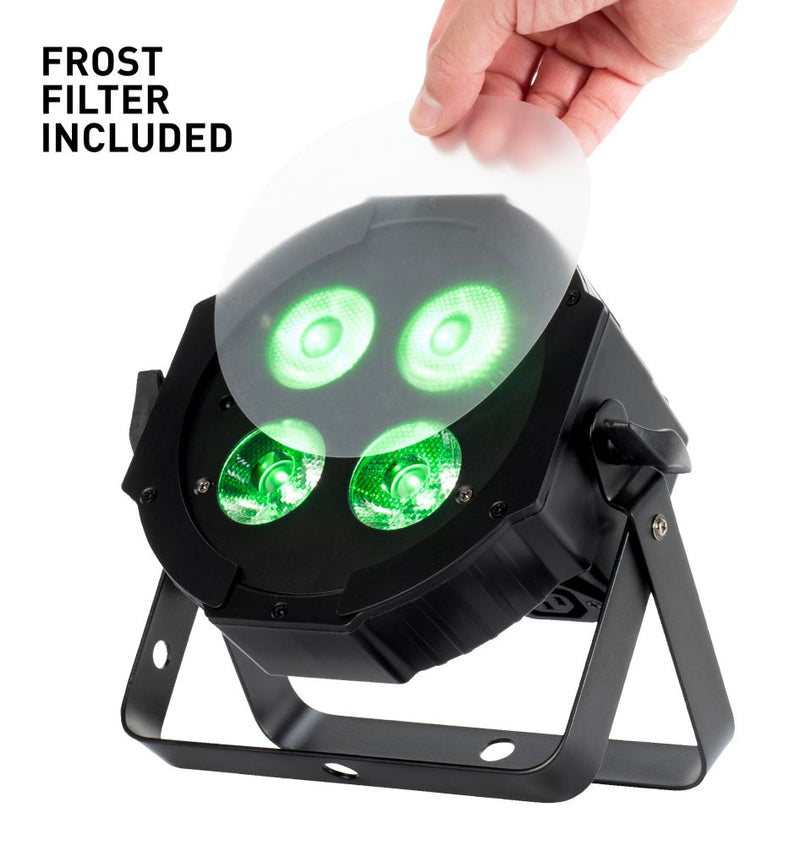

• 20-degree Frost Filter
• Safety cable
• Scissor yoke

Rating / Approvals:
• IP20
• ETL Approved (Control # 4002034)
• FCC Approved
• CE Compliant

*Specifications are subject to change without notice.
