Ultra Slim Custom LED Light Panel

Introducing our Ultra Slim Custom LED Light Panels – a cutting-edge lighting solution designed to bring out the natural beauty of granite, stone countertops, wall backsplashes, and more. These revolutionary edge-lit light panels are perfect for creating an even, soft glow in compact or narrow spaces while maintaining an ultra-slim profile.

With a thickness of just 1/4” to 3/8”, these panels deliver bright, uniform illumination without compromising on style or space. Whether you need accent lighting or a custom, embedded solution, our LED panels can be tailored to your exact needs.

No matter the application, our Ultra Slim LED Light Panels will enhance the ambiance of your space with smooth, customizable light. Whether you're working on a kitchen renovation, a new countertop installation, or a unique lighting project, these panels will provide the perfect solution.

Order Yours Today:

Contact us at 949-270-0250 or email sales@step1dezigns.com to place your order or for more information.

Bring your design vision to life with the elegance and versatility of our Ultra Slim Custom LED Light Panels.

Key Features

• Ultra Slim Profile: With a sleek thickness of only 1/4" to 3/8", these panels fit seamlessly into even the most compact spaces, providing a clean and modern look.

• Edge-Lit Technology: Revolutionary edge-lit panel design ensures even, bright illumination across the surface, without visible hotspots.

• Customizable Size & Color: Tailored to fit your specific application, panels can be customized in size, and color temperature options include 3000K, 4100K, 5300K, and 6500K to match your design needs.

• Laser-Etched Dot-Pattern Technology: Even light distribution with no gaps is achieved when face materials (such as stone, granite, or glass) are placed directly on top of the panels.

• Energy-Efficient & Long-Lasting: Designed to provide bright, high-quality illumination while minimizing energy consumption. Built to last for many years of use.

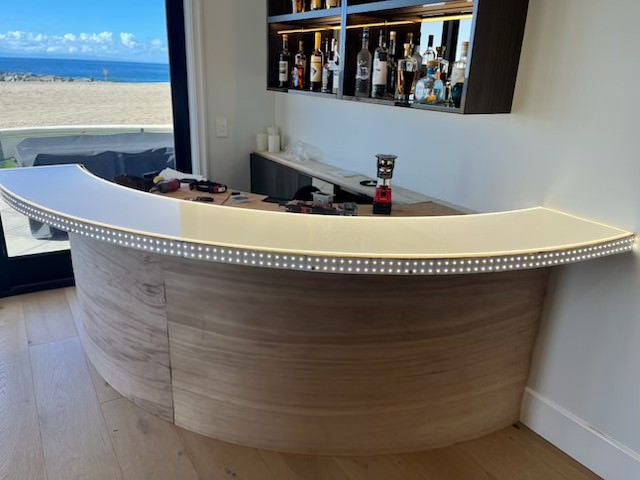

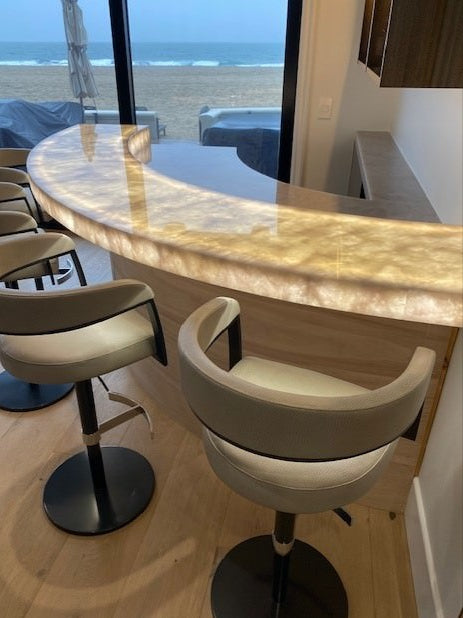

• Versatile Applications: Ideal for backlighting countertops, kitchen or bathroom wall backsplashes, under-cabinet lighting, and more. Perfect for both residential and commercial settings.

• Easy to Install: Designed for quick, easy integration into existing spaces, these panels can be mounted with minimal effort, ensuring a hassle-free setup.

Applications

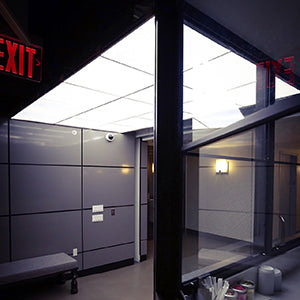

• Luminous Ceilings & Walls
• Luminous Shelving
• Backlighting
• Architectural Lighting (Interior & Exterior)
• Hospitality Lighting
• Cove Lighting
• Accent Lighting
• Task Lighting

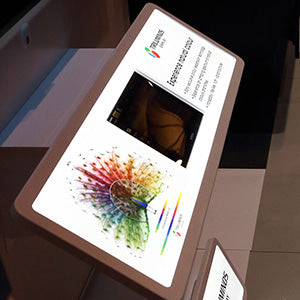

• Illuminated Custom Retail Fixtures & Displays
• Illuminated Signage & Branding
• Compact, Space-Sensitive Applications

Specifications

• • Max. Panel Size: 60” (1524mm) x 120” (3048mm) or Custom
  • Min. Panel Size: Any size less than the max.
  • Acrylic Thickness: 5/32” (4mm) or 15/64” (6mm)
  • Overall Thickness:
    • Widths < 2.5 ft (750mm): 1/4” (6.5mm)
    • Widths ≥ 2.5 ft (750mm): 3/8” (9.5mm)
  • Weight: 1.5 lbs per sq. ft. (7.32kg per sq. m.)
  • Operating Temperature: -22°F (-30°C) to 122°F (50°C)
  • Compliance & Regulatory Approval: UL, cUL, RoHS, CE, Lead-Free
  • Warranty: 3 years limited
  • Construction & Base Material: PMMA Acrylic, PET
  • Lamp Life: 50,000+ hours
  • Color Rendering Index (CRI/Ra): 80-90+

  • Standard Colors: 3000K, 4100K, 5300K, or 6500K
  • Custom Color Temperatures: Available upon request
  • Input Voltage: 12VDC or 24VDC
  • Power Consumption: Varies depending on panel size and selected strip configuration. (Note: Please use only with Class 2 Power Supply)
  • Wiring: Multiple light panels may share a single power supply when connected in parallel.
